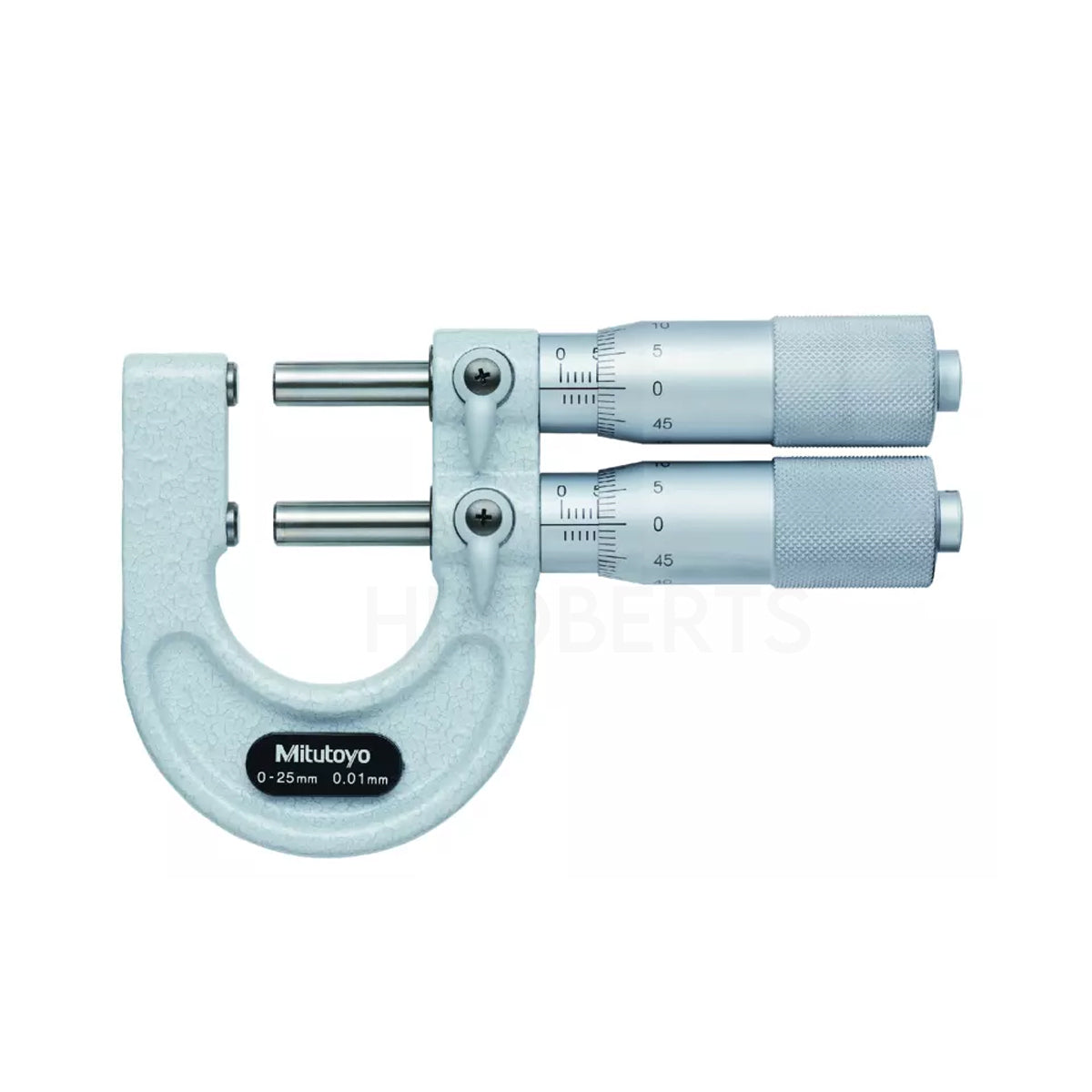

Mitutoyo 113-102 Limit Micrometer, Range 0-25mm, Graduation 0.01mm
SKU:Code: 113-102
Sale
Sold out
Regular price
£232.50
Save: 25%
Sold out
Sale price
£232.50
Regular price
£310.00
Excl. VAT
A dual, non-digital Mitutoyo micrometer arranged as a GO/NG adjustable snap gauge, able to test component size against upper and lower tolerance limits simultaneously.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Limit
- range 0-25mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- measuring face Carbide Tipped
description
description
| Model: |
LMM-25
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
0–25 mm
|
| Graduation: |
0,01 mm
|
| Max. Permissible Error E MPE: |
±3 µm
|
| Variation in length V MPE: |
3 µm
|
| Measuring face: |
Carbide-tipped micro-lap finish, with chamfer
|
| Measuring spindle: |
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 - 10 N
|
| Delivered: |
Including box, spanner
|
