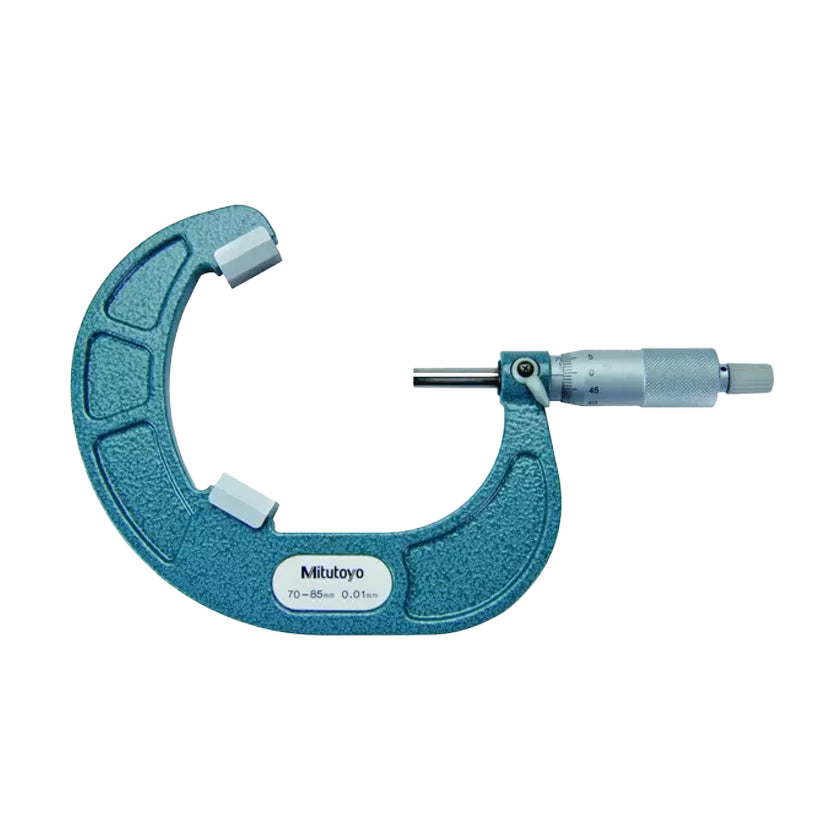

Mitutoyo 114-106 Three Flute V-Anvil Micrometer, Range 70-85mm, Graduation 0.01mm
SKU:Code: 114-106
Sale
Sold out
Regular price
£443.25
Save: 25%
Sold out
Sale price
£443.25
Regular price
£591.00
Excl. VAT
Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type V-Anvil
- range 70-85mm
- display type Non-Digital
- graduations 0.01mm
- accuracy ±7 μm
- measuring units Metric
- anvil 60 Degree
- brand Mitutoyo
description
description
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
