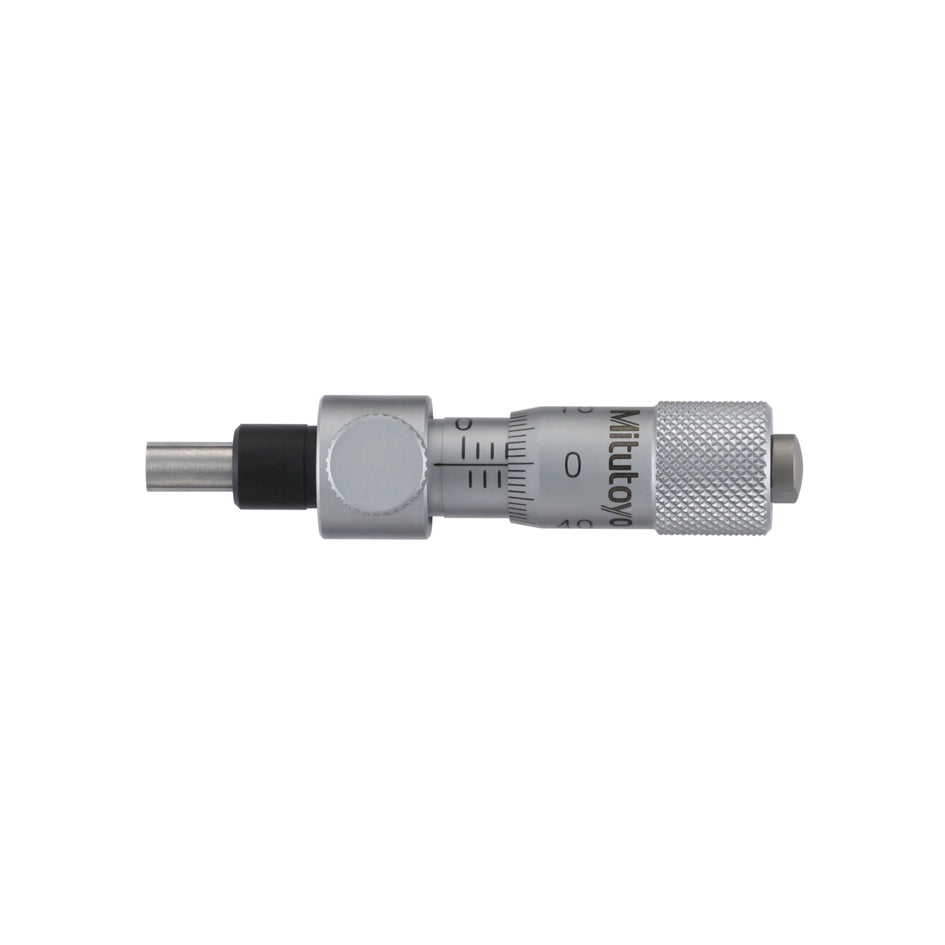

Mitutoyo 148-220 Locking Screw Micrometer Head, Range 0-6.5mm, Graduation 0.01mm
SKU:Code: 148-220
This item is no longer available or has been discontinued.
Locking screw provides secure locking at any position of the spindle. Position of the locking screw is the same as the sleeve index line.
Need more information? Ask a question or contact us.
Specification
Specification
- type Locking Screw
- range 0-6.5mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- spindle end Flat
- stem dia 6mm
- stem type Plain
- max permissible errors ±5 μm
- measuring face Hardened Steel
- brand Mitutoyo
description
description
A non-digital Mitutoyo micrometer head with plain Ø 6mm stem, flat spindle tip and spindle locking screw.

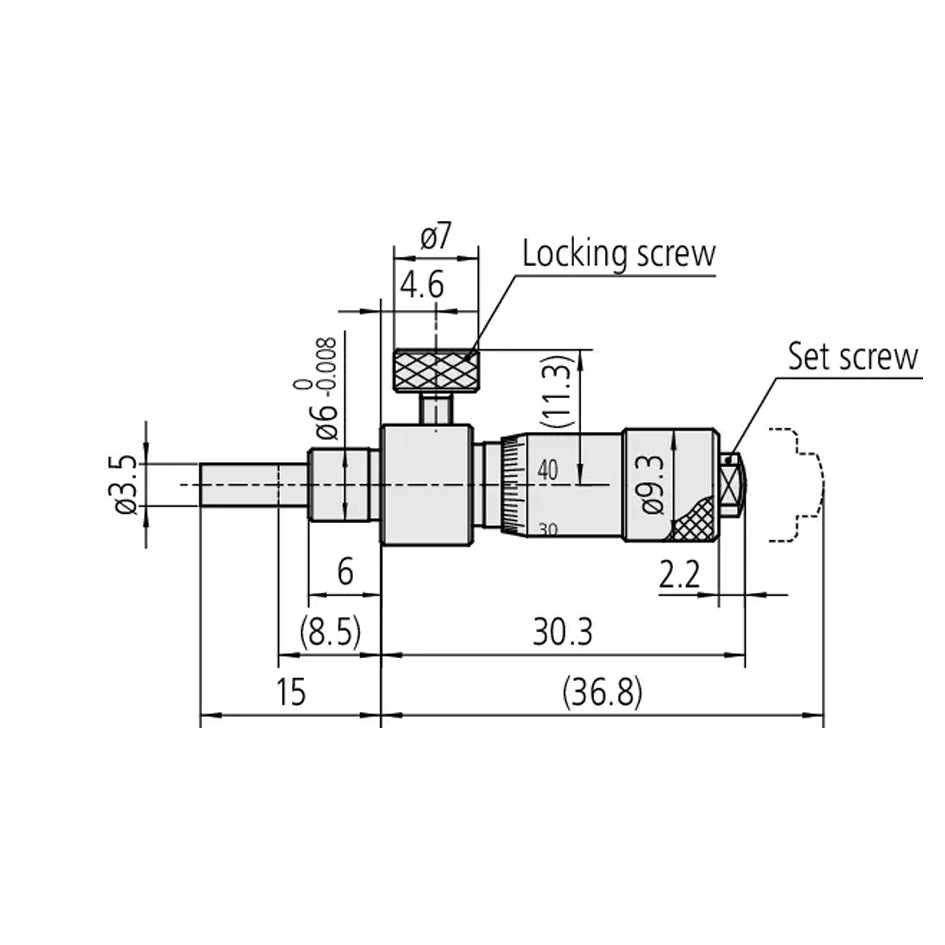

technical drawings
