Images are for illustration purposes only - Products may differ.

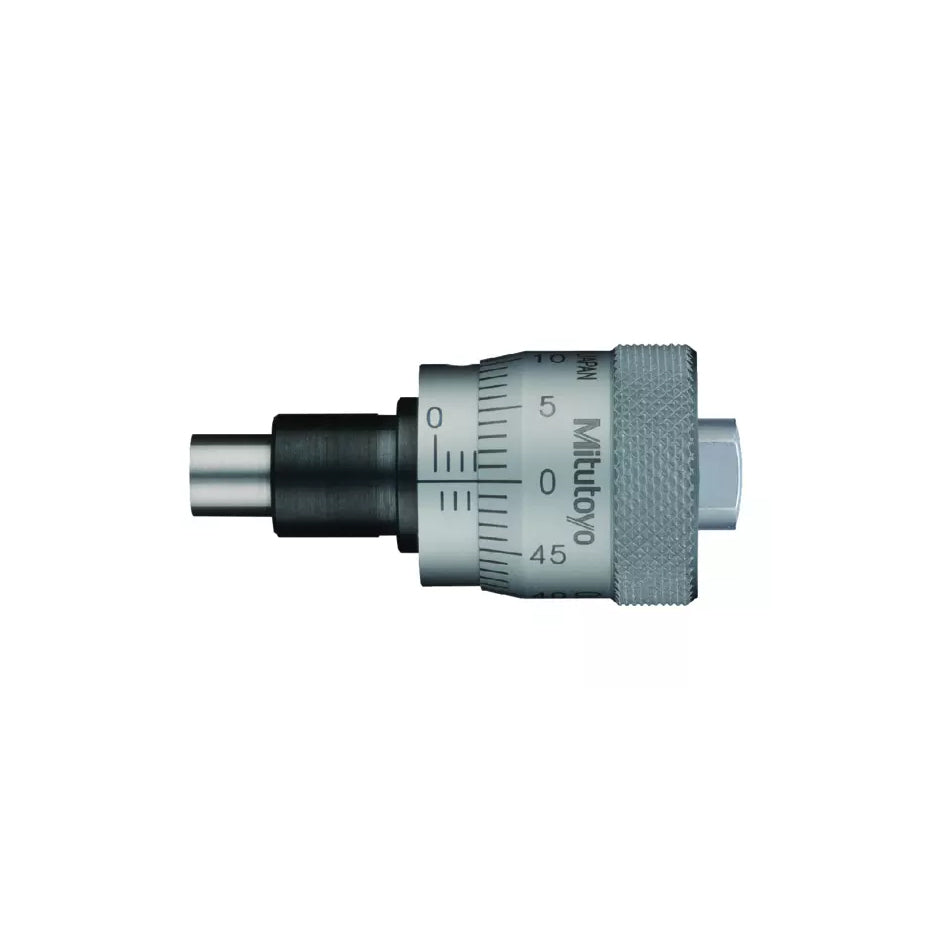

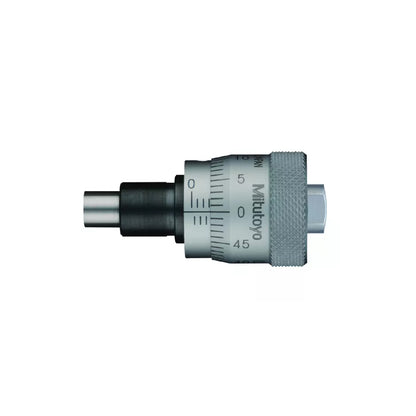

Mitutoyo 148-303 Short Body Micrometer Head, Range 0-6.5mm, Graduation 0.01mm
SKU:Code: 148-303
This item is no longer available or has been discontinued.
Short body design maintains measuring range for limited space applications.
Need more information? Ask a question or contact us.
Specification
Specification
- type Short Body
- range 0-6.5mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- spindle end Flat
- stem dia 9.5mm
- stem type Plain
- remarks 20mm Diameter Thimble
- max permissible errors ±2 μm
- measuring face Hardened Steel
- brand Mitutoyo
description
description
Short thimble type with thimble diameter options.

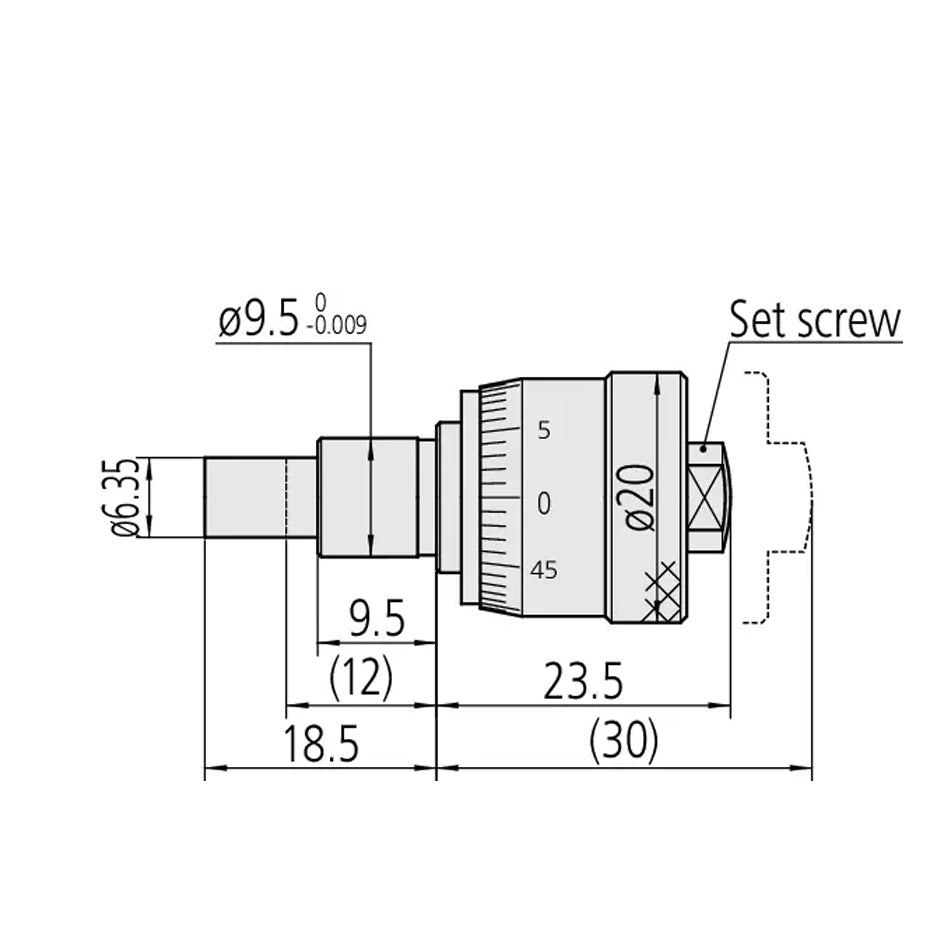

technical drawings
