Images are for illustration purposes only - Products may differ.
Mitutoyo

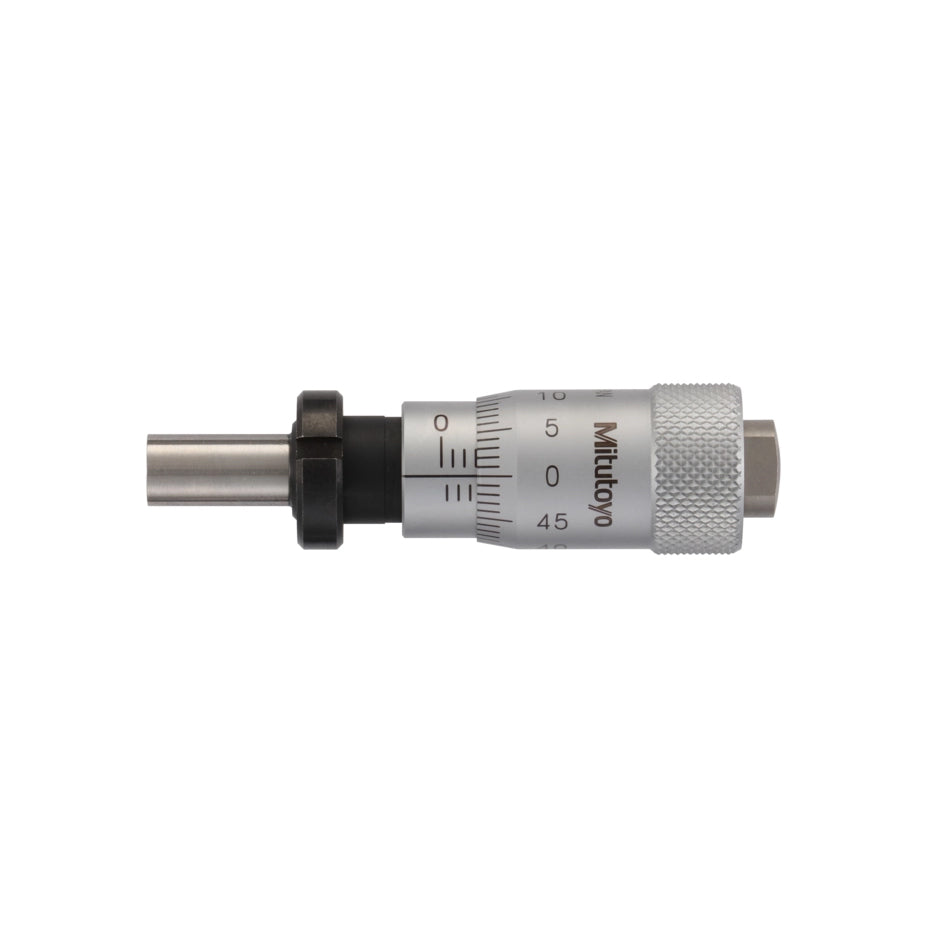

148-308 Short Body Micrometer Head, Range 0-6.5mm, Graduation 0.01mm
SKU:Code: 148-308
Sale
Sold out
Regular price
£63.00
Save: 25%
Sold out
Sale price
£63.00
Regular price
£84.00
Excl. VAT
Short body design maintains measuring range for limited space applications.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Short Body
- range 0-6.5mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- spindle end Flat
- stem dia 9.5mm
- stem type Locknut
- remarks 20mm Diameter Thimble
- max permissible errors ±2 μm
- measuring face Hardened Steel
description
description
More to Follow…

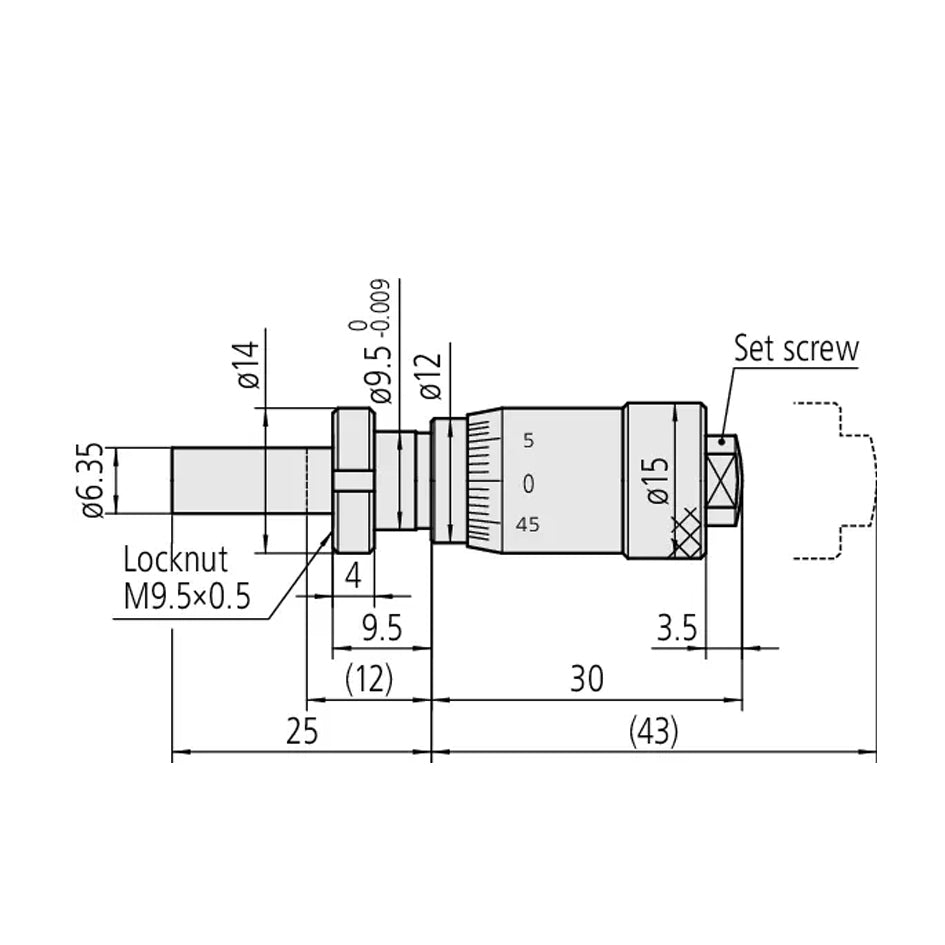

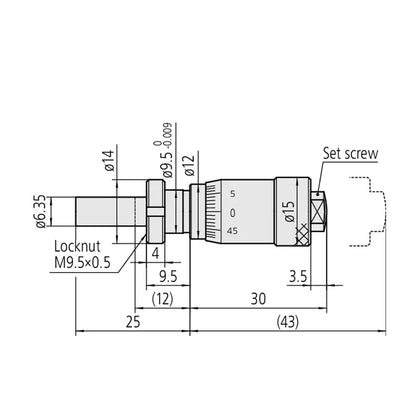

technical drawings
PDF downloads
accessories
