Mitutoyo 148-502 Adjustable Thimble Small Micrometer Head, Range 0-0.5", Graduation 0.001"
SKU:Code: 148-502
Sale
Sold out
Regular price
£50.18
Save: 25%
Sold out
Sale price
£50.18
Regular price
£66.90
Excl. VAT
The thimble can be set to zero at any position by loosening the setscrew.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Adjustable Thimble
- range 0-0.5"
- display type Non-Digital
- graduations 0.001"
- measuring units Imperial
- spindle end Flat
- stem dia 0.375"
- stem type Locknut
- remarks Standard
- max permissible errors ±0.0001"
- measuring face Hardened Steel
- brand Mitutoyo
description
description
A small, standard, zero-adjustable non-digital Mitutoyo micrometer head with M9.5 clamp-nut stem, flat spindle tip and concentric spindle lock.

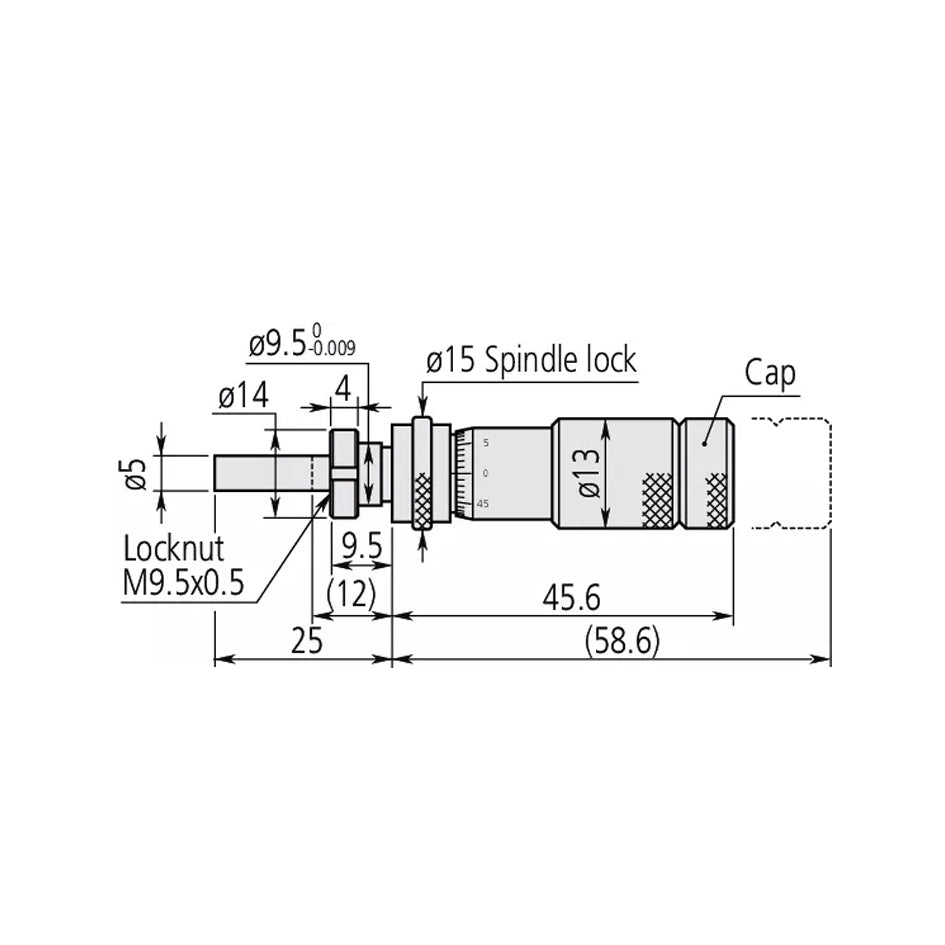

technical drawings
PDF downloads
accessories
