Images are for illustration purposes only - Products may differ.

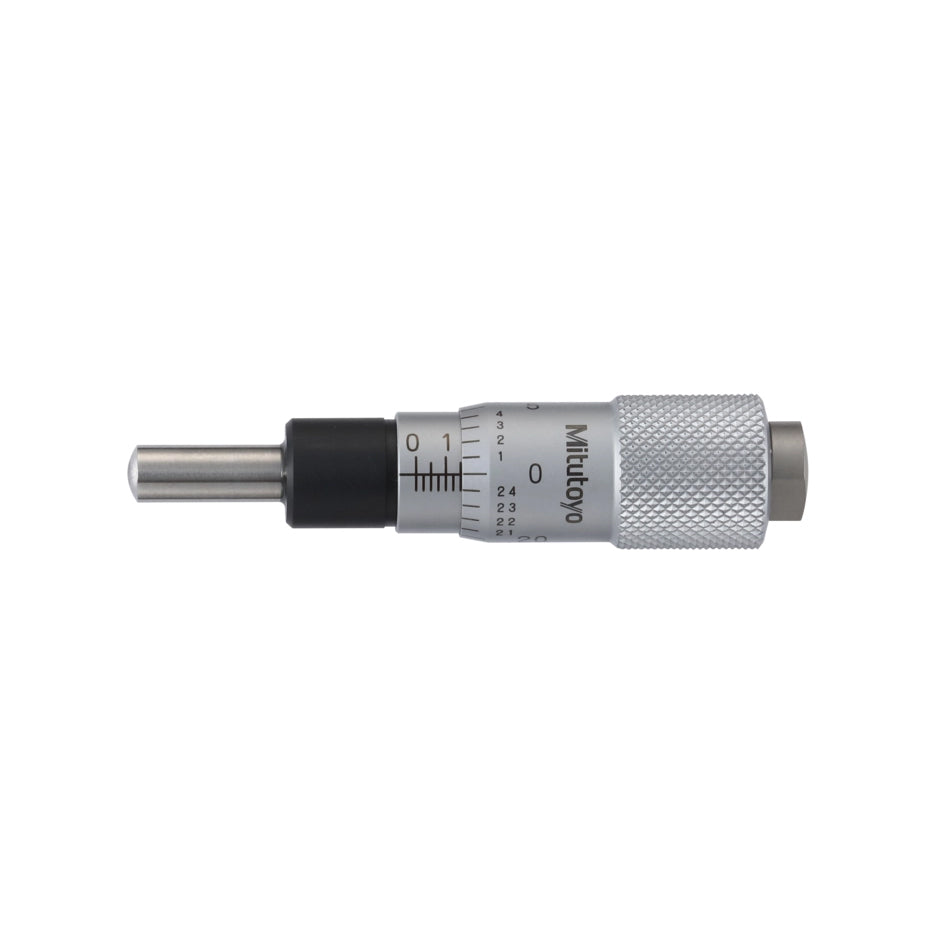

Mitutoyo 148-811 Small Micrometer Head, Range 0-0.5", Graduation 0.001"
SKU:Code: 148-811
This item is no longer available or has been discontinued.
Short body design maintains measuring range for limited space applications.
Need more information? Ask a question or contact us.
Specification
Specification
- type Small
- range 0-0.5"
- display type Non-Digital
- graduations 0.001"
- measuring units Imperial
- spindle end Spherical
- stem dia 0.375"
- stem type Plain
- remarks Standard
- max permissible errors ±0.0001"
- measuring face Hardened Steel
- brand Mitutoyo
description
description
This is a standard, small-sized micrometer head which offers you the following benefits:
- Plain stem and a flat or spherical spindle end
- Hardened steel measuring surface

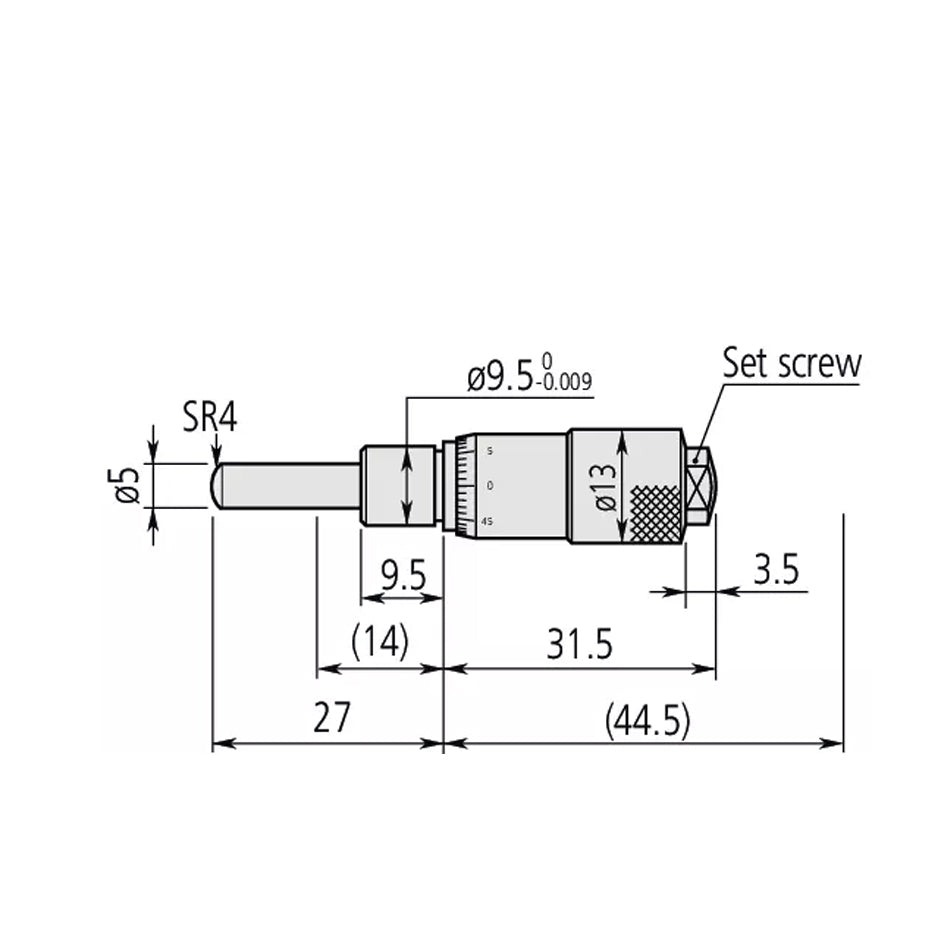

technical drawings
PDF downloads
accessories
