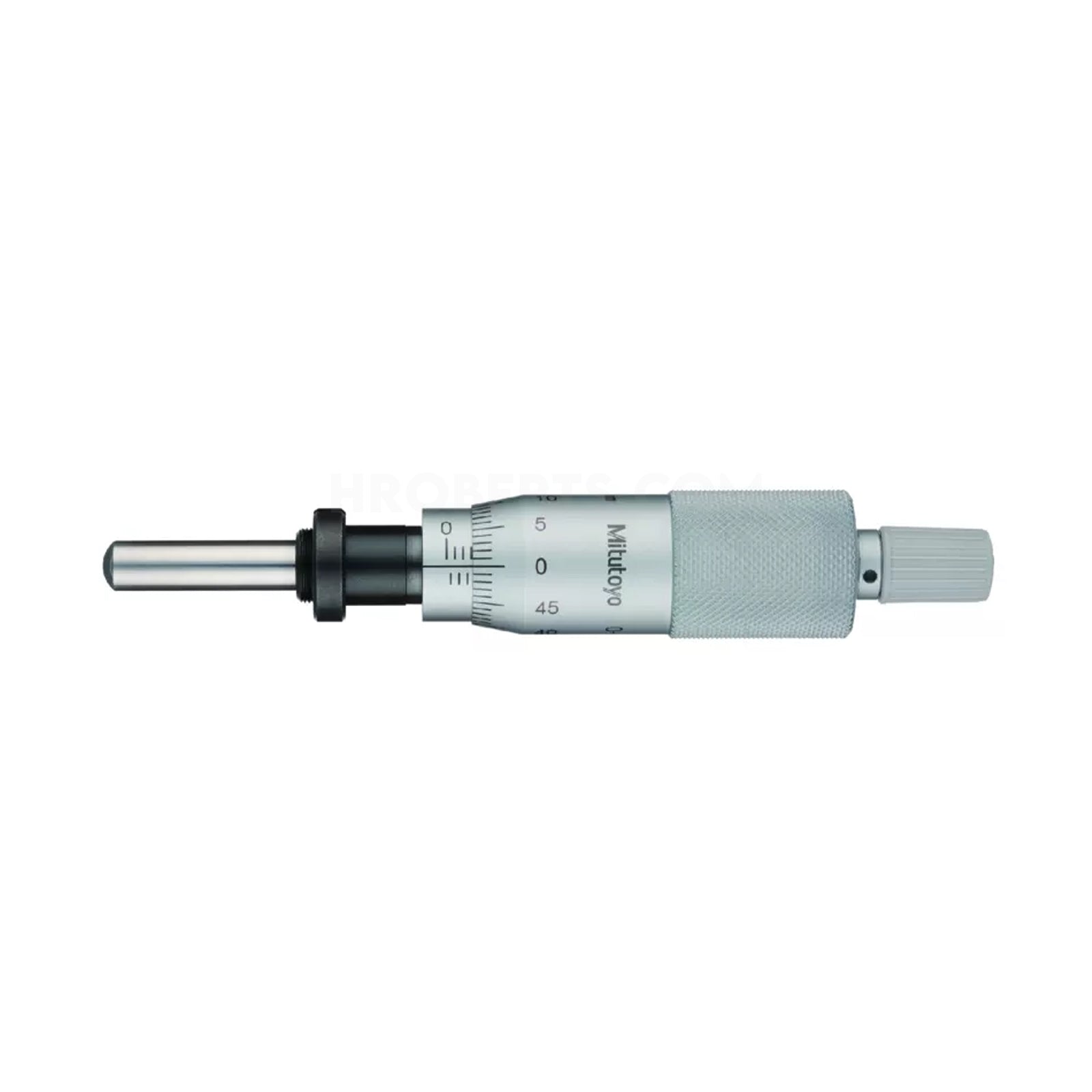

Mitutoyo 150-802 Standard Micrometer Head, Range 0-25mm, Graduation 0.01mm
SKU:Code: 150-802
Sale
Sold out
Regular price
£42.98
Save: 25%
Sold out
Sale price
£42.98
Regular price
£57.30
Excl. VAT
Carbide-tipped spindle provides high abrasion resistance.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- spindle end Spherical
- stem dia 10mm
- stem type Locknut
- remarks Standard
- max permissible errors ±2 μm
- measuring face Carbide Tipped
- brand Mitutoyo
description
description
A medium sized, standard, non-digital Mitutoyo micrometer head with M9.5 clamp-nut stem and spherically radiused tungsten-carbide spindle tip.
