Mitutoyo

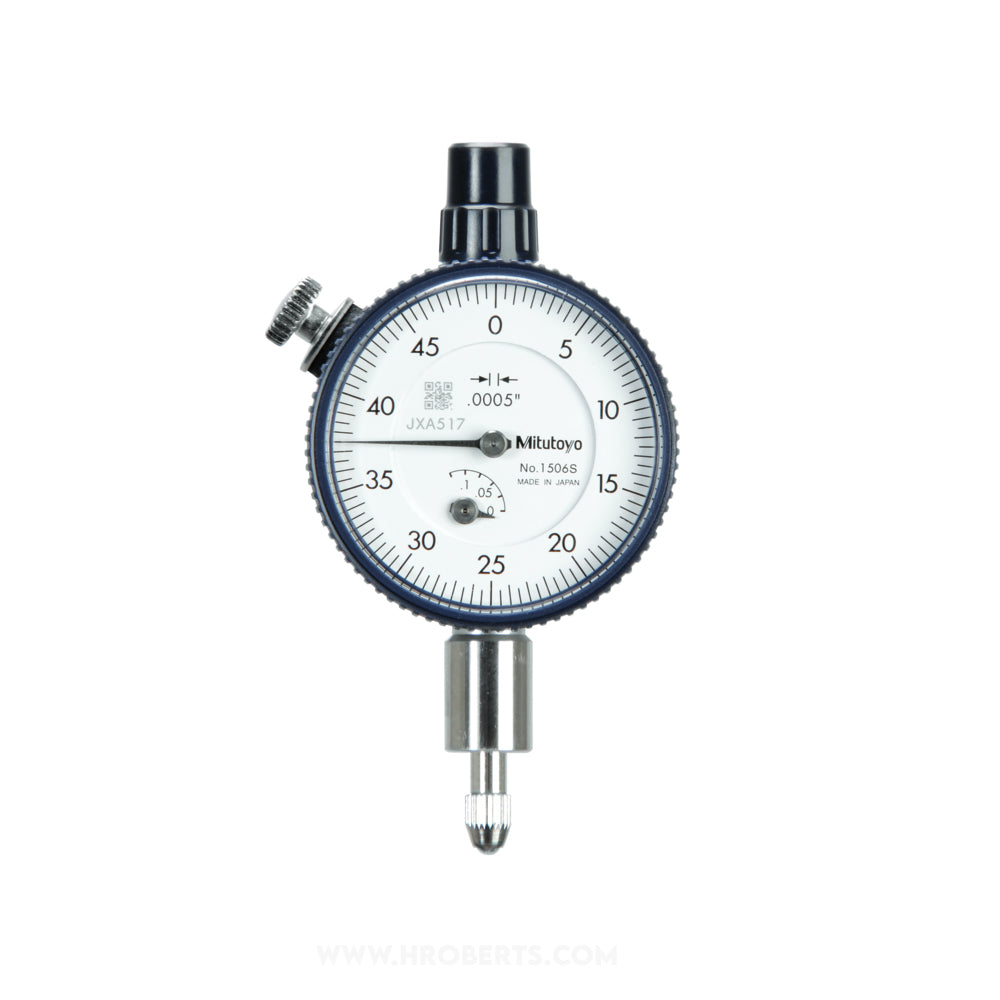

1506A Dial Indicator, Graduation 0.0005", Range 0.125", Scale 0-50, Bezel Diameter 1.57"

SKU:Code: 1506A

Sale Sold out Regular price £66.90
Save: 25% Sold out Sale price £66.90 Regular price £89.20
Excl. VAT
Series 1 Compact dial indicators ideal for restricted-space applications in gauging jigs. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Dial Indicator
  • range 0.125"
  • range rev 0.5"
  • display type Non-Digital
  • graduations 0.0005"
  • bezel dia 1.57"
  • measuring force 1.4 N or Less
  • measuring units Imperial
  • stem dia 0.375"
  • remarks Dial Gauge Series 1
  • scale 0-50
  • contact point thread 4-48UNF
  • back Centre Lug
description

Compact dial indicators ideal for restricted-space applications in gauging jigs. The bezel clamp 21AZB149, lifting lever and Limit Hands ( 2 pcs ) 21AAB363 which are all optional. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration. The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy duty use. A carbide contact point is used. Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
