Mitutoyo 151-222 Standard Micrometer Head, Range 0-25mm, Graduation 0.001mm
SKU:Code: 151-222
Sale
Sold out
Regular price
£65.48
Save: 25%
Sold out
Sale price
£65.48
Regular price
£87.30
Excl. VAT
Larger spindle for heavy-duty applications. Carbide-tipped spindle provides high abrasion resistance.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm
- display type Non-Digital
- graduations 0.001mm
- measuring units Metric
- spindle end Flat
- stem dia 12mm
- stem type Plain
- remarks With Vernier
- max permissible errors ±2 μm
- measuring face Carbide Tipped
- brand Mitutoyo
description
description

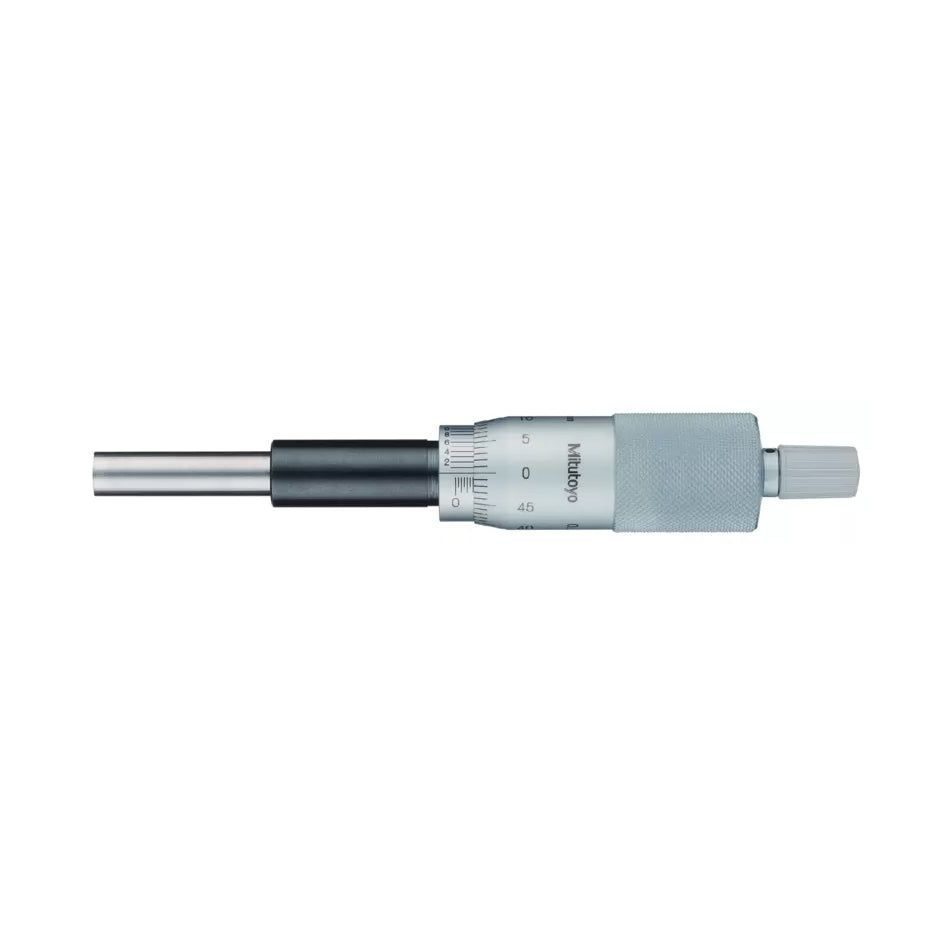

A medium sized, standard, high resolution, non-digital Mitutoyo micrometer head with plain stem and heavy-duty Ø 8mm spindle fitted with flat tungsten-carbide tip. Ratchet stop.

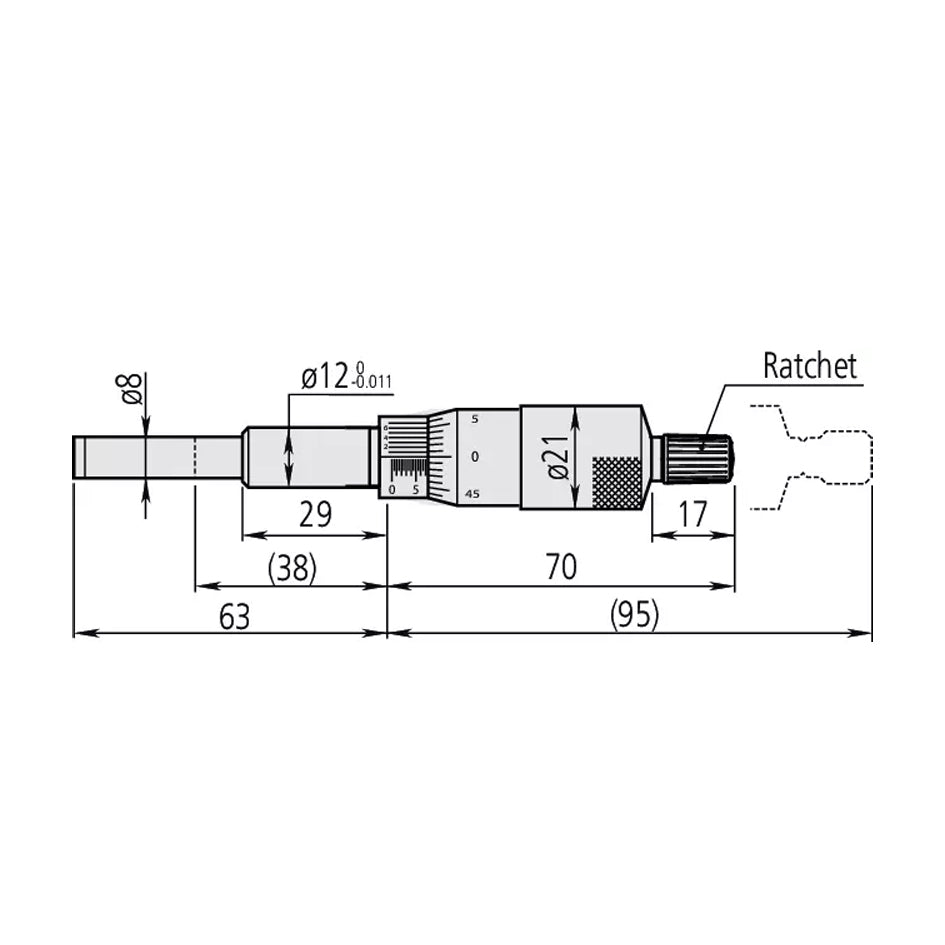

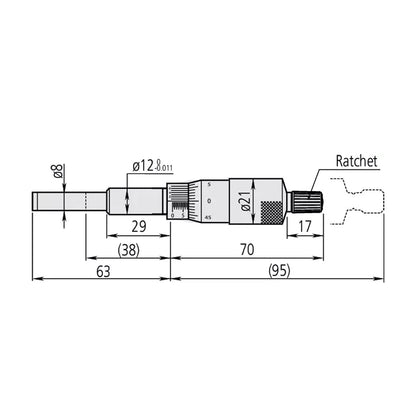

technical drawings
