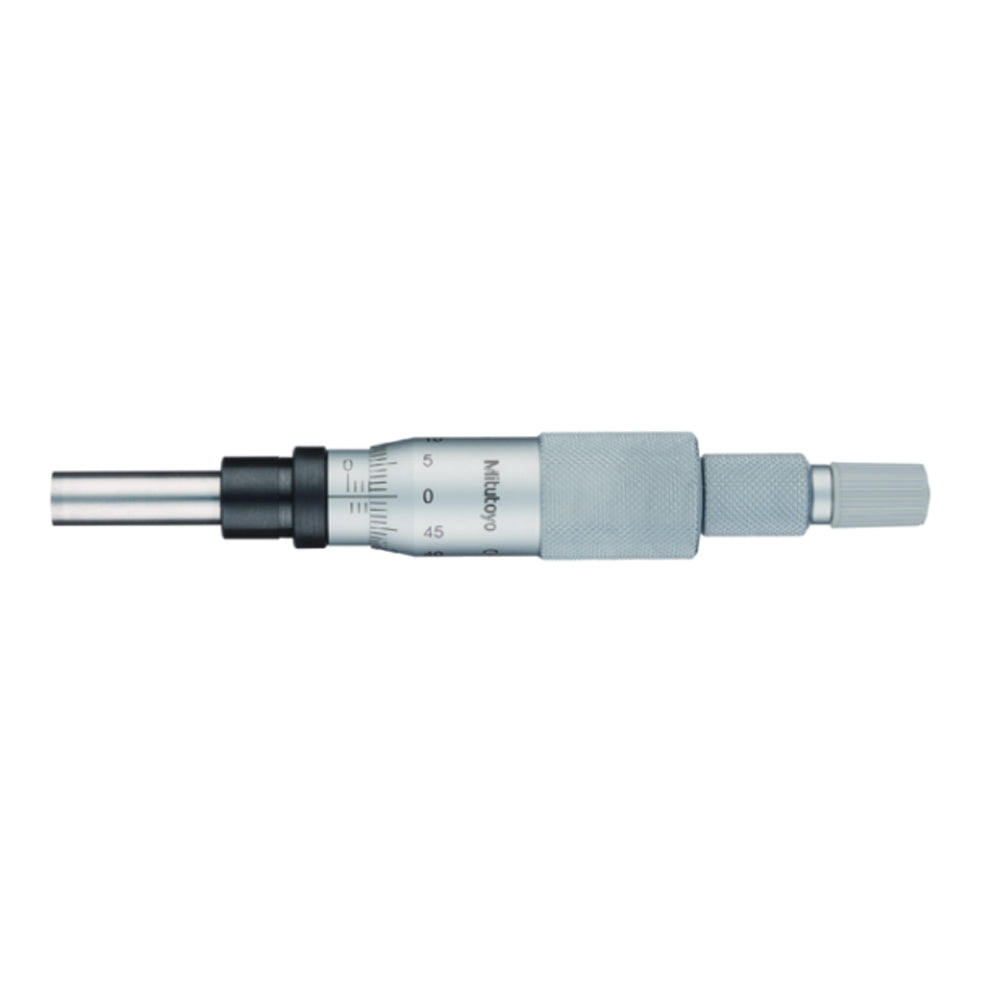

Mitutoyo 153-201 Standard Micrometer Head, Range 0-25mm, Graduation 0.01mm
SKU:Code: 153-201
Sale
Sold out
Regular price
£108.00
Save: 25%
Sold out
Sale price
£108.00
Regular price
£144.00
Excl. VAT
Non-Rotating Carbide-Tipped Spindle Micrometer Head. Torsion-free feed reduces workpiece deformation and wear. Carbide-tipped spindle provides high abrasion resistance.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm
- display type Non-Digital
- graduations 0.01mm
- measuring units Metric
- spindle end Flat
- stem dia 12mm
- stem type Plain
- max permissible errors ±3 μm
- measuring face Carbide Tipped
- brand Mitutoyo
description

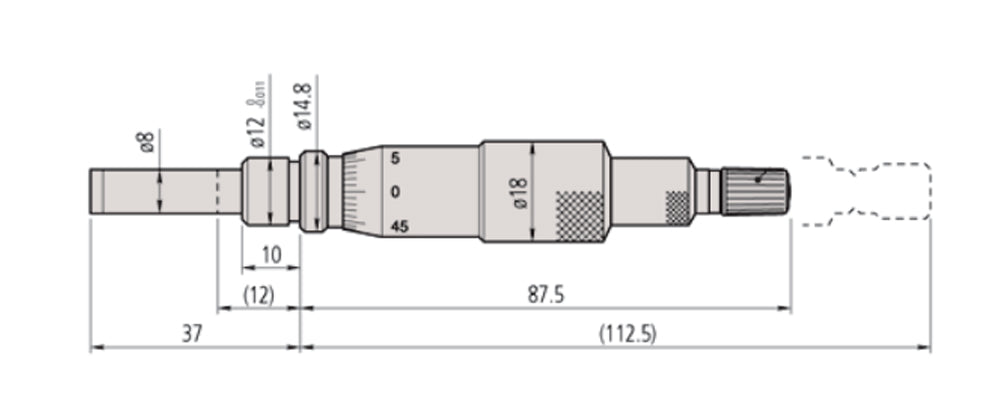

technical drawings
PDF downloads
description
A non-digital Mitutoyo micrometer head with plain 12mm stem and heavy-duty 8mm non-rotating spindle fitted with flat tungsten-carbide tip.
technical drawings
PDF downloads
accessories
