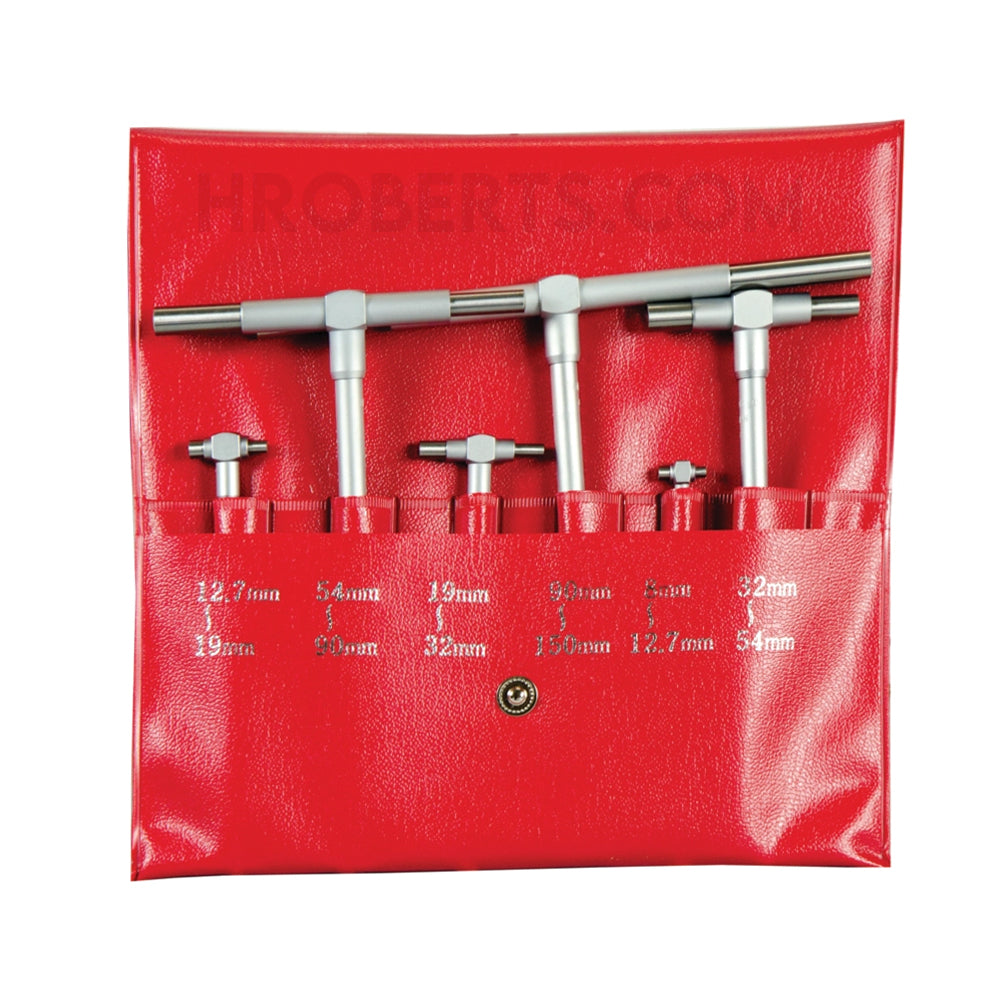

Mitutoyo 155-905 Telescoping Gauge 8-150mm
SKU:Code: 155-905
Sale
Sold out
Regular price
£171.75
Save: 25%
Sold out
Sale price
£171.75
Regular price
£229.00
Excl. VAT
Range:
8-12,7 mm
12,7-19 mm
19-32 mm
32-54 mm
54-90 mm
90-150 mm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 8-150mm
- brand Mitutoyo
description
description
A set of six Mitutoyo transfer gauges that enables the diameter of holes, bores or grooves to be measured with outside micrometers or calipers. In operation the spring loaded plunger of a gauge is allowed to expand within the feature to be measured and then locked in place using the knurled rotary control on the end of the handle. In practice some manipulation is necessary to ensure that the minimum size has been captured, after which the gauge is carefully withdrawn so that the dimension across the contact surfaces can be measured.
