Mitutoyo

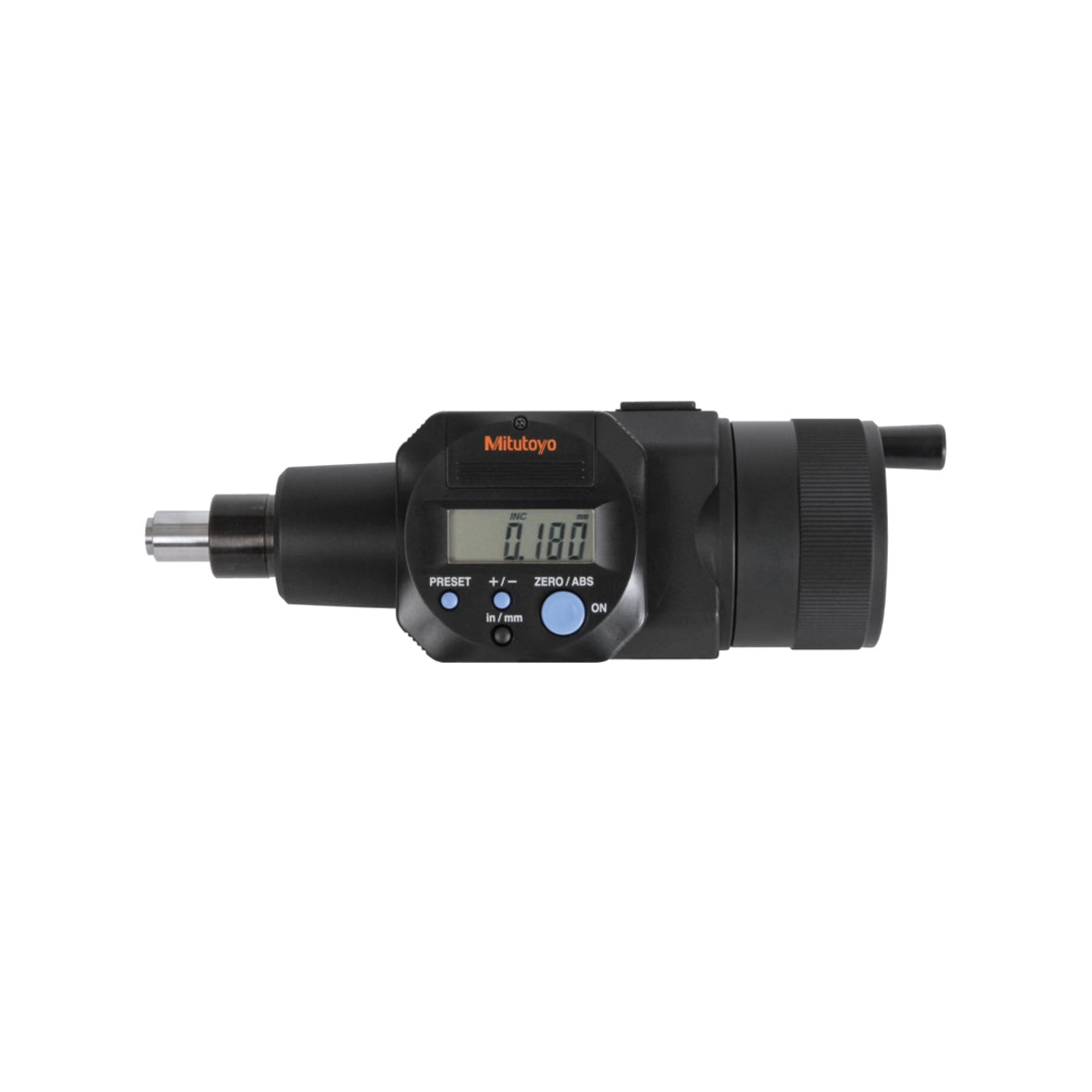

164-164 Digimatic Digital Rotatable Micrometer Head, Range 0-50mm / 0-2", Resolution 0.001mm / 0.00005"
SKU:Code: 164-164
Sale
Sold out
Regular price
£666.75
Save: 25%
Sold out
Sale price
£666.75
Regular price
£889.00
Excl. VAT
A Mitutoyo digital, non-rotating spindle micrometer head with plain Ì÷.71" stem and flat spindle tip. The display is rotatable for viewing convenience. Digimatic data output.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-50mm / 0-2"
- display type Digital
- resolution 0.001mm / 0.00005"
- data output Yes
- measuring units Metric / Imperial
- spindle end Flat
- stem dia 18mm
- stem type Plain
- max permissible errors ±3 μm (±0.00015")
- auto power Yes - On/Off
- measuring face Carbide Tipped
- origin point setting Yes
- error alarm Yes
description
description
The display is rotatable to enable easy reading from practically any direction. This feature is especially useful in XY-table applications. The Digimatic output port enables inclusion in a statistical process control or networked measurement system. Non-rotating spindle.

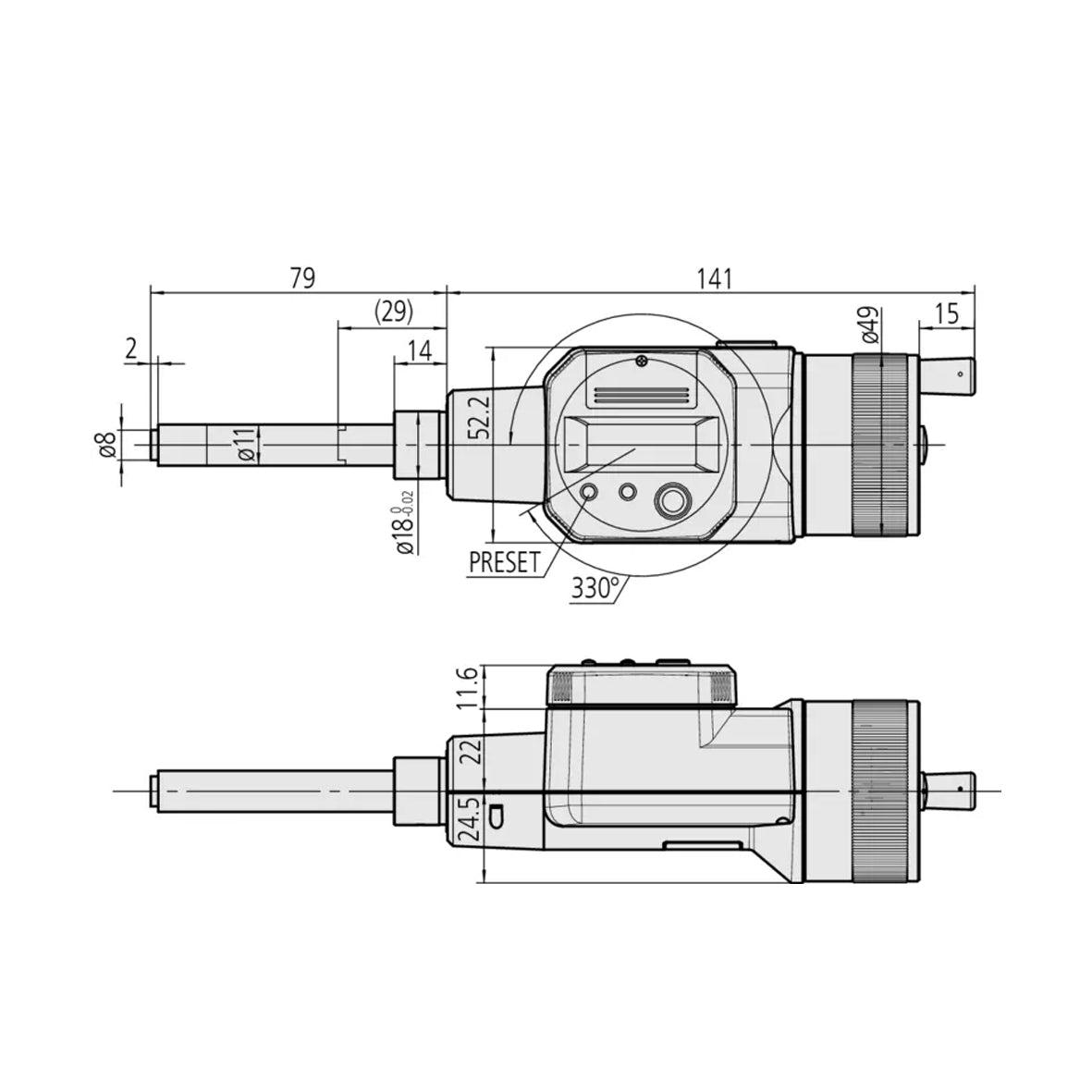

technical drawings
