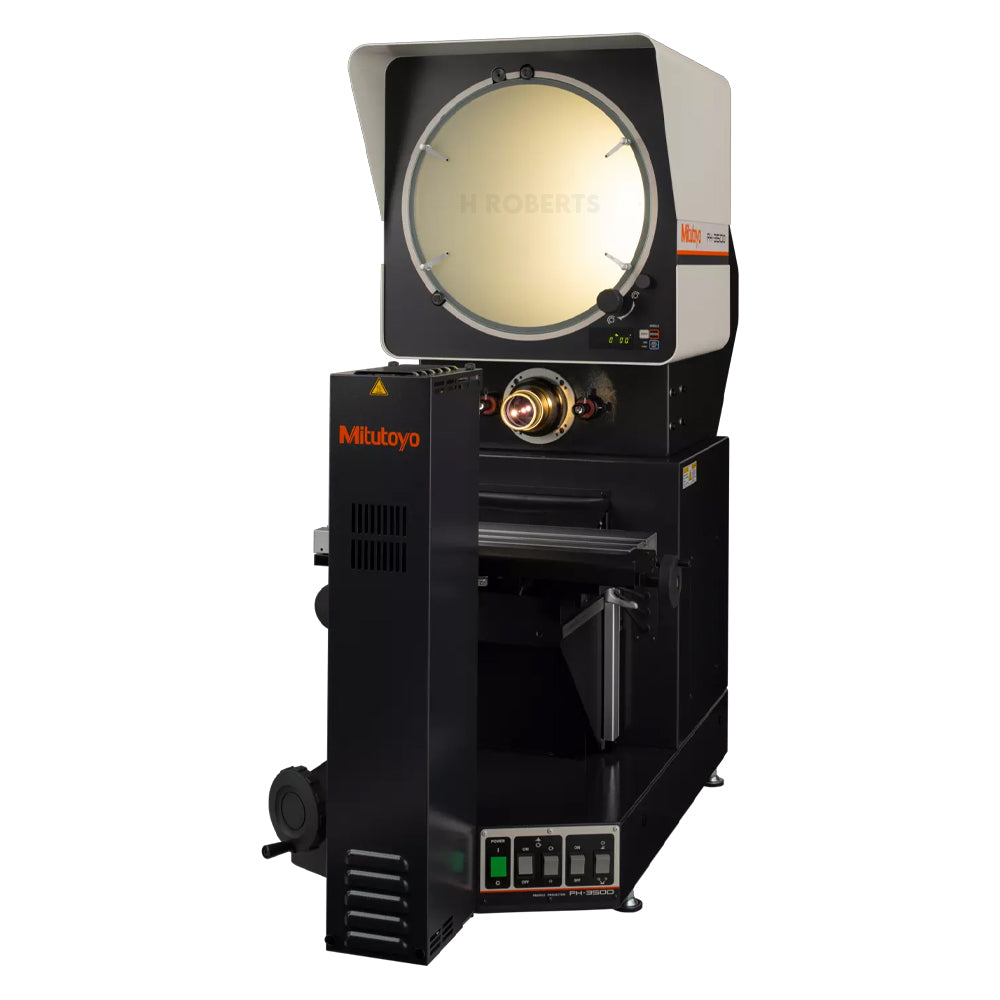

Mitutoyo 172-868-12 PH-3515F Measuring Projector XY Stage Travel Range 254 x 152mm
SKU:Code: 172-868-12
Sale
Sold out
Regular price
£10,611.00
Save: 10%
Sold out
Sale price
£10,611.00
Regular price
£11,790.00
Excl. VAT
Bench-top model based on a horizontal optical system.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- resolution 0.001mm
- mass 150 kg
- xy stage size Top Size 450x146mm
- xy stage travel range 254x152.4mm
- projection lens 10X (172-402)
- maximum stage loading 45kg
description
description
- Due to the PH-3515F’s horizontal-beam illumination, you can easily measure larger and heavier workpieces including toothed racks and punching tools.
- You can use the projector for a wide range of applications due to its generous 254 x 152 mm stage travel and 45 kg allowable stage loading.
-
Effective diameter: 353 mm
-
Screen material: Fine-ground glass
-
Screen rotation: ±360°, fine feed and clamp
-
Angle display: Digital counter (LED)
-
Resolution: 1' or 0.01° (switchable)
-
Range: ±370°ABS/INC mode switching, Zero Set
- Reference lines : Cross-hairs

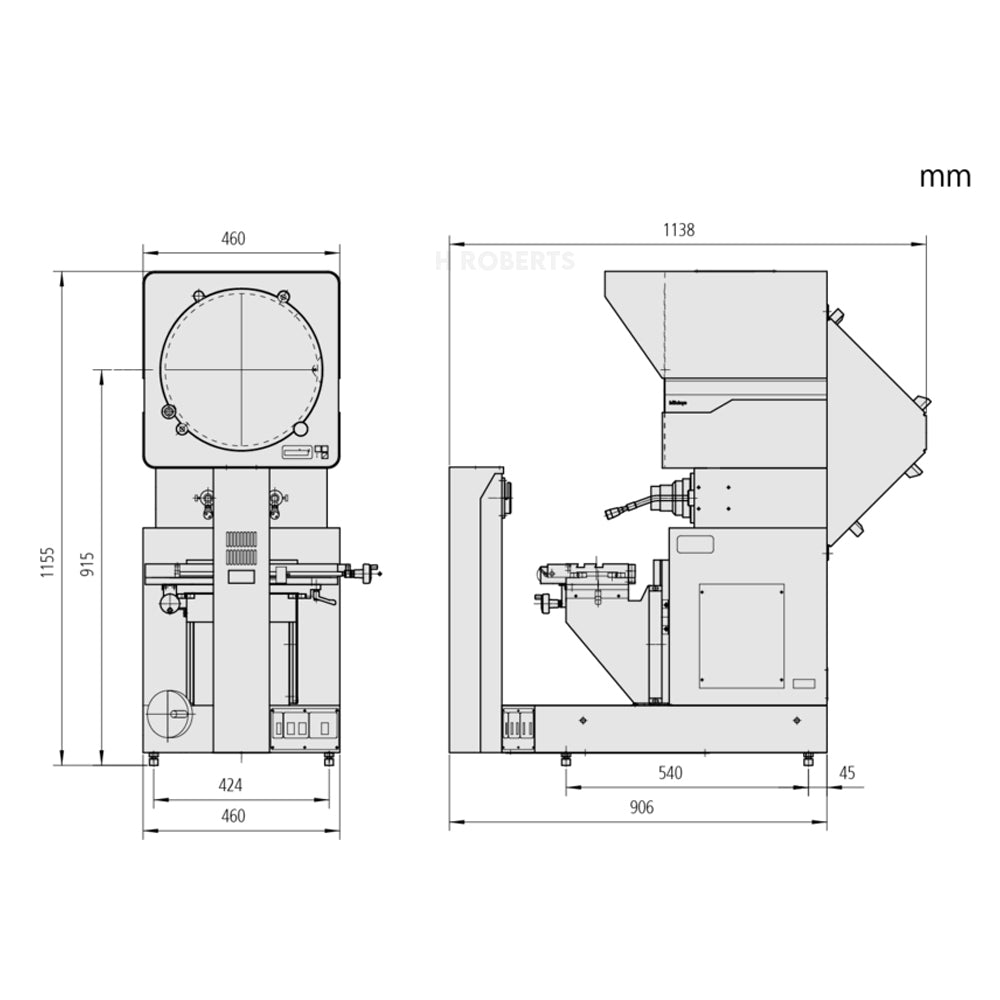

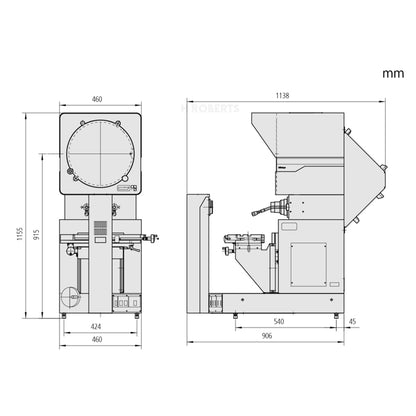

technical drawings
