Mitutoyo

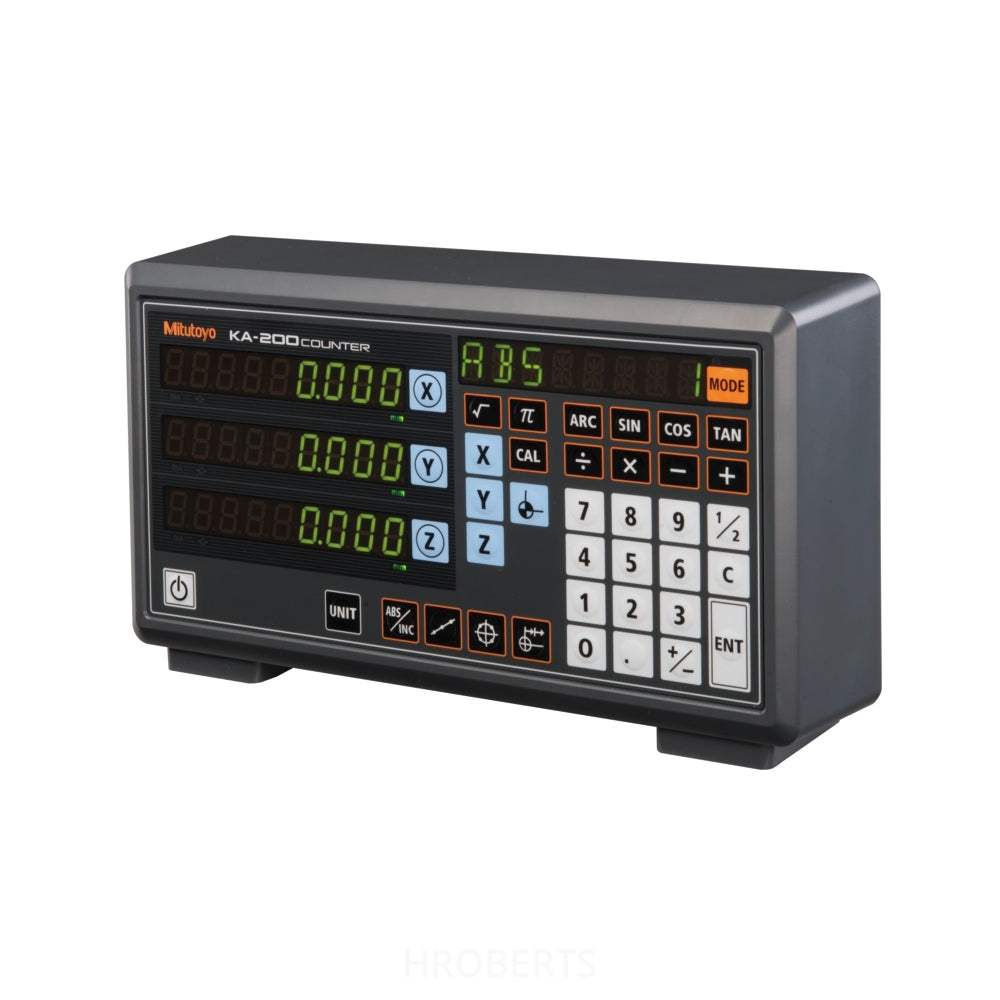

174-185E Multifunction Display KA-213, Resolution 0.05 - 0.0001mm (AT100 Series) 0.01 - 0.001mm (AT715 Series), Scale Input Ports 3

SKU:Code: 174-185E

Sale Sold out Regular price £580.50
Save: 10% Sold out Sale price £580.50 Regular price £645.00
Excl. VAT
The KA Counter can be used a standard counter or a lathe counter by modifying parameters. Can be used with both the AT100 series optical scales and the AT715 electromagnetic induction scale. Text data can be output using the optional USB interface. The optional external RS-232C interface enables connection to a PC and a printer.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Multifunction Display KA-213
  • display type Digital
  • resolution 0.05 - 0.0001mm (AT100 Series) 0.01 - 0.001mm (AT715 Series)
  • data output Yes
  • measuring units Metric
  • mass 1.3 kg
  • dimensions 300 (W) x 70 (D) x 167 (H) mm
  • number of inputs 3
description

Functions: Zero-setting, preset, resolution setting, measurement direction setting, mm/inch conversion, diameter display, scale reference point setting *1, 1/2 calculation, coordinate system switching, bolt-hole circle machining*2, pitch machining, zero approach
machining (inc mode), addition of 2-scale data*3, linearity error compensation, pitch error compensation*1, smoothing, memory backup, lower digit blanking out, external zerosetting* 4, RS-232C interface unit*4, USB output*5, error message. *1 Only available when connecting with AT100 series. *2 Not available in single-axis use. *3 Only available for 3-axis model. *4 Code out unit (06AET993) is required. *5 Text can be output by interface unit and footswitch.
