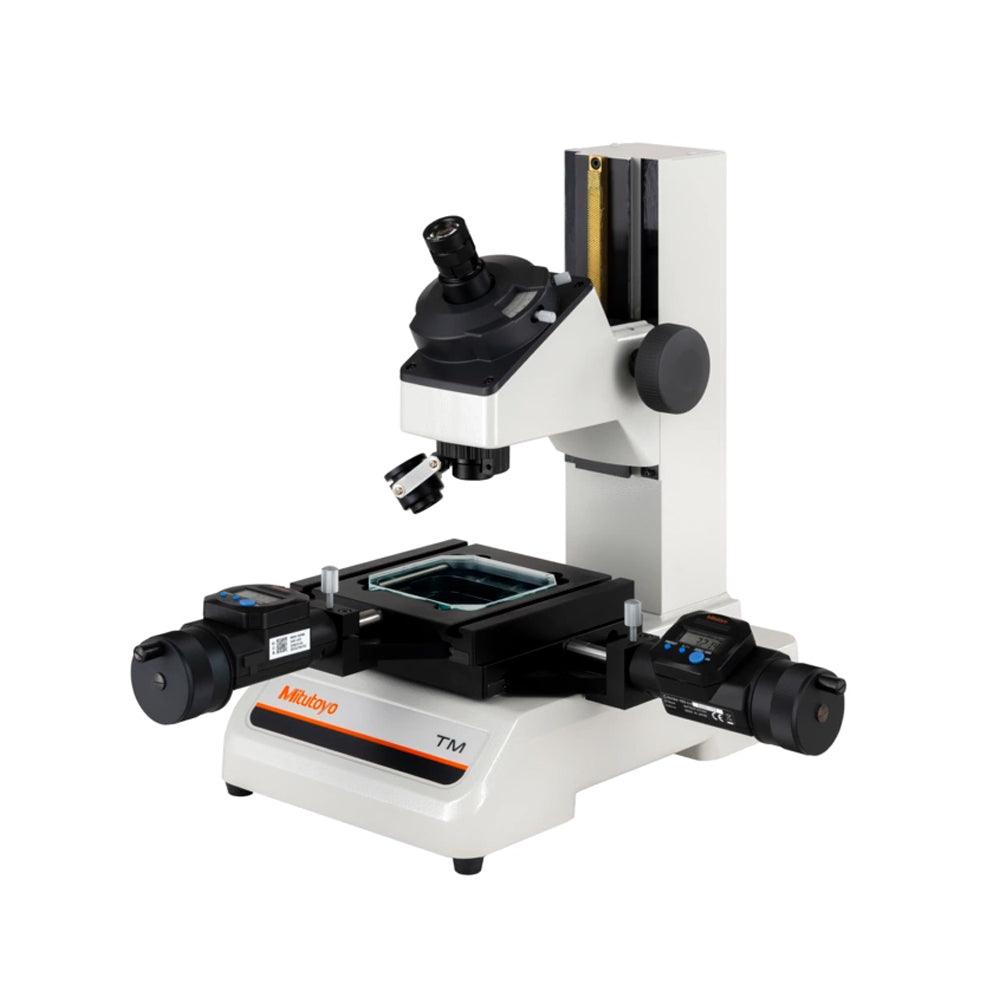

Mitutoyo 176-818E TM-505B Toolmaker Microscope, XY Stage Travel Range 50 x 50 mm, XY Stage Size 152 x 152mm

SKU:Code: 176-818E

Sale Sold out Regular price £3,087.00
Save: 10% Sold out Sale price £3,087.00 Regular price £3,430.00
Excl. VAT
The Mitutoyo TM Series is a toolmakers' microscope well suited for measuring dimensions and angles of workpiece features. It can also be used to check the shape of screws and gears by inserting an optional reticle in the eyepiece
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Toolmaker Microscopes
  • brand Mitutoyo
description

The Mitutoyo TM Series is a toolmakers' microscope well suited for measuring dimensions and angles of workpiece features. It can also be used to check the shape of screws and gears by inserting an optional reticle in the eyepiece. The compact body makes it ideal for use on shop floors that have very limited space for measuring instruments. Angle measurement is performed easily by turning the angle scale to align the cross-hair reticle with the image of the edges that define a workpiece feature. Illumination intensity can be adjusted to suit the reflectance of the surface of the feature under investigation
