Mitutoyo 176-819-11 TM-1005B Toolmaker Microscope, XY Stage Travel Range 100 x 50 mm, XY Stage Size 240 x 152mm
SKU:Code: 176-819-11
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Toolmaker Microscopes
- mass 15kg

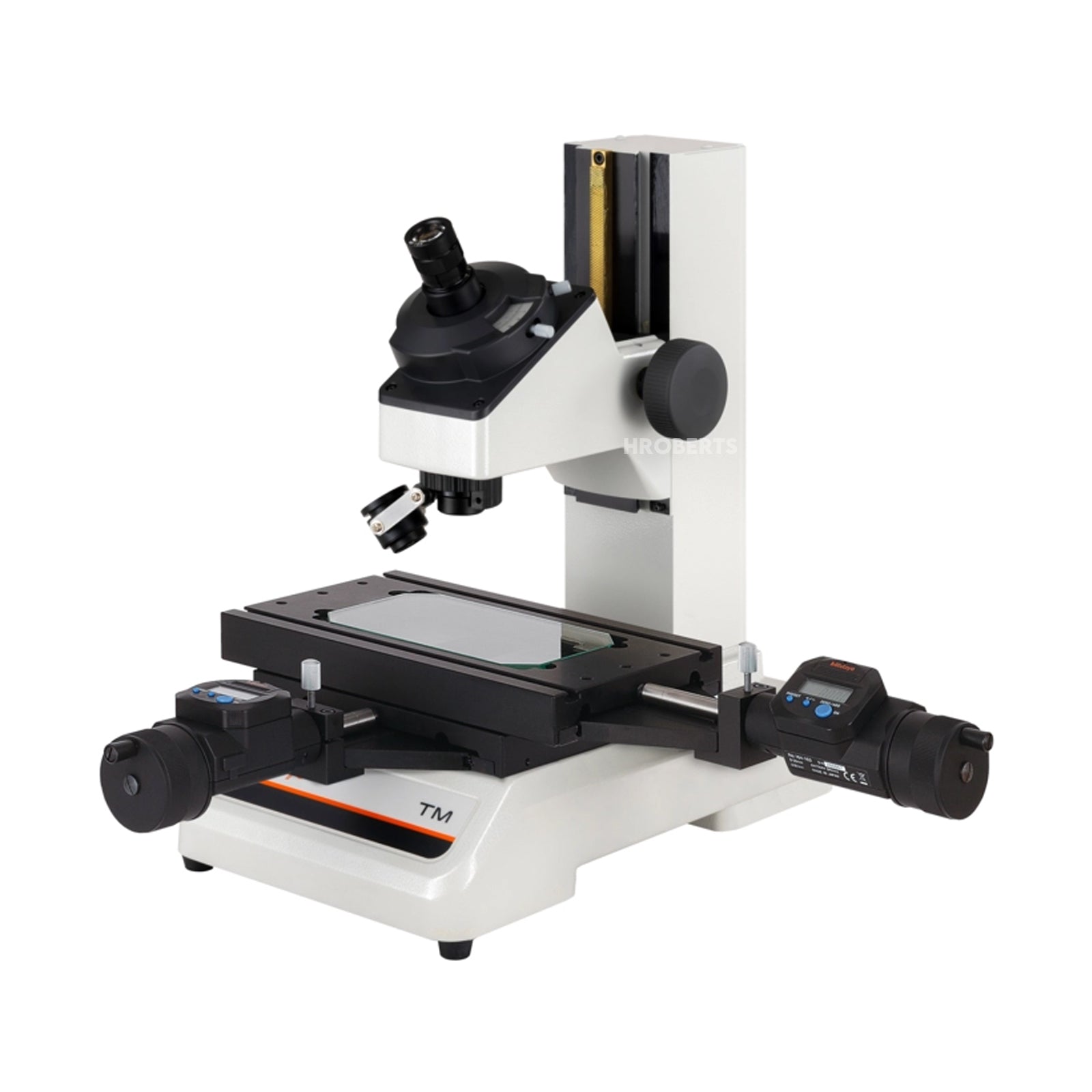

- remarks Shown with optional micrometer heads
- xy stage size 240x152mm
- xy stage travel range 100x50mm
- maximum workpeice height 107mm
- maximum stage loading 5kg
- objective 2x (176-138)
- eyepiece 15x (176-116)
The Mitutoyo TM Series is a toolmakers' microscope well suited for measuring dimensions and angles of workpiece features. It can also be used to check the shape of screws and gears by inserting an optional reticle in the eyepiece. The compact body makes it ideal for use on shop floors that have very limited space for measuring instruments. Angle measurement is performed easily by turning the angle scale to align the cross-hair reticle with the image of the edges that define a workpiece feature. Illumination intensity can be adjusted to suit the reflectance of the surface of the feature under investigation
