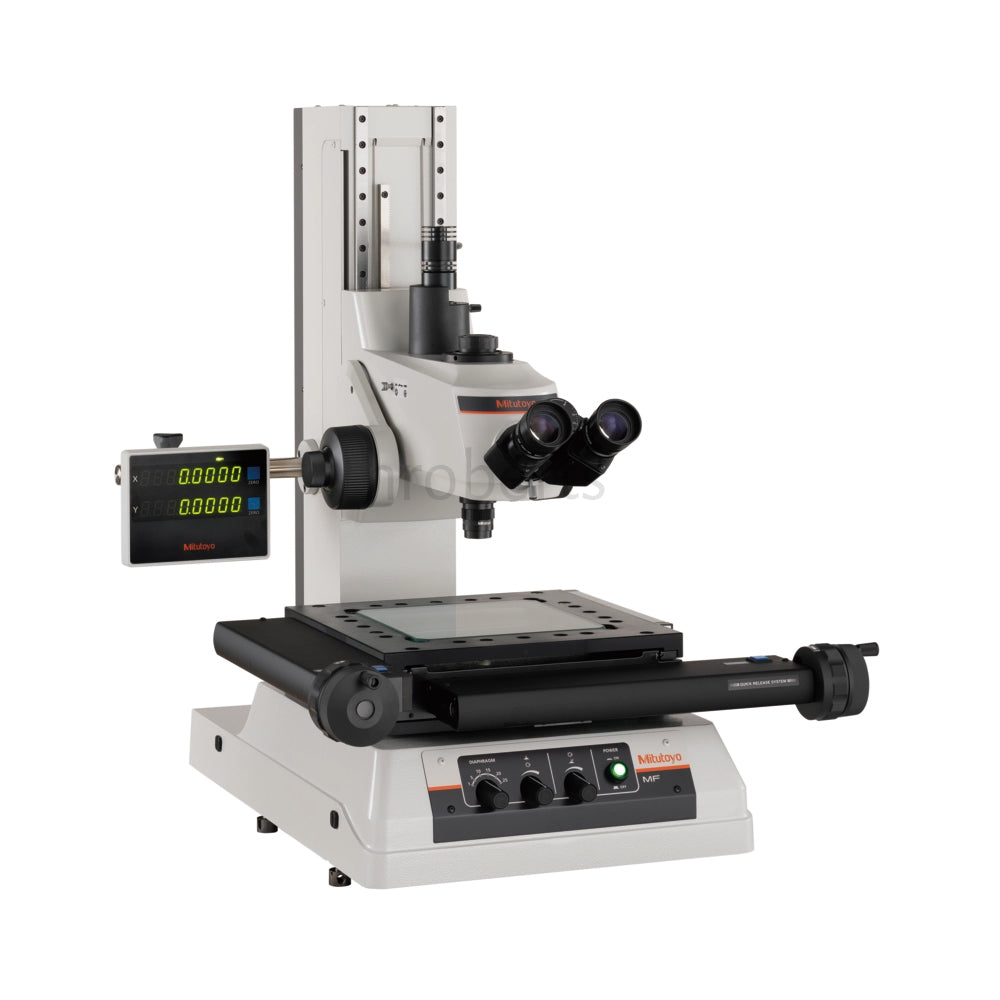

Mitutoyo 176-961-13 MF-A1010D Standard microscope with XY counter
SKU:Code: 176-961-13
Sale
Sold out
Regular price
£9,423.00
Save: 10%
Sold out
Sale price
£9,423.00
Regular price
£10,470.00
Excl. VAT
A complete MF microscope configuration consists of a main unit, which includes the stand, stage, microscope head, and counter, and it is supplied with a standard 3X objective lens.
In addition, certain accessories are essential for operation and must be selected. These include oculars (eyepieces), where at least one option is required, and an illumination unit, which is also necessary for proper use.
There are also optional extras available. Some factory-set options, such as a slide type nosepiece, require adjustment during manufacturing and should be arranged through sales support. Other optional accessories can be added depending on specific requirements.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Measuring Microscopes
- xy stage size 280x280mm
- xy stage travel range 100x100mm
- maximum workpeice height 150mm
- maximum stage loading 10kg
- objective 3x
- eyepiece 10x
- z axis scale Without Z-axis Scale
description
description
| Model: |
MF-A1010D
|
| Observation image: |
Erect
|
| MF-A (2 axis) No.: |
176-961-13
|
| MF-B (3 axis) No.: |
176-966-13
|
| Indication accuracy (at 20°C): |
XY-axis: (2.2+0.02L) µm
Z-axis: (5+0.04L) µm L: Measuring length (mm) when not loaded, JIS B 7153 |
| Floating function: |
X and Y axes with Quick-release mechanism
|
| XY stage travel range: |
100 x 100 mm
|
| XY stage top size: |
280 x 280 mm
|
| Stage glass size: |
180 x 180 mm
|
| Objective lens: |
ML-series objectives
Standard: 3X Optional: 1X, 5X, 10X, 20X, 50X, 100X |
| Max. workpiece height: |
150 mm
|
| Camera Port: |
Yes
|
| Power Turret: |
No
|
| Zero-setting: |
Yes
|
| FS Objective: |
No
|
| Z-axis motor: |
No
|
| Remote: |
No
|
| Counter: |
Yes
|
| Quick Release: |
Yes
|
| Tilting: |
No
|
| Vision AF: |
No
|
| Mass: |
67 kg
|
