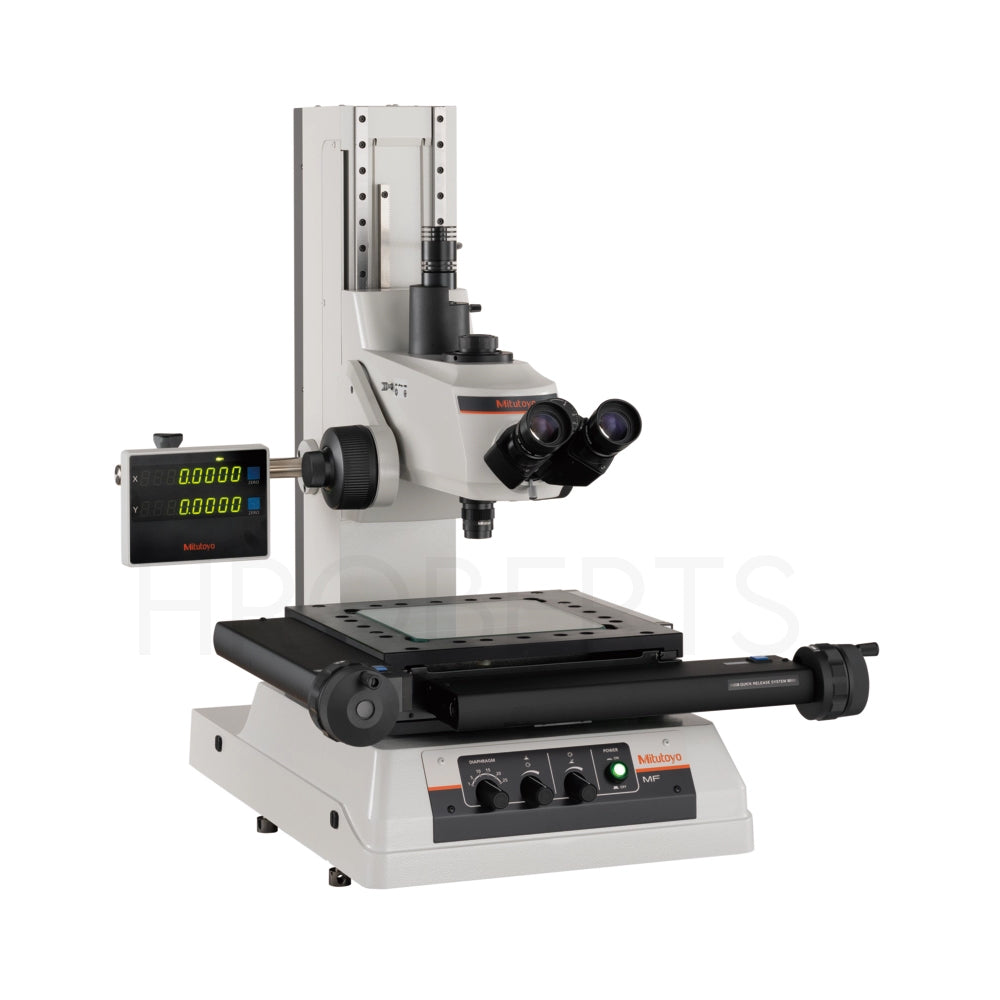

Mitutoyo 176-962-13 MF-A2010D Standard microscope with XY counter

Code: 176-962-13

Sale Sold out £10,908.00
Save: 10% Sold out £10,908.00 £12,120.00
Excl. VAT
A complete MF microscope configuration includes a main unit comprising the stand, stage, microscope head, and counter, supplied with a standard 3X objective lens (375-037-1). For the microscope to function, certain accessories must be selected. At least one set of oculars (including eyepieces) and an illumination unit are required, as both are essential for operation. There are also additional optional components available. Factory-set options, such as a slide type nosepiece, require adjustment during manufacturing and should be arranged through sales support. Other optional accessories may be added depending on specific requirements.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Questions & Answers loading...
Specification
  • brand Mitutoyo
  • type Measuring Microscopes
  • xy stage size 350x280mm
  • xy stage travel range 200x100mm
  • maximum workpeice height 150mm
  • maximum stage loading 10kg
  • objective 3x
  • eyepiece 10x
  • z axis scale Without Z-axis Scale
description
Model:
MF-A2010D
Observation image:
Erect
Indication accuracy (at 20°C):
XY-axis: (2.2+0.02L) µm
Z-axis: (5+0.04L) µm
L: Measuring length (mm)
when not loaded,
JIS B 7153
Floating function:
X and Y axes with Quick-release mechanism
XY stage travel range:
200 x 100 mm
XY stage top size:
350 x 280 mm
Stage glass size:
250 x 150 mm
Objective lens:
ML-series objectives
Standard: 3X
Optional: 1X, 5X, 10X, 20X, 50X, 100X
Max. workpiece height:
150 mm
Camera Port:
Yes
Power Turret:
No
Zero-setting:
Yes
FS Objective:
No
Z-axis motor:
No
Remote:
No
Counter:
Yes
Quick Release:
Yes
Tilting:
No
Vision AF:
No
Mass:
71 kg
