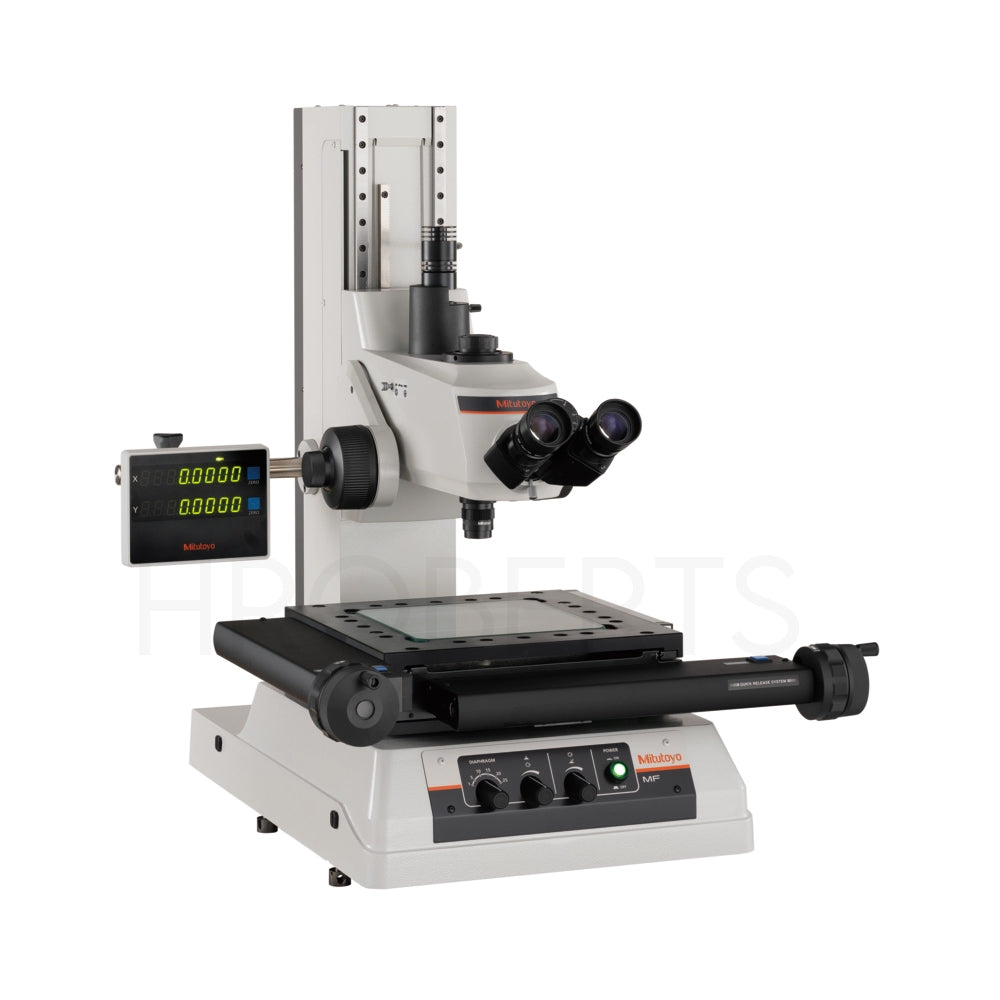

Mitutoyo 176-963-13 MF-A2017D Standard microscope with XY counter
SKU:Code: 176-963-13
Sale
Sold out
Regular price
£12,762.00
Save: 10%
Sold out
Sale price
£12,762.00
Regular price
£14,180.00
Excl. VAT
A complete MF microscope configuration consists of a main unit, including the stand, stage, microscope head, and counter, supplied with a standard 3X objective lens (375-037-1).
For the microscope to operate, certain accessories are mandatory. At least one set of oculars (including eyepieces) and an illumination unit must be selected, as both are essential for proper use.
There are also additional optional features available. Factory-set options, such as a slide type nosepiece, require adjustment during manufacturing and should be arranged through sales support, while other optional accessories can be added depending on specific requirements.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Measuring Microscopes
- xy stage size 410x342mm
- xy stage travel range 200x170mm
- maximum workpeice height 220mm
- maximum stage loading 20kg
- objective 3x
- eyepiece 10x
- z axis scale Without Z-axis Scale
description
description
| Model: |
MF-A2017D
|
| Observation image: |
Erect
|
| MF-A (2 axis) No.: |
176-863-10
|
| MF-B (3 axis) No.: |
176-868-10
|
| Indication accuracy (at 20°C): |
XY-axis: (2.2+0.02L) µm
Z-axis: (5+0.04L) µm L: Measuring length (mm) when not loaded, JIS B 7153 |
| Floating function: |
X and Y axes with Quick-release mechanism
|
| XY stage travel range: |
200 x 170 mm
|
| XY stage top size: |
410 x 342 mm
|
| Stage glass size: |
270 x 240 mm
|
| Objective lens: |
ML-series objectives
Standard: 3X Optional: 1X, 5X, 10X, 20X, 50X, 100X |
| Max. workpiece height: |
220 mm
|
| Camera Port: |
Yes
|
| Power Turret: |
No
|
| Zero-setting: |
Yes
|
| FS Objective: |
No
|
| Z-axis motor: |
No
|
| Remote: |
No
|
| Counter: |
Yes
|
| Quick Release: |
Yes
|
| Tilting: |
No
|
| Vision AF: |
No
|
| Mass: |
148 kg
|
