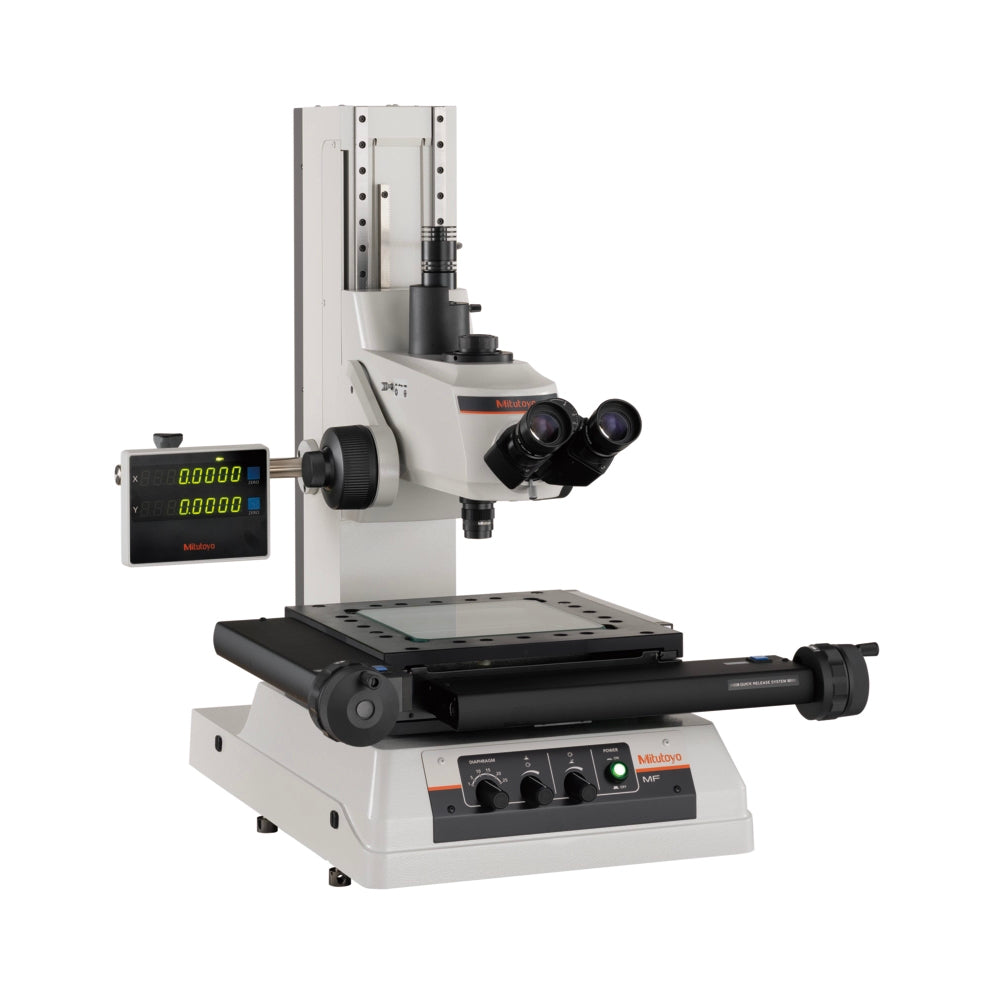

Mitutoyo 176-964-13 MF-A3017D Standard microscope with XY counter
SKU:Code: 176-964-13
Sale
Sold out
Regular price
£14,706.00
Save: 10%
Sold out
Sale price
£14,706.00
Regular price
£16,340.00
Excl. VAT
A complete MF microscope configuration consists of a main unit, including the stand, stage, microscope head, and counter, supplied with a standard 3X objective lens (375-037-1).
To ensure operation, the microscope must be configured with at least one set of oculars (including eyepieces) and an illumination unit, both of which are mandatory components.
Additional options are available to customise the system. Factory-set options, such as a slide type nosepiece, require assembly and adjustment during manufacture and should be specified when ordering. A range of other optional accessories is also available to suit specific application requirements.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- type Measuring Microscopes
- xy stage size 510x342mm
- xy stage travel range 300x170mm
- maximum workpeice height 220mm
- maximum stage loading 20kg
- objective 3x
- eyepiece 10x
- z axis scale Without Z-axis Scale
description
description
| Model: |
MF-A3017D
|
| Observation image: |
Erect
|
| MF-A (2 axis) No.: |
176-964-13
|
| MF-B (3 axis) No.: |
176-969-13
|
| Indication accuracy (at 20°C): |
XY-axis: (2.2+0.02L) µm
Z-axis: (5+0.04L) µm L: Measuring length (mm) when not loaded, JIS B 7153 |
| Floating function: |
X and Y axes with Quick-release mechanism
|
| XY stage travel range: |
300 x 170 mm
|
| XY stage top size: |
510 x 342 mm
|
| Stage glass size: |
370 x 240 mm
|
| Objective lens: |
ML-series objectives
Standard: 3X Optional: 1X, 5X, 10X, 20X, 50X, 100X |
| Max. workpiece height: |
220 mm
|
| Camera Port: |
Yes
|
| Power Turret: |
No
|
| Zero-setting: |
Yes
|
| FS Objective: |
No
|
| Z-axis motor: |
No
|
| Remote: |
No
|
| Counter: |
Yes
|
| Quick Release: |
Yes
|
| Tilting: |
No
|
| Vision AF: |
No
|
| Mass: |
156 kg
|
