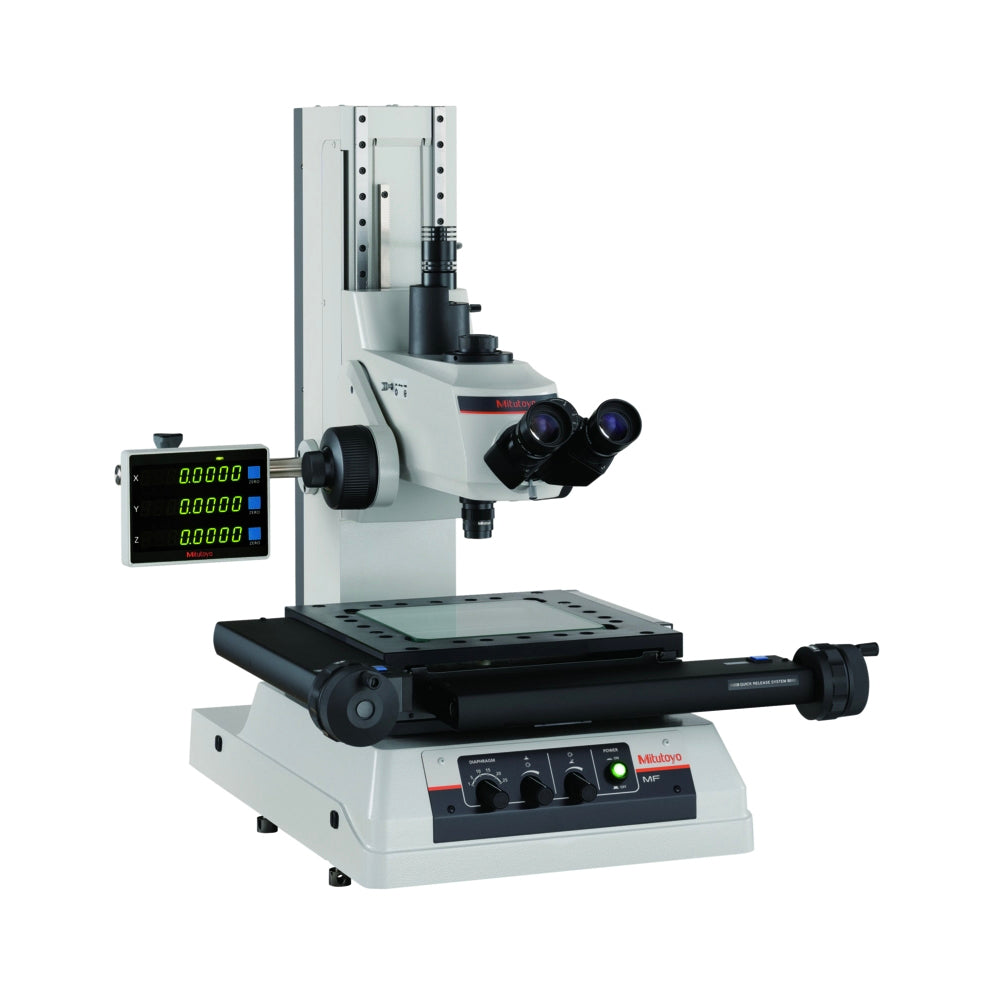

Mitutoyo 176-969-13 MF-B3017D Standard microscope with XYZ counter

Code: 176-969-13

Sale Sold out £15,534.00
Save: 10% Sold out £15,534.00 £17,260.00
Excl. VAT
A complete MF microscope configuration consists of a main unit, including the stand, stage, microscope head, and counter, supplied with a standard 3X objective lens (375-037-1). To operate the microscope, at least one set of oculars (including eyepieces) and an illumination unit must be selected, as these components are essential for operation. The microscope can also be customised with a range of optional accessories. Factory-set options, such as a slide type nosepiece, require assembly and adjustment during manufacture and should be specified at the time of ordering. Additional optional accessories are available to meet specific application requirements.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Mitutoyo
  • type Measuring Microscopes
  • xy stage size 510x342mm
  • xy stage travel range 300x170mm
  • maximum workpeice height 220mm
  • maximum stage loading 20kg
  • objective 3x
  • eyepiece 10x
  • z axis scale With Z-axis Scale
description
Model:
MF-B3017D
Observation image:
Erect
Indication accuracy (at 20°C):
XY-axis: (2.2+0.02L) µm
Z-axis: (5+0.04L) µm
L: Measuring length (mm)
when not loaded,
JIS B 7153
Floating function:
X and Y axes with Quick-release mechanism
XY stage travel range:
300 x 170 mm
XY stage top size:
510 x 342 mm
Stage glass size:
370 x 240 mm
Objective lens:
ML-series objectives
Standard: 3X
Optional: 1X, 5X, 10X, 20X, 50X, 100X
Max. workpiece height:
220 mm
Camera Port:
Yes
Power Turret:
No
Zero-setting:
Yes
FS Objective:
No
Z-axis motor:
No
Remote:
No
Counter:
Yes
Quick Release:
Yes
Tilting:
No
Vision AF:
No
Mass:
156 kg
