Specification
Specification
- type Setting Ring
- measuring units Imperial

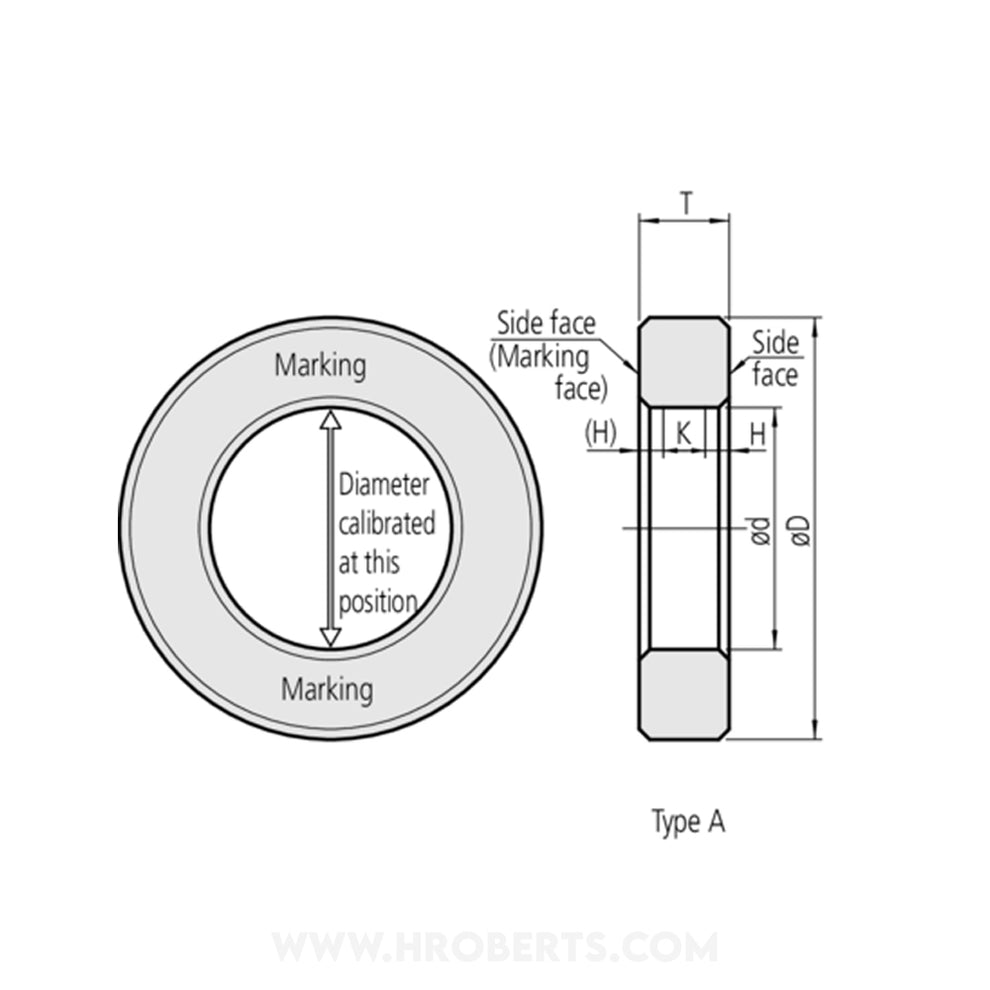

- remarks Ring Type A
- dimension b 71mm
- nominal size 1.2"
- dimension t 15mm
- tolerance between the nominal size and the actual diameter ±0.0004"
- uncertainty of marked diameter value ±0.00006"
- roundness Cylindricity 0.00004"
- distance from the side face h 3.0mm
- size of warranted calibration surface k 9.0mm
description
description
The primary purpose of a setting ring is to calibrate or set the measuring equipment, such as bore gauges or inside micrometers, to a known reference dimension.
