Specification
Specification
- type Setting Ring
- measuring units Metric

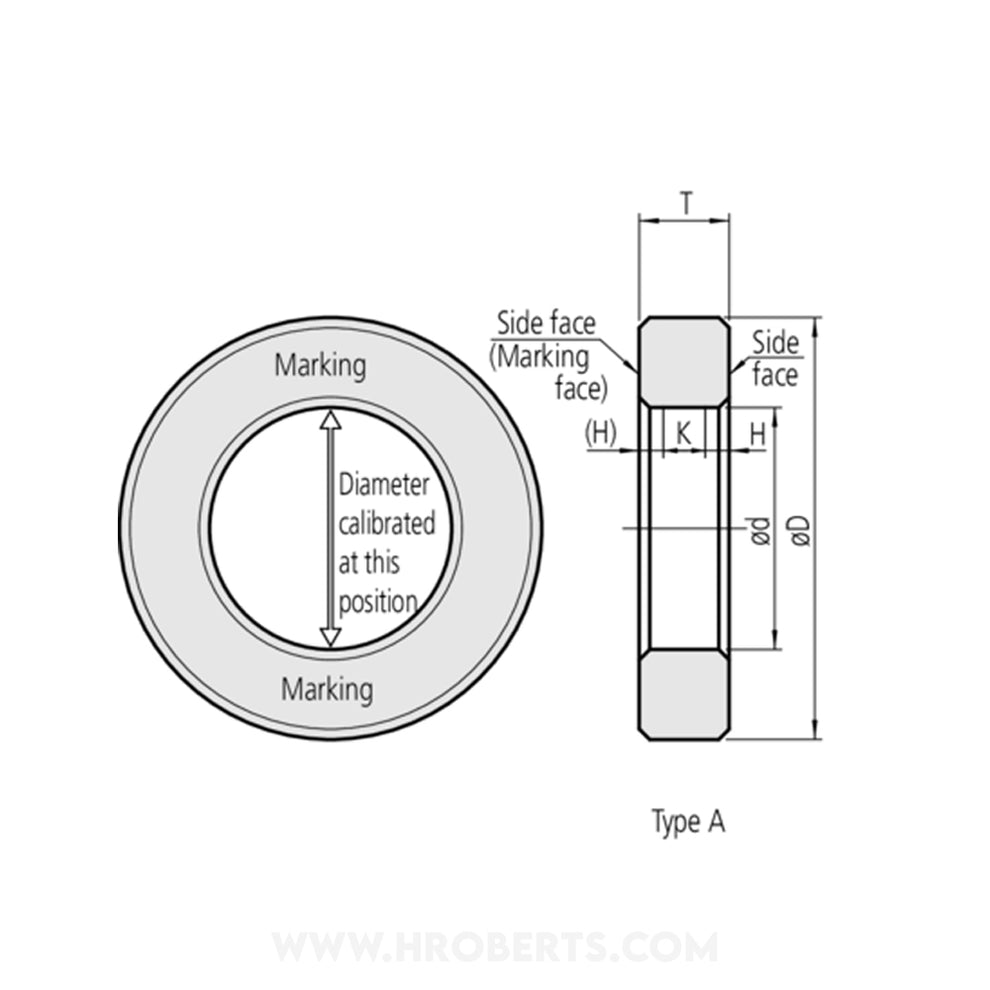

- remarks Ring Type A
- dimension b 112mm
- nominal size 60mm
- dimension t 20mm
- tolerance between the nominal size and the actual diameter ±20µm
- uncertainty of marked diameter value ±1.5µm
- roundness Cylindricity 1µm
- distance from the side face h 3.7mm
- size of warranted calibration surface k 12.6mm
description
description
The primary purpose of a setting ring is to calibrate or set the measuring equipment, such as bore gauges or inside micrometers, to a known reference dimension.
