Mitutoyo
178-561-12E SJ-210 Portable Surface Roughness Tester, Imperial / Metric, Measuring Range 16mm, Resolution 0.001µm, Drive Unit Standard, Stylus Tip Angle 90°, Radius 5μm
SKU:Code: 178-561-12E
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Standard
- display type 2.4-inch colour graphic LCD
- resolution 360 μm/0.02 μm. 100 μm/0.006 μm. 25 μm/0.002 μm
- style Skidded

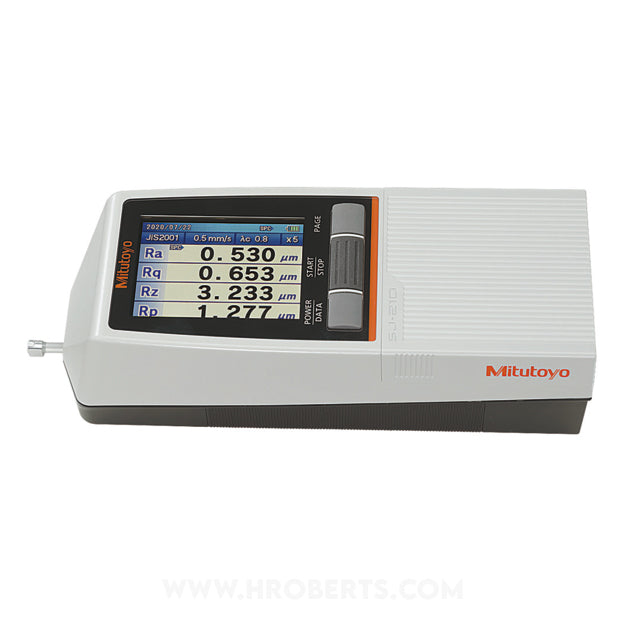

The Surftest SJ-210 offers you the following benefits: Skid system gives you user friendly and intuitive menu navigation. It works independently of mains power, allowing you to make on-site measurements. The 6.0 cm [2.4“] colour graphic, back-lit LCD gives you excellent readability. It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings. Different drivers expanding the range of applications. Calculation results, assessed profiles, bearing and amplitude curves can be displayed. Support of 21 languages. Operation by keys on the front and under the sliding cover.
