Mitutoyo
178-583-11E SJ-410 Portable Surface Roughness Tester, Imperial / Metric, Measuring Range 50mm,Resolution 0.001µm, Stylus Tip Angle 60°, Radius 2μm
SKU:Code: 178-583-11E
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Standard
- display type Colour-graphic LCD touch screen
- resolution 0.01 μm (800 μm range). 0.001 μm (80 μm range). 0.0001 μm (8 μm range)
- style Skidless/ Skid (switchable)

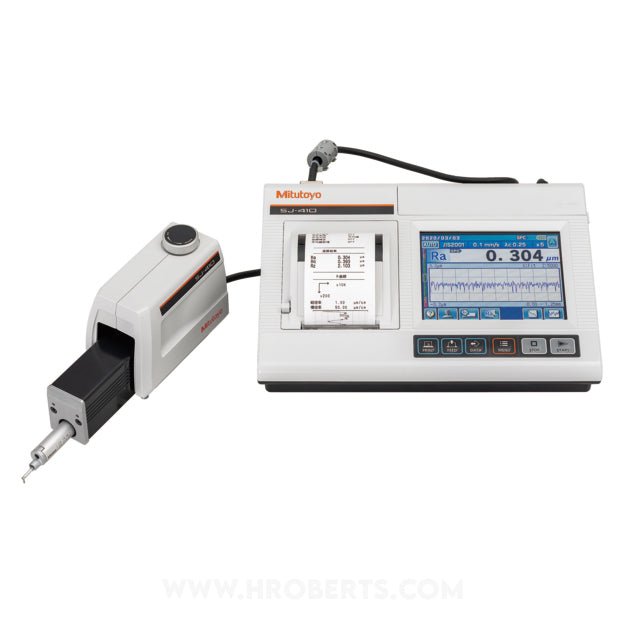

The Surftest SJ-410 offers you the following benefits: Skidless system with touch-screen functionality and built-in printer. It works independently of mains power, allowing you to make on-site measurements. Easy and intuitive menu navigation.The large 14.5 cm [5.7“] colour LCD gives you high visibility. The skidless detector allows you to measure the primary profile (P), roughness profile (R), waviness profile (W) and more. Surface compensation of curved, radial and tilted surfaces. It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings. You can store up to 10 different measuring conditions inside the SJ-410, and up to 500 with an optional SD card. It allows two different evaluation conditions within one measurement adjustable. You can separately password protect many functions. It comes with support for 16 languages. Available options include an auto-set unit, X-axis fine adjustment and digital levelling unit.
