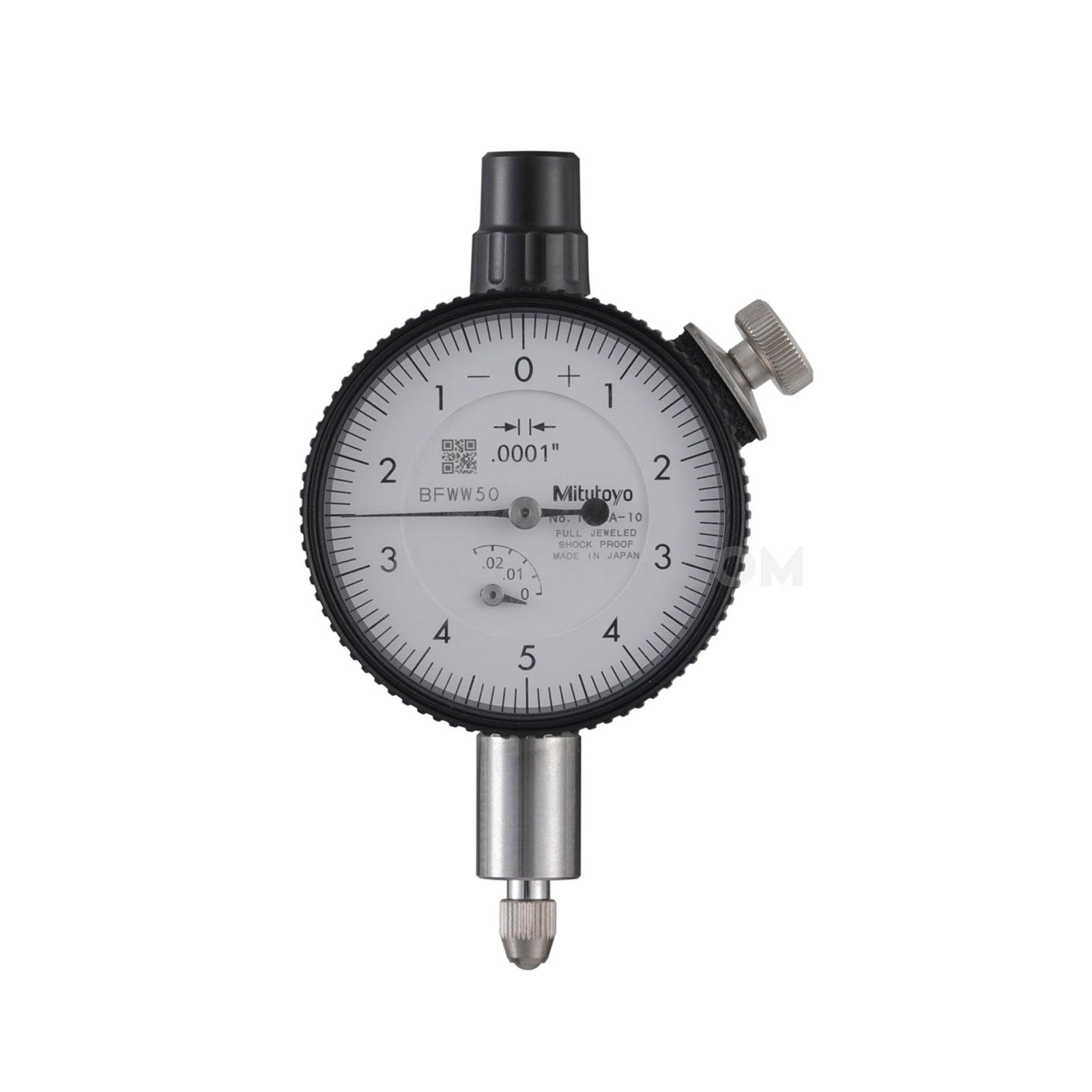

Mitutoyo 1803A-10 Dial Indicator, Graduation 0.0001", Range 0.25", Scale 0-5-0, Bezel Diameter 1.57"
SKU:Code: 1803A-10
Sale
Sold out
Regular price
£132.00
Save: 25%
Sold out
Sale price
£132.00
Regular price
£176.00
Excl. VAT
Series 1 Compact dial indicators ideal for restricted-space applications in gauging jigs. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- range 0.25"
- range rev 0.01"
- display type Non-Digital
- graduations 0.0001"
- bezel dia 1.57"
- measuring force 1.5 N or Less
- measuring units Imperial
- stem dia 0.375"
- remarks Dial Gauge Series 1
- scale 0-5-0
- contact point thread 4-48UNF
- back Centre Lug
- brand Mitutoyo
description
description
Compact dial indicators ideal for restricted-space applications in gauging jigs. The bezel clamp 21AZB149, lifting lever and Limit Hands ( 2 pcs ) 21AAB363 which are all optional. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration. The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy duty use. A carbide contact point is used. Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
