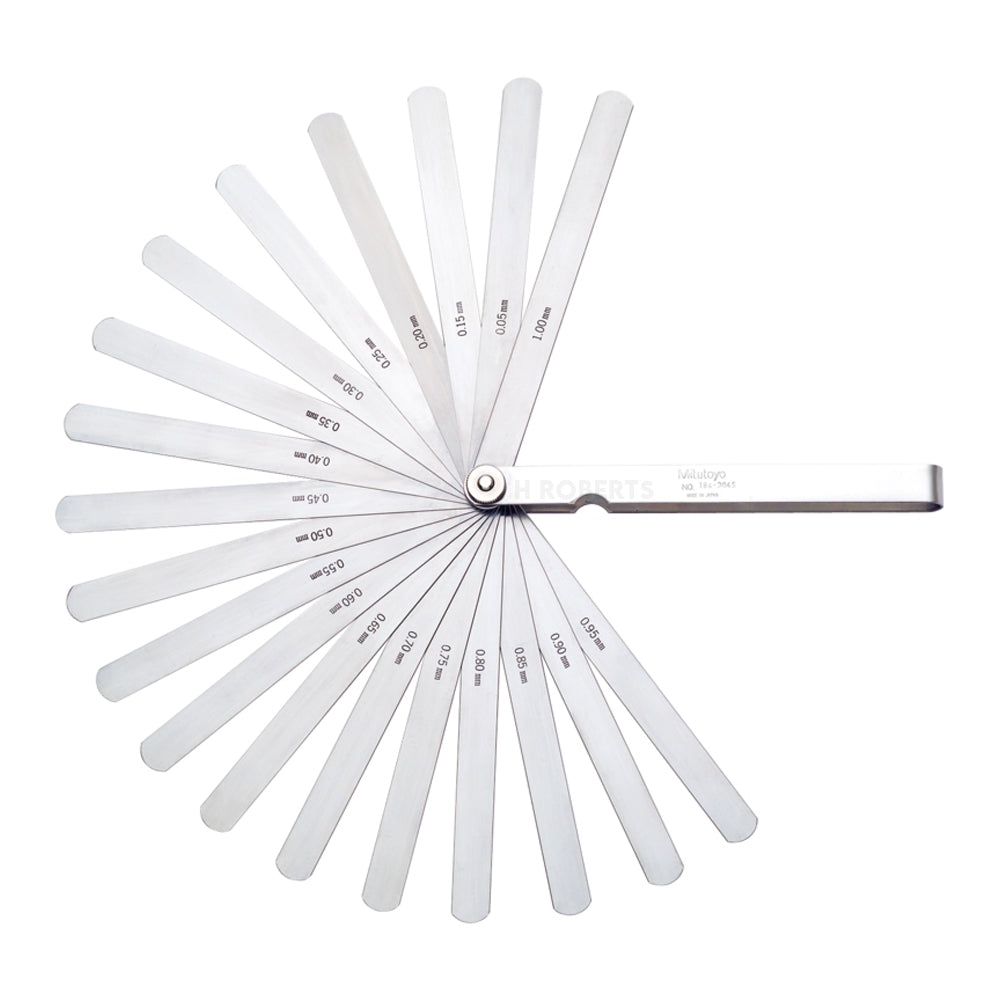

Mitutoyo 184-304S Feeler Gauge Set, Range 0.05-1mm with 20 Leaves, Length 150mm
SKU:Code: 184-304S
Sale
Sold out
Regular price
£35.00
Save: 33%
Sold out
Sale price
£35.00
Regular price
£52.50
Excl. VAT
Designed for gauging the width of narrow gaps. Each leaf is marked with its thickness. Each leaf is detachable if necessary
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- range 0.05-1mm
- length 150mm
- measuring units Metric
- remarks 0.05-1mm by 0.05mm
- width 12.7mm
description
description
Feeler Gauges are used to precisely determine the size of small gaps between two objects that are in close proximity and usually consist of several finger-shaped strips of thin metal which vary in thickness (also known as leaves or blades), secured at one end by a pivot pin
| Inch-Metric: |
Metric
|
| Range: |
0,05-1 mm by 0,05 mm
|
| Accuracy: |
0.03-0.15 mm: ±0.005 mm,
0.2- 0.5 mm: ±0.012 mm, 0.55-1 mm: ±0.02 mm |
| Number of leaves: |
20
|
| Leaf length: |
150 mm
|
| Mass: |
184 g
|
