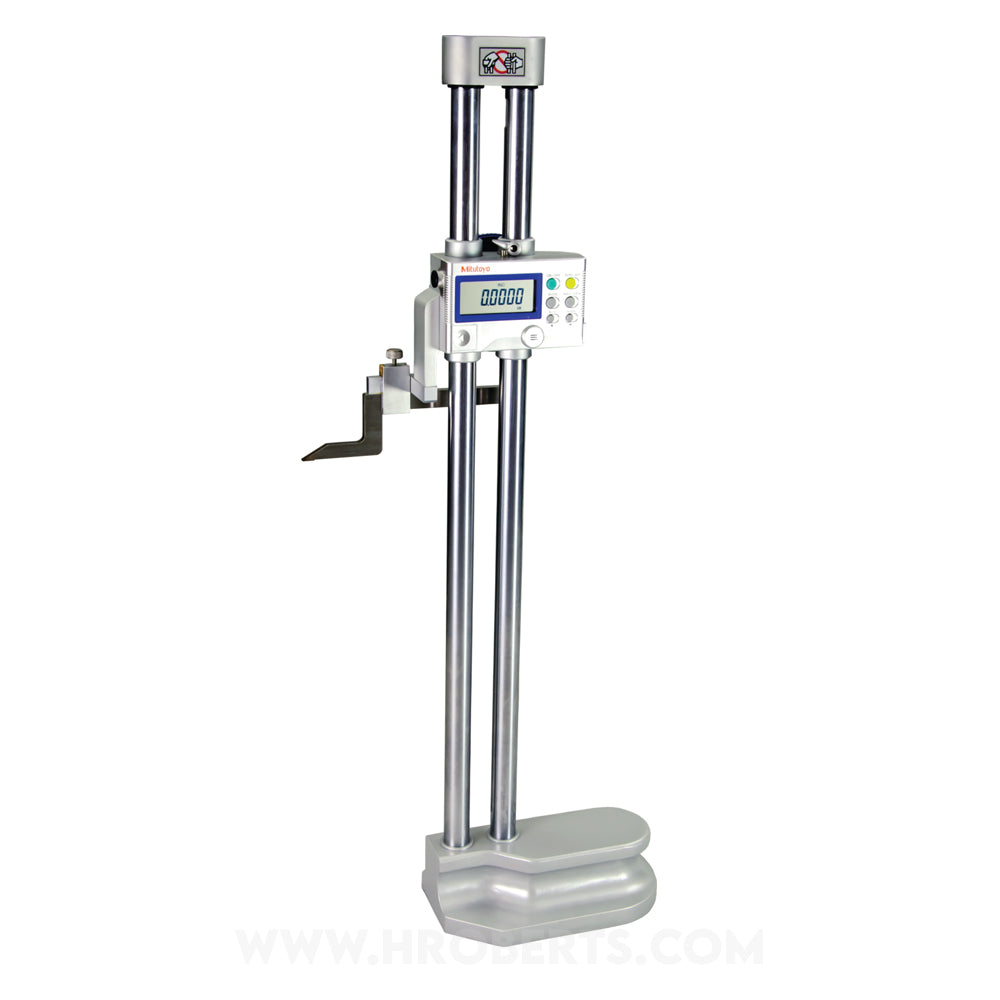

192-671-10 Digimatic Digital Double Column Height Gauge, Multifunctional Type, Range 0-450mm / 0-18", Resolution 0.01mm / 0.005mm / 0.0005" / 0.0002"

SKU:Code: 192-671-10

Sale Sold out Regular price £1,170.00
Save: 25% Sold out Sale price £1,170.00 Regular price £1,560.00
Excl. VAT
Coarse adjustment Push the small fine-adjustment knob in to disengage gearing and then turn the large wheel. Fine adjustment Pull the fine-adjustment knob out to engage gearing and then turn this knob, which then slowly turns the wheel
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Scribing
  • range 0-450mm / 0-18"
  • display type Digital
  • resolution 0.01mm / 0.005mm / 0.0005" / 0.0002"
  • data output Yes
  • measuring units Metric / Imperial
  • repeatability 0.01mm
  • zero setting Yes
  • preset function Yes
  • origin point setting Yes
  • data hold Yes
  • origin seting Yes
  • alarm Yes
  • measuring direction Yes
  • fine and coarse height adjustment Yes
  • max permissible error EMPE ±0.04mm (±0.0015")

Double-column structure ensures high measuring accuracy. Multifunctional type. Ergonomic base fits comfortably in the hand. Bidirectional touch-trigger probe is available as an optional accessory. Character height of the display has been increased (10 to 11 mm) and the high-contrast LCD display provides improved readability. Inclined handle improves slider ergonomics. Allows integration into statistical process control and measurement systems. Carbide-tipped long scriber is provided as a standard accessory.
