Mitutoyo

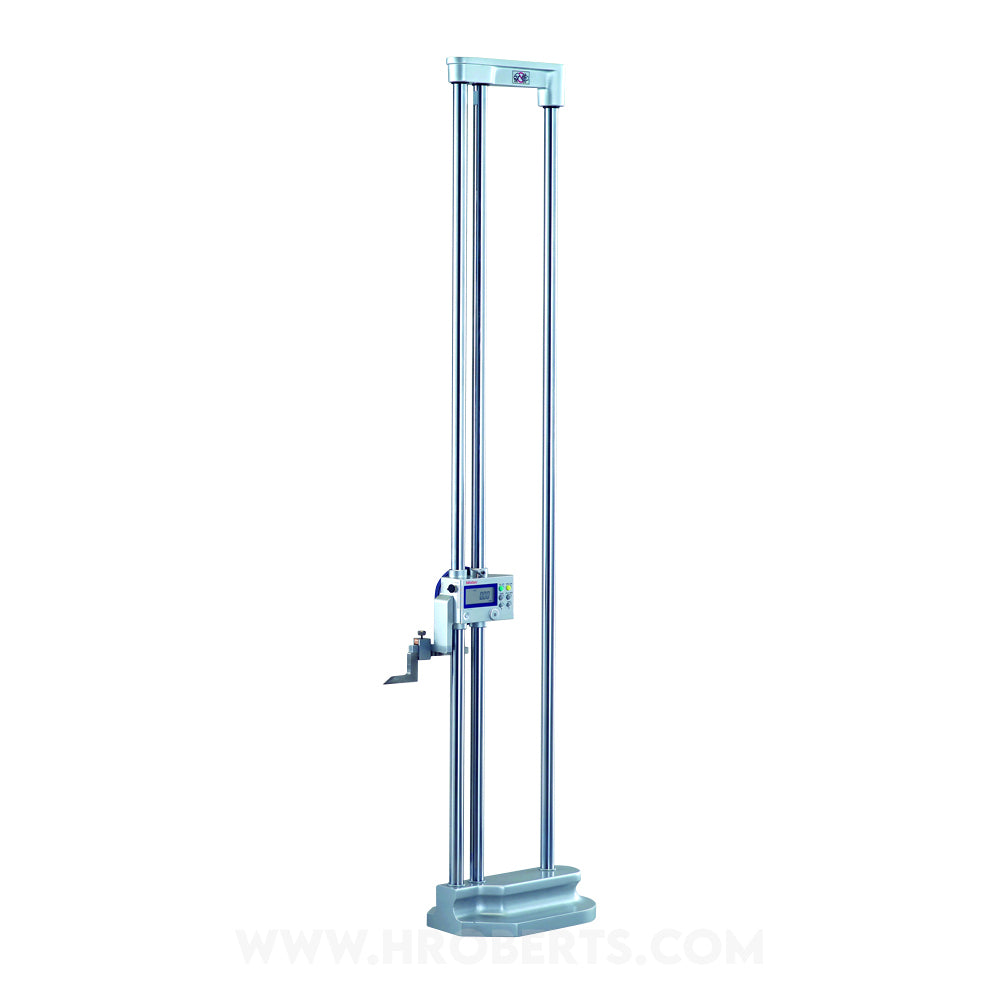

192-673-10 Digimatic Digital Double Column Height Gauge, Multifunctional Type, Range 0-1000mm / 0-40", Resolution 0.01mm / 0.005mm / 0.0005" / 0.0002"
SKU:Code: 192-673-10
Sale
Sold out
Regular price
£2,280.00
Save: 25%
Sold out
Sale price
£2,280.00
Regular price
£3,040.00
Excl. VAT
Coarse adjustment Push the small fine-adjustment knob in to disengage gearing and then turn the large wheel. Fine adjustment Pull the fine-adjustment knob out to engage gearing and then turn this knob, which then slowly turns the wheel
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-1000mm / 0-40"
- display type Digital
- resolution 0.01mm / 0.005mm / 0.0005" / 0.0002"
- data output Yes
- measuring units Metric / Imperial
- repeatability 0.01mm
- zero setting Yes
- preset function Yes
- origin point setting Yes
- data hold Yes
- origin seting Yes
- alarm Yes
- measuring direction Yes
- fine and coarse height adjustment Yes
- max permissible error EMPE ±0.06mm (±0.0025")
description
description
Double-column structure ensures high measuring accuracy. Multifunctional type. Ergonomic base fits comfortably in the hand. Bidirectional touch-trigger probe is available as an optional accessory. Character height of the display has been increased (10 to 11 mm) and the high-contrast LCD display provides improved readability. Inclined handle improves slider ergonomics. Allows integration into statistical process control and measurement systems. Carbide-tipped long scriber is provided as a standard accessory.
