- type Dial Indicator
- range 1mm
- range rev 1.4mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring force 1.4 N or Less
- measuring units Metric
- stem dia 8mm
- scale 50-0-50
- contact point thread M2.5 x 0.45
- back Centre Lug
description
description

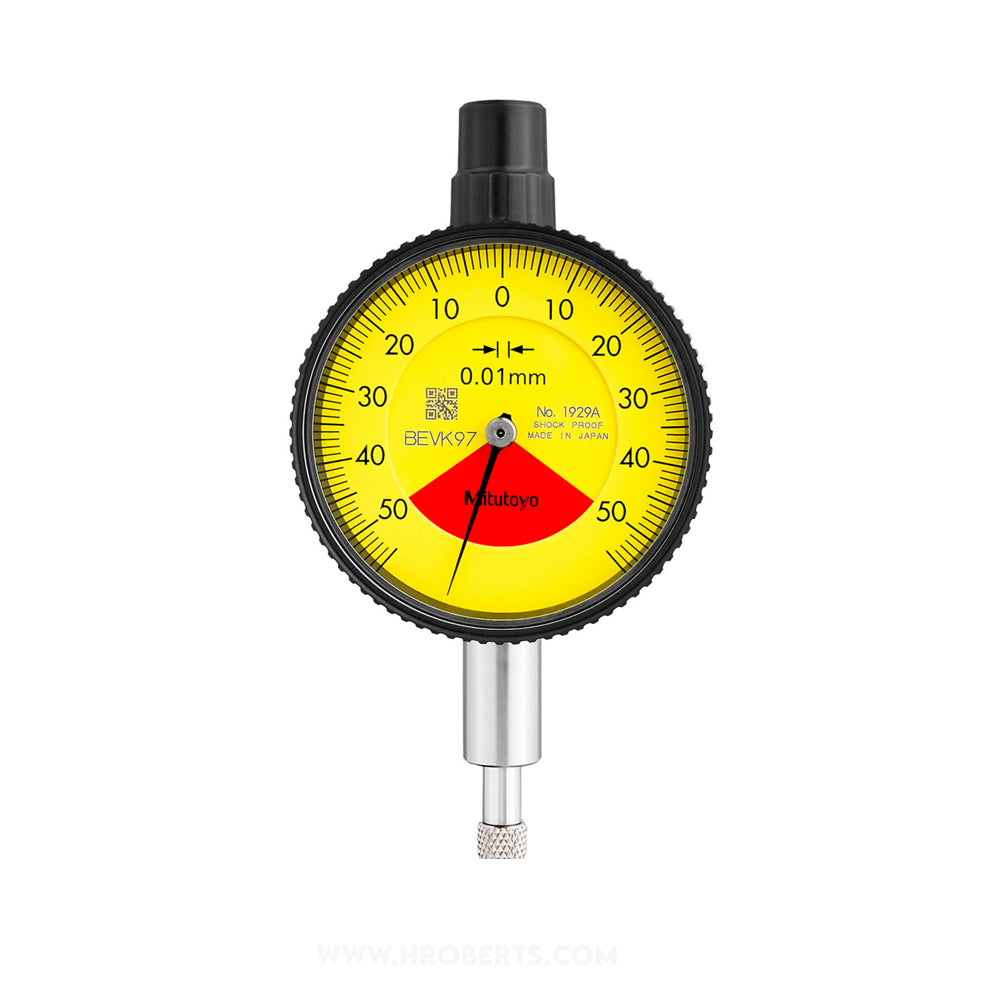

Compact dial indicators ideal for restricted-space applications in gauging jigs. Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed” The bezel clamp 21AZB149, lifting lever and Limit Hands ( 2 pcs ) 21AAB363 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
