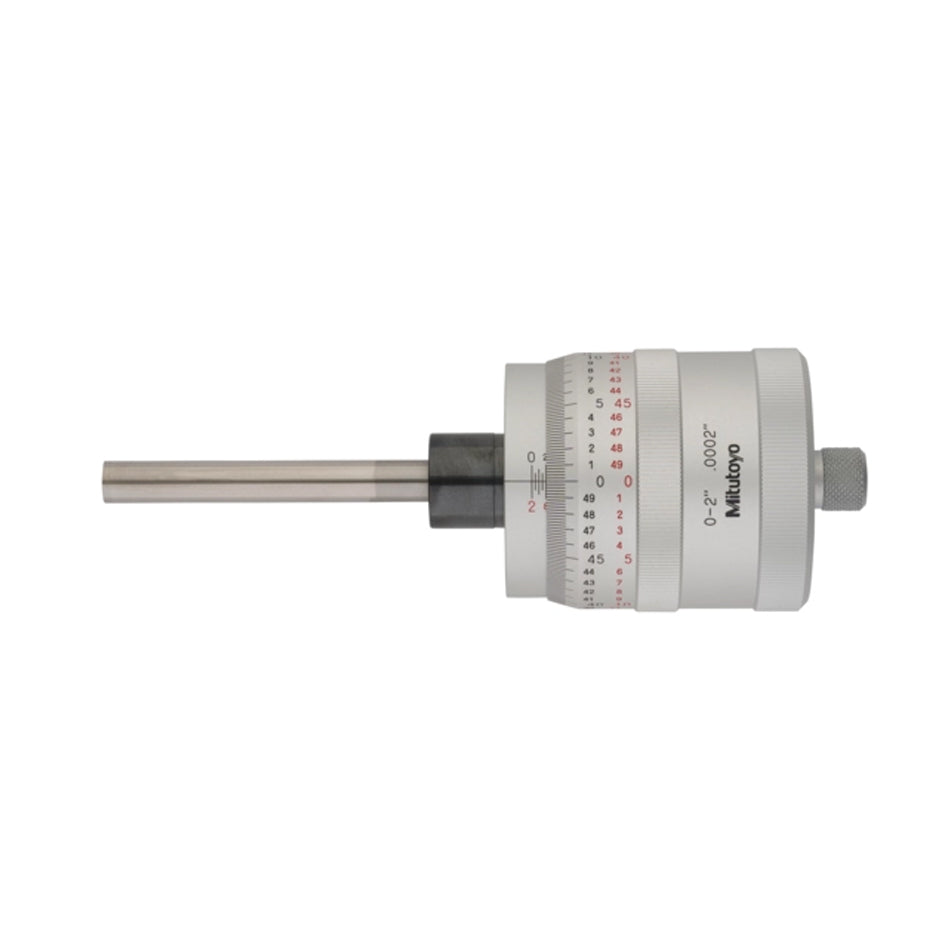

Mitutoyo 197-201 Large Diameter Thimble Micrometer Head, Range 0-2", Graduation 0.0002"
SKU:Code: 197-201
Sale
Sold out
Regular price
£320.25
Save: 25%
Sold out
Sale price
£320.25
Regular price
£427.00
Excl. VAT
Large Diameter Thimble Non-Rotating Spindle Micrometer Head.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Large Diameter Thimble
- range 0-2"
- display type Non-Digital
- graduations 0.0002"
- measuring units Imperial
- spindle end Flat
- stem dia 0.709"
- stem type Plain
- remarks Bidirectional
- max permissible errors ±0.0001"
- measuring face Carbide Tipped
- brand Mitutoyo
description
description
A high resolution, bidirectionally graduated large-thimble, rapid-feed non-digital Mitutoyo micrometer head with plain Ì÷.709" stem and heavy-duty 8mm non-rotating spindle fitted with flat tungsten-carbide tip.
