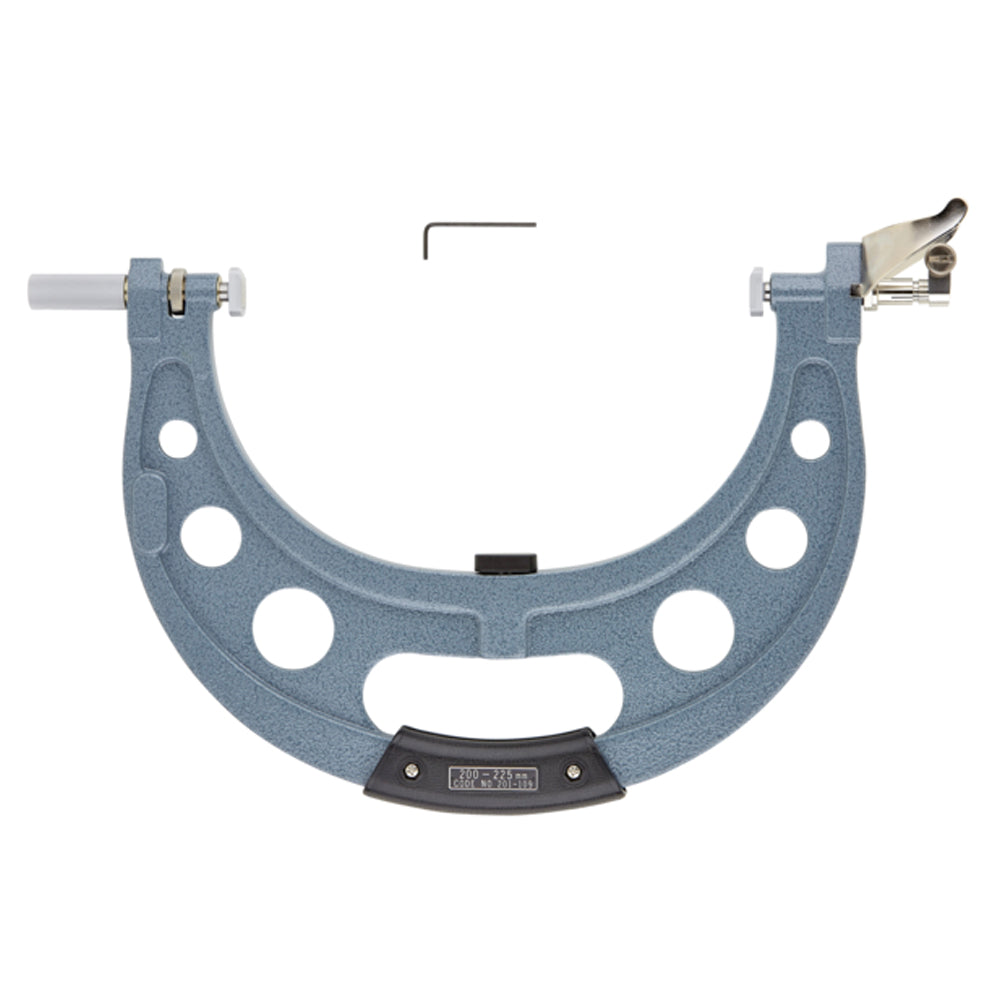

201-109 Dial Snap Gauge, Range 200-225mm

SKU:Code: 201-109

Sale Sold out Regular price £420.75
Save: 25% Sold out Sale price £420.75 Regular price £561.00
Excl. VAT
Dial snap gauges are used to check the outside dimensions of parts. Note: The dial indicator and protection cover are optional.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Dial Snap Gauges
  • range 200-225mm
  • display type Non-Digital
  • flatness 1 μm
  • measuring force 15 N ±3 N
  • measuring units Metric
  • size 13.5 x 12mm
  • remarks For Indicator with 8mm stem
  • stroke 2mm
  • dial indicator 2046AB Graduation 0.01mm / 2109AB Graduation 0.001mm
  • anvil Flat Carbide
  • parallelism 5 µm
description

Designed for quick GO/NO-GO judgement of diameters of cylinders and shafts in machining processes. Wide (13.5 x 12 mm / 1.53 x 47"), flat carbide anvils. Indicator-anvil retraction stroke: 2 mm / .080". Anvil positioning range: 25 mm / 1". Adjustment nut: adjusts the setting anvil to the nominal size required within the measuring range. Clamp: clamps the setting anvil at the required position. Flatness of measuring face: 1 μm. Repeatability of indication: 2 μm or less (repeatability of indicators is not included). The dial indicator and protection cover are optional. Also, some dial indicators and protection covers cannot be used with the dial snap gauge. Consult H Roberts before using dial indicators which are not recommended.
