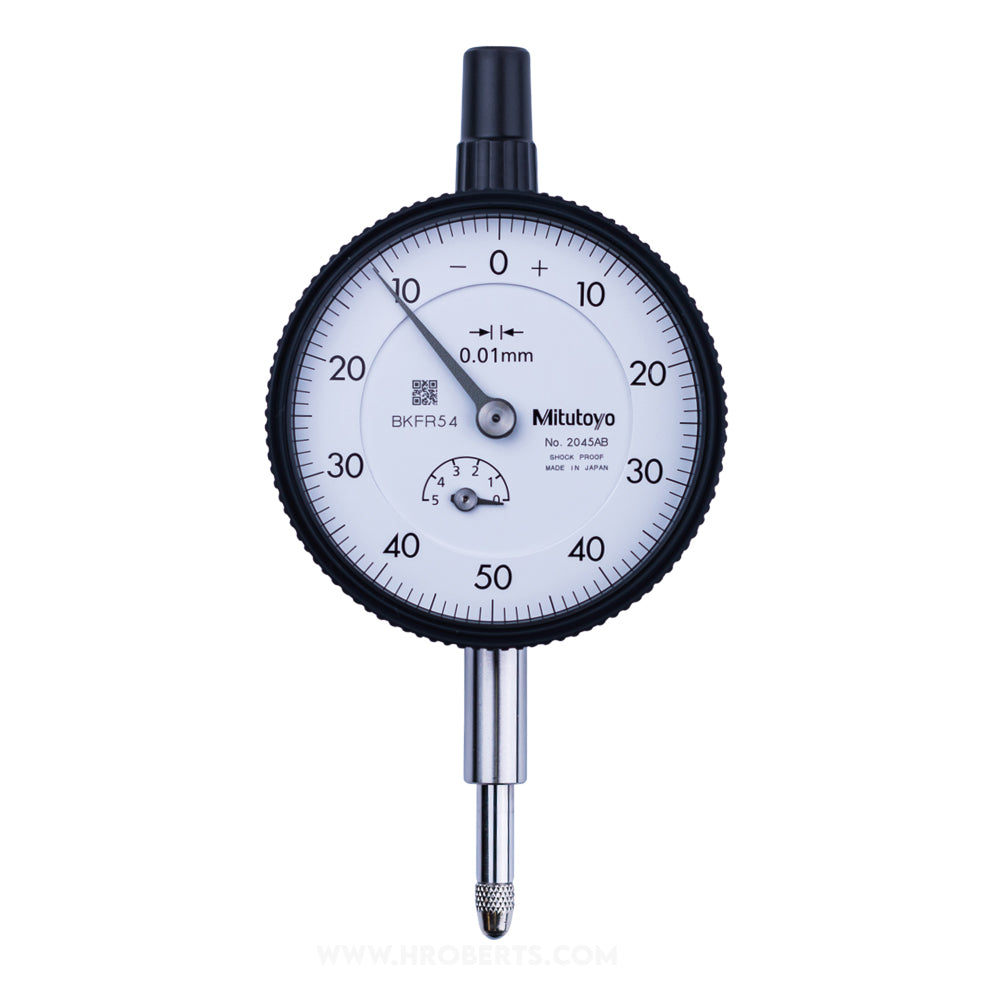

- type Dial Indicator
- range 5mm
- range rev 1mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 57mm
- measuring force 1.4 N or Less
- measuring units Metric
- stem dia 8mm
- remarks Dial Gauge Series 2
- scale 0-50-0
- contact point thread M2.5 x 0.45
- back Centre Lug
The bezel clamp 21AZB148, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration. The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The grand gear is made of stainless steel with
high resistance to wear and deformation. Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance. A carbide contact point is used.
