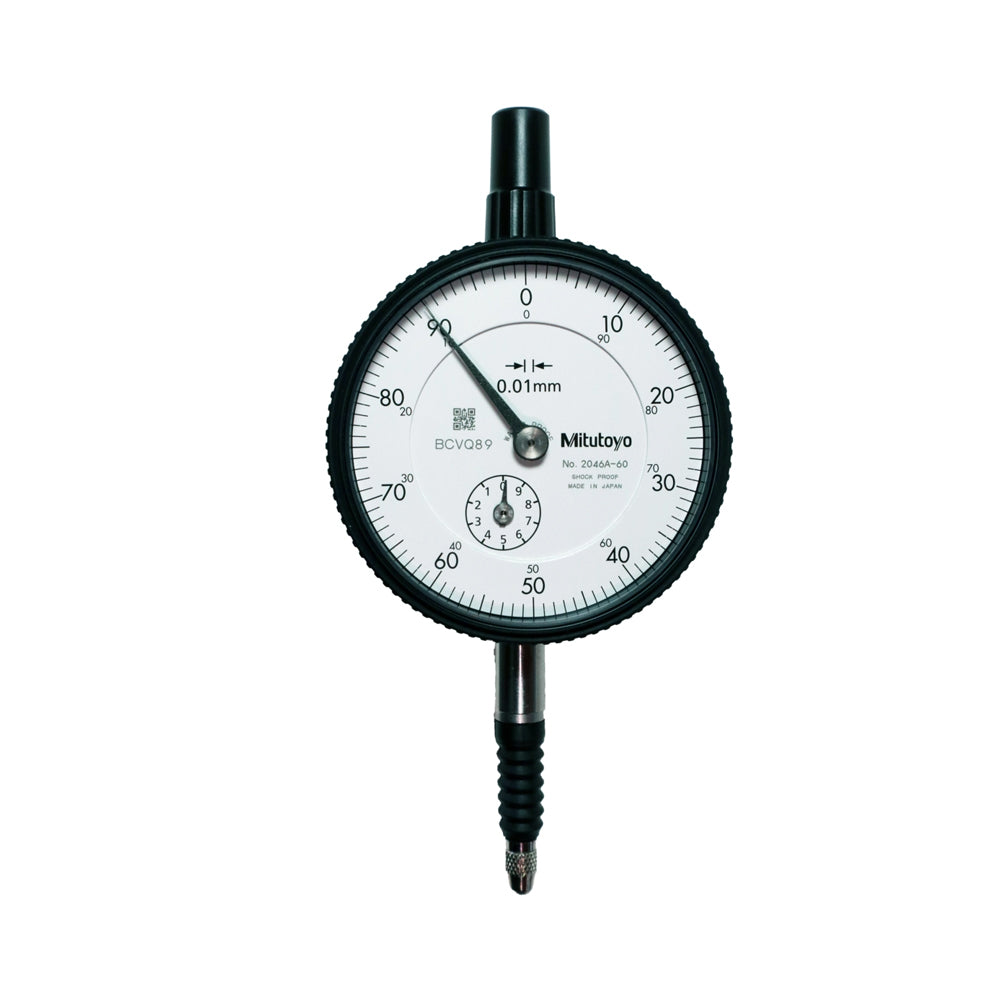

Mitutoyo 2046A-60 Dial Indicator, IP64, Graduation 0.01mm, Range 10mm, Scale 0-100, Bezel Diameter 57mm
SKU:Code: 2046A-60
Sale
Sold out
Regular price
£93.75
Save: 25%
Sold out
Sale price
£93.75
Regular price
£125.00
Excl. VAT
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- type Dial Indicator
- range 10mm
- range rev 1mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 57mm
- ip rating IP64
- measuring force 1.4 N or Less
- measuring units Metric
- stem dia 8mm
- scale 0-100
- remarks Dial Gauge Series 2
- contact point thread M2.5 x 0.45
- back Centre Lug
description
description
Mitutoyo 2046A-60 Analogue Dial Indicator
The Mitutoyo 2046A-60 Analogue Dial Indicator is a precision mechanical measuring instrument designed for accurate inspection and comparative measurement where a longer measuring range is required. It is well suited to professional engineering, manufacturing, and quality control environments.
A watertight assembly of the bezel and crystal, combined with an internal O-ring seal, prevents water and oil penetration, ensuring dependable performance in demanding workshop conditions.
Key Features
- High-precision analogue dial indicator with extended measuring range
- Watertight bezel and crystal assembly with O-ring sealing
- Prevents water and oil penetration in workshop environments
- High-strength, quench-hardened stainless steel stem and spindle
- Stainless steel grand gear with high resistance to wear and deformation
- Anti-reflective, hard surface coating for improved scale visibility
- Enhanced resistance to scratches and chemical exposure
- Carbide contact point for durability and consistent measurement
- Optional bezel clamp (21AZB148), lifting lever, and limit hands (2 pcs, 21AZB195)
- Optional accessories can be fitted to either the right or left side
- Accessories can be installed and removed easily without tools
Applications
- Quality control and inspection
- Comparative measurement with increased travel
- Precision engineering and manufacturing
- Toolrooms and inspection setups
