Specification
Specification
- type Internal
- range 20-40mm
- display type Non-Digital
- graduations 0.01mm
- ip rating IP65
- measuring units Metric
- measuring contact carbide ball ø1 mm
- brand Mitutoyo
description
description

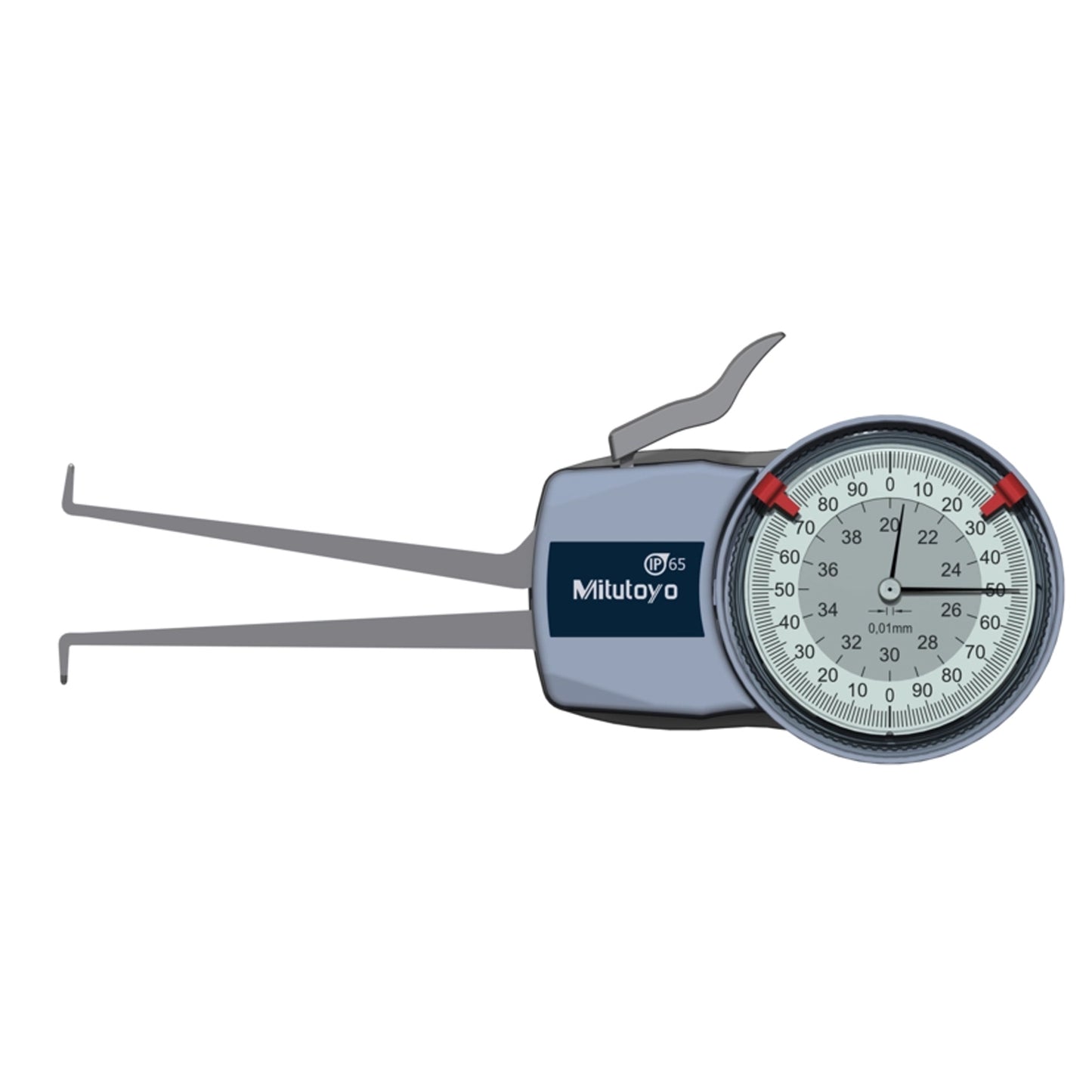

A Mitutoyo internal dial caliper gauge designed for use as a comparator, to be set up using a setting ring or micrometer. The caliper is spring loaded and makes point contact at constant measuring force.

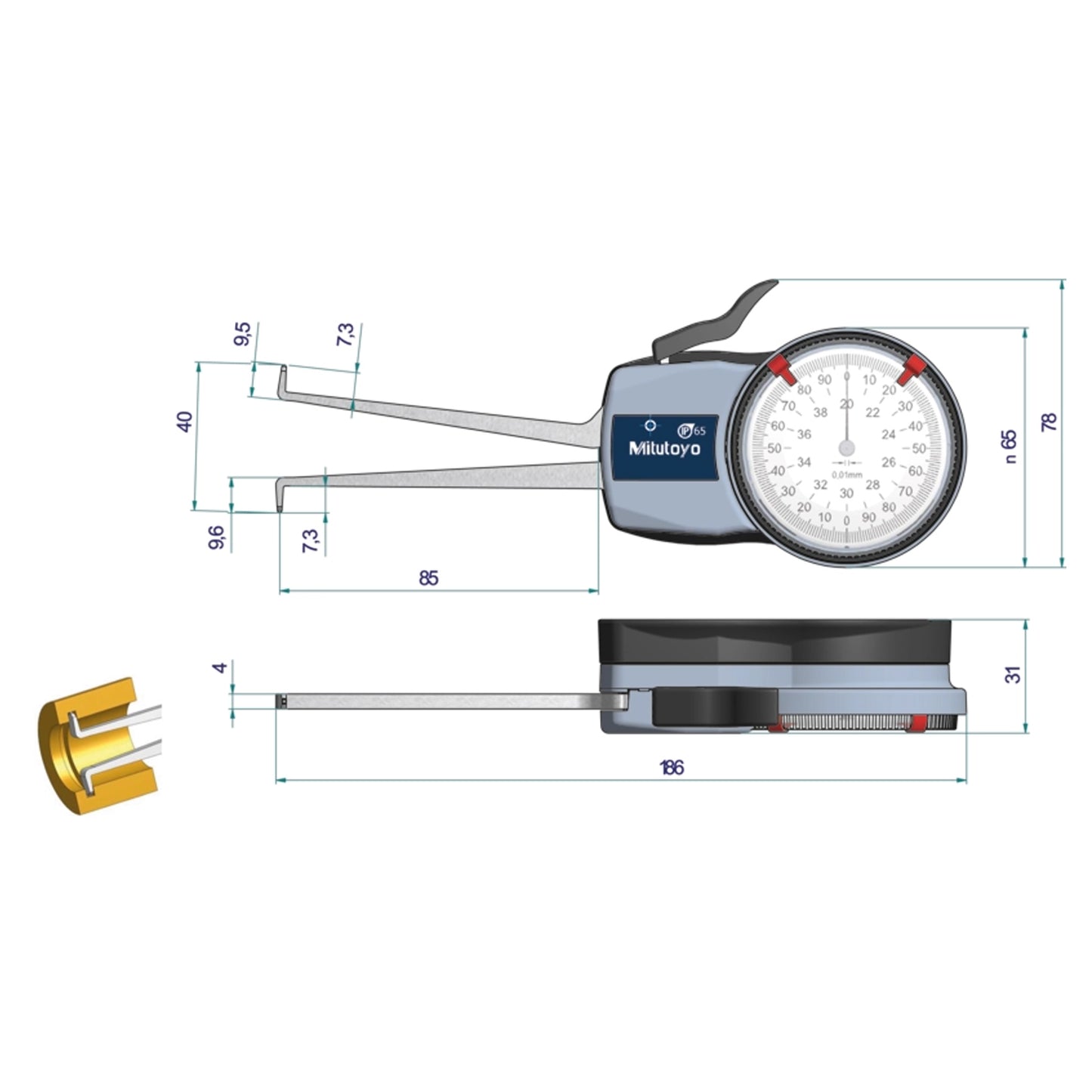

technical drawings
PDF downloads
accessories
