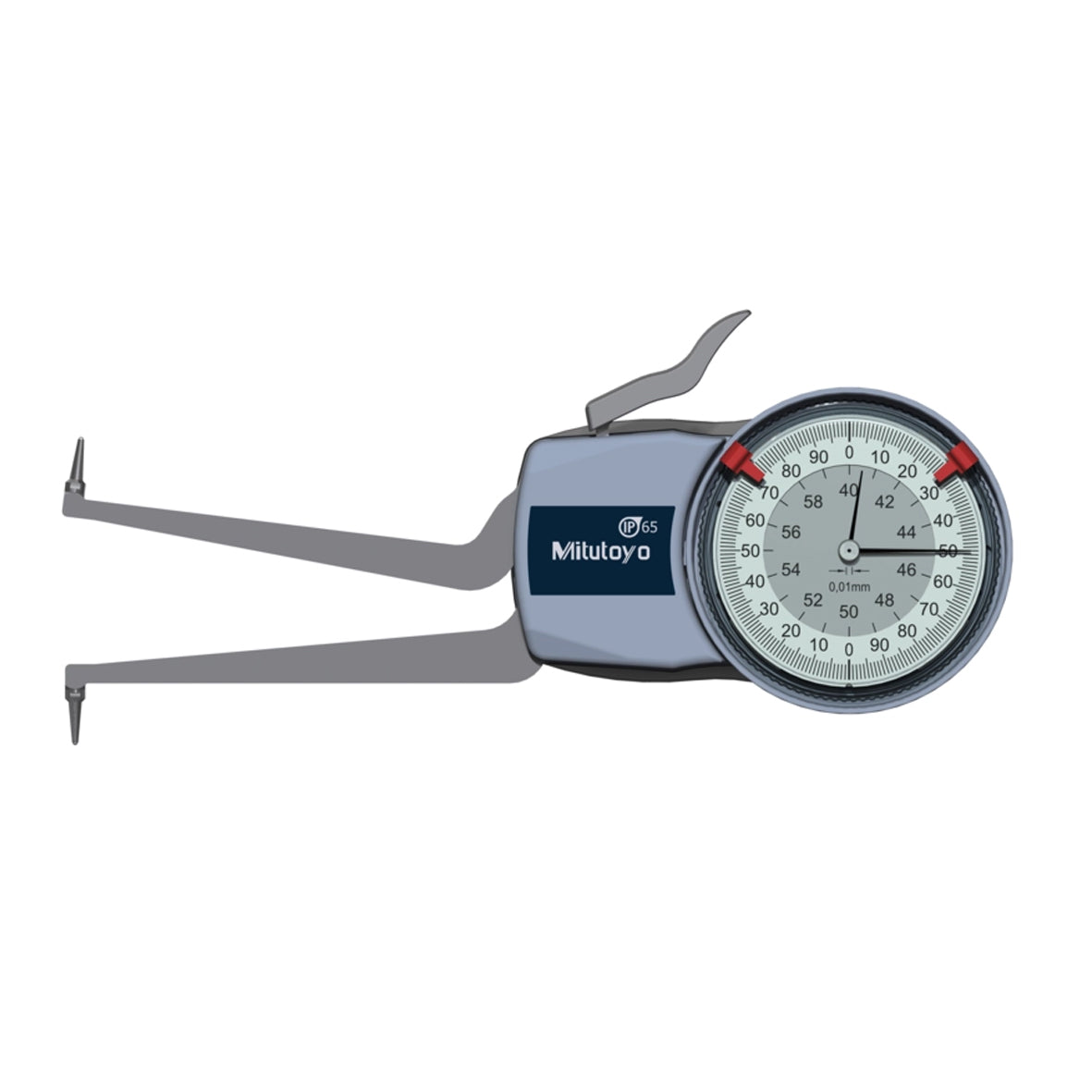

Mitutoyo 209-305 Inside Dial Caliper Gauge, Range 40-60mm, Graduation 0.01mm
SKU:Code: 209-305
Sale
Sold out
Regular price
£457.50
Save: 25%
Sold out
Sale price
£457.50
Regular price
£610.00
Excl. VAT
Versatile gauge for measuring internal groove diameter. IP65 rating provides good protection in adverse environments where the gauge is subject to splashing by cutting fluid or coolant.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 40-60mm
- display type Non-Digital
- graduations 0.01mm
- ip rating IP65
- measuring units Metric
- measuring contact carbide ball ø1 mm
- brand Mitutoyo
description
description
A Mitutoyo internal dial caliper gauge designed for use as a comparator, to be set up using a setting ring or micrometer. The caliper is spring loaded and makes point contact at constant measuring force.

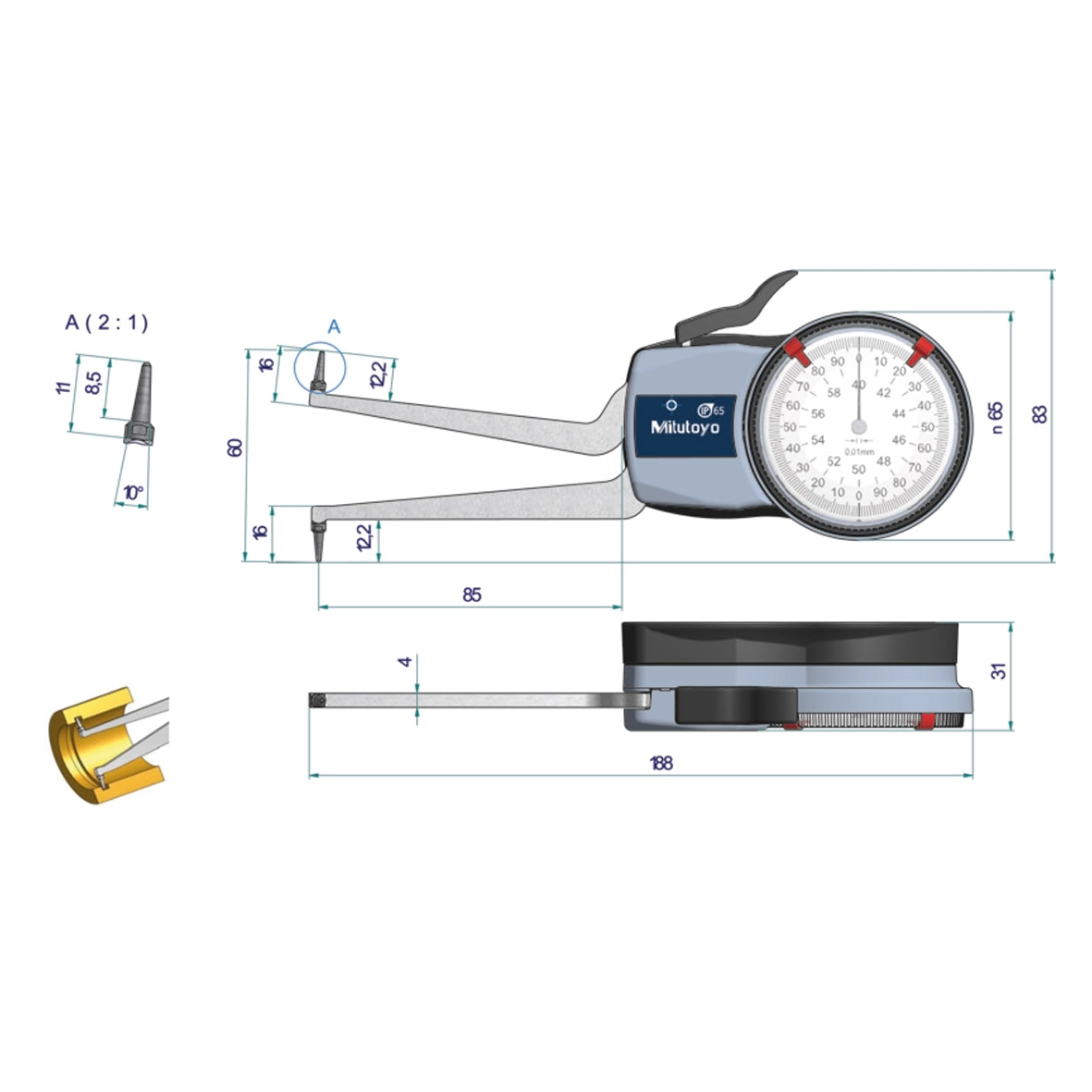

technical drawings
PDF downloads
accessories
