Mitutoyo

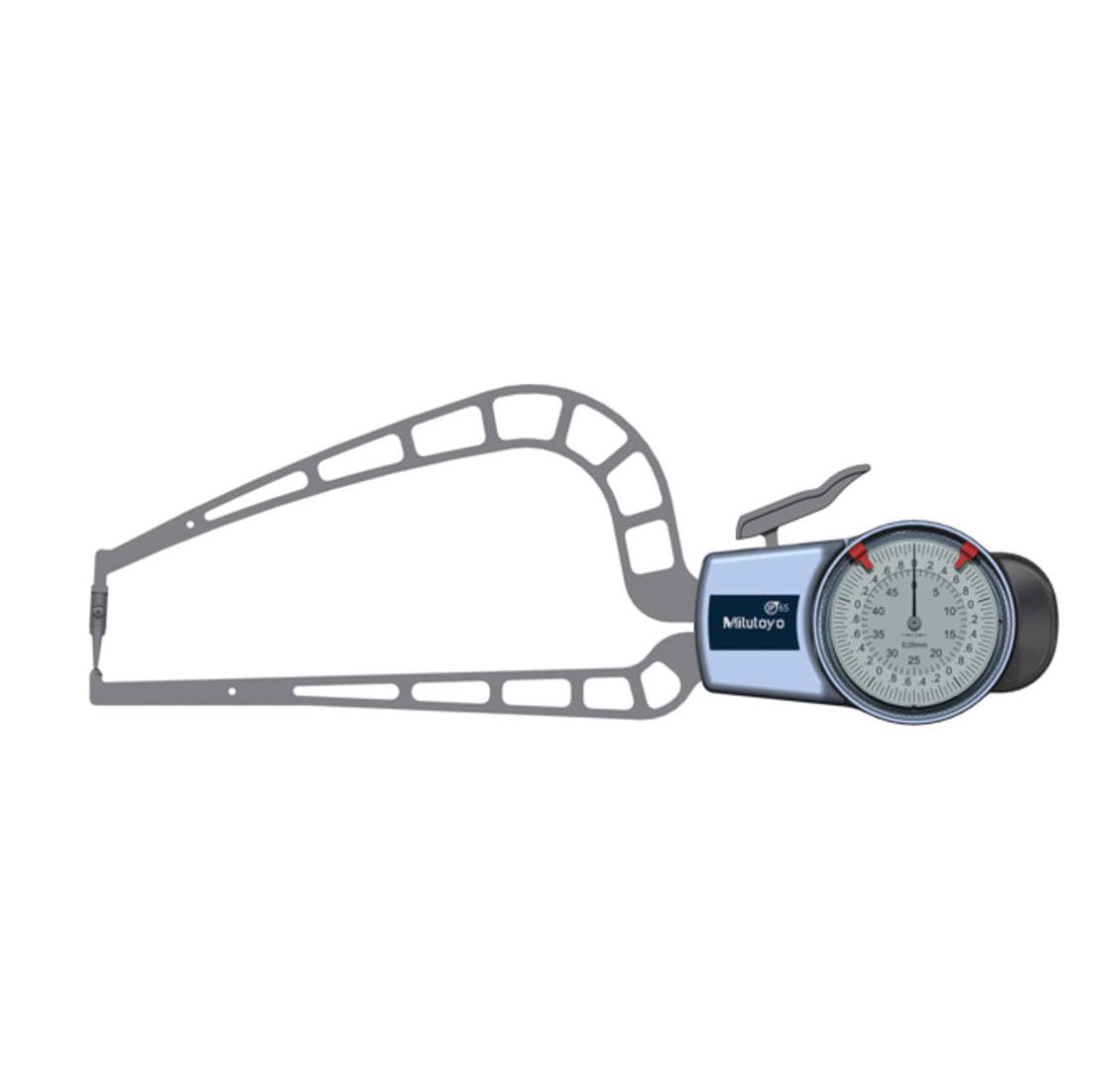

209-922 Outside Dial Caliper Gauge, Range 0-50mm, Graduation 0.05mm
SKU:Code: 209-922
Sale
Sold out
Regular price
£633.00
Save: 25%
Sold out
Sale price
£633.00
Regular price
£844.00
Excl. VAT
This analog External Dial Caliper Gauge offers you the following benefits:
Excellent resistance against water and dust (IP65 protection level)
Optimized measuring force
Ergonomically designed to lie securely in your hand when measuring
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type External
- range 0-50mm
- display type Non-Digital
- graduations 0.05mm
- ip rating IP65
- measuring units Metric
- measuring contact carbide ball ø3 mm / bevel
description
description
Versatile gauge with a choice of arm configurations suitable for measuring external groove diameter and other hard-to-measure features in addition to rapid measurement of flat stock thickness at some distance from an edge. IP65 rating provides good protection in adverse environments where the gauge is subject to splashing by cutting fluid or coolant.

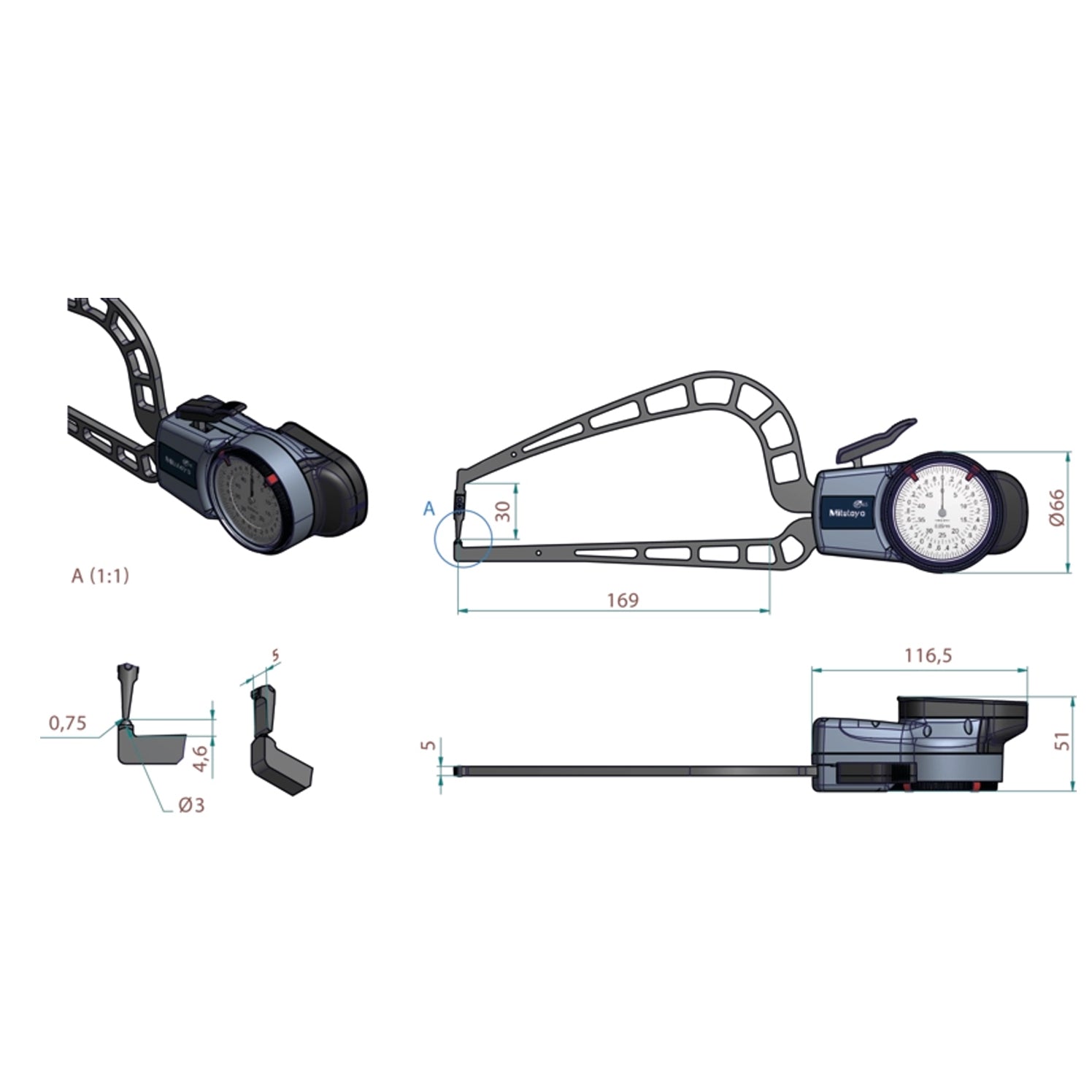

technical drawings
PDF downloads
accessories
