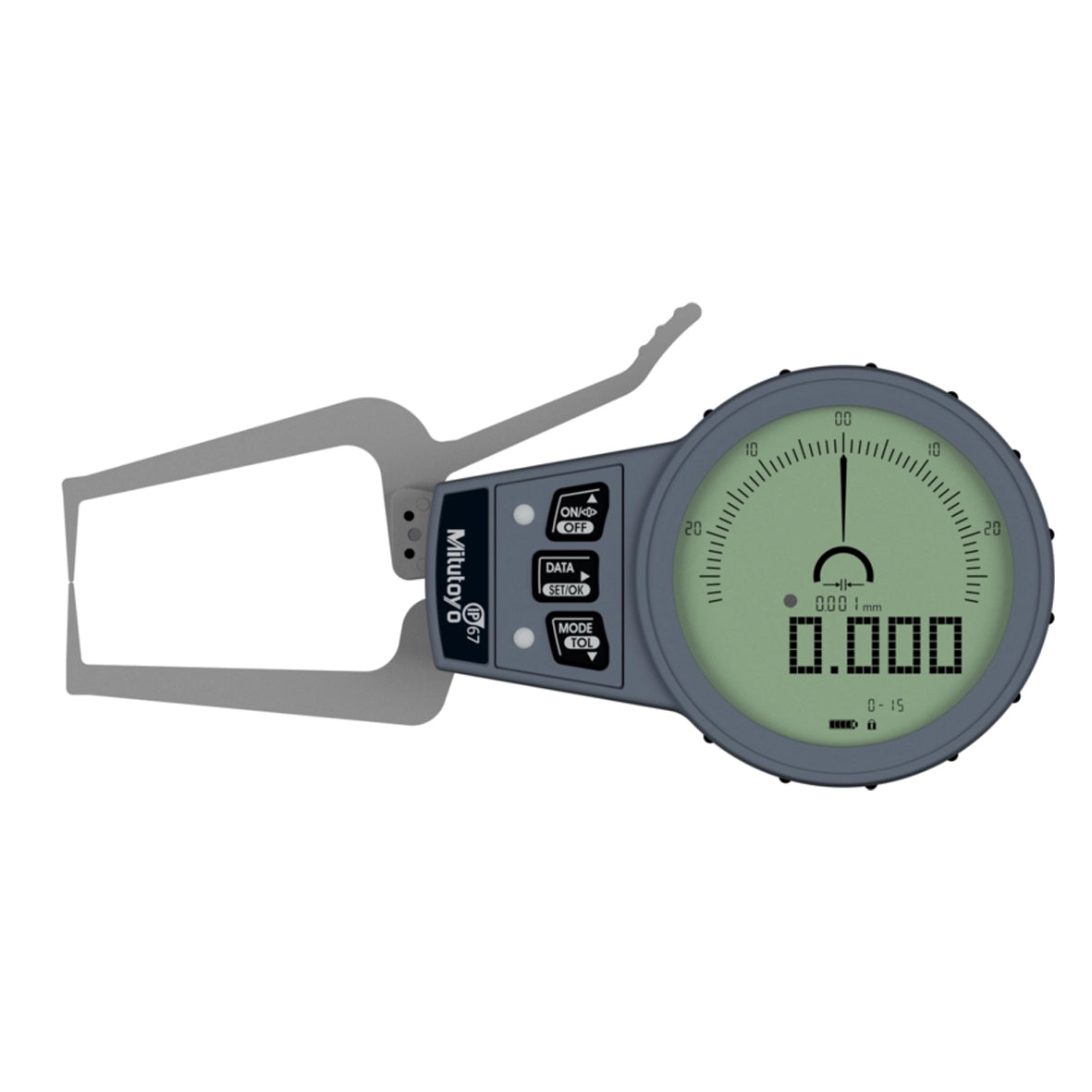

209-926 Digimatic Digital Outside Caliper Gauge, Range 0-15mm, Resolution 0.001mm, 0.002mm, 0.005mm, 0.01 mm
SKU:Code: 209-926
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type External
- range 0-15mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01mm
- accuracy 0.015mm
- ip rating IP67
- measuring force 1.3 - 1.5 N
- measuring units Metric
- measuring contact carbide bevel
- fig Fig. 1
Versatile gauge with a choice of arm configurations suitable for measuring grooves and other hard-tomeasure features. IP67 rating provides maximum confidence for use in adverse environments where the gauge is subject to splashing by cutting fluid or coolant. Bargraph provides a quick analogue view of the result of measurement. GO/NO-GO judgement function: an in-tolerance judgement result is indicated by the green LED and an out-of-tolerance judgement by the red. Data output port that enables incorporation into measurement networking and statistical process control systems.
