Mitutoyo

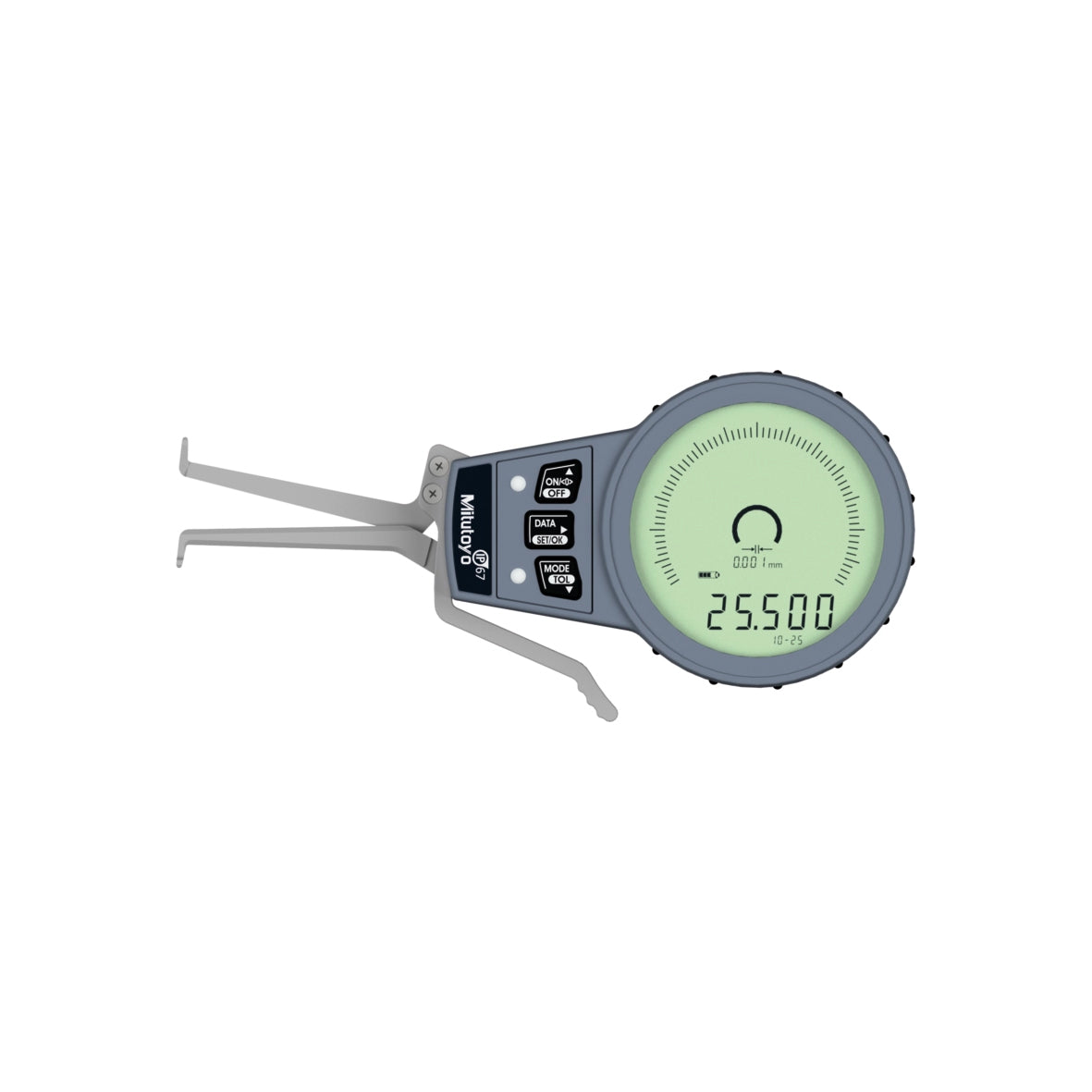

209-929 Digimatic Digital Inside Caliper Gauge, Range 10-25mm, Resolution 0.001mm, 0.002mm, 0.005mm, 0.01 mm

SKU:Code: 209-929

Sale Sold out Regular price £563.25
Save: 25% Sold out Sale price £563.25 Regular price £751.00
Excl. VAT
Versatile gauge with a choice of arm configurations suitable for measuring grooves and other hard-tomeasure features.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Internal
  • range 10-25mm
  • display type Digital
  • resolution 0.001 0.002 0.005 0.01mm
  • accuracy 0.01mm
  • ip rating IP67
  • measuring force 0.8 - 1.3 N
  • measuring units Metric
  • measuring contact carbide ball ø1 mm
  • fig Fig. 3
description

Versatile gauge with a choice of arm configurations suitable for measuring grooves and other hard-tomeasure features. IP67 rating provides maximum confidence for use in adverse environments where the gauge is subject to splashing by cutting fluid or coolant. Bargraph provides a quick analogue view of the result of measurement. GO/NO-GO judgement function: an in-tolerance judgement result is indicated by the green LED and an out-of-tolerance judgement by the red. Data output port that enables incorporation into measurement networking and statistical process control systems.
