Mitutoyo

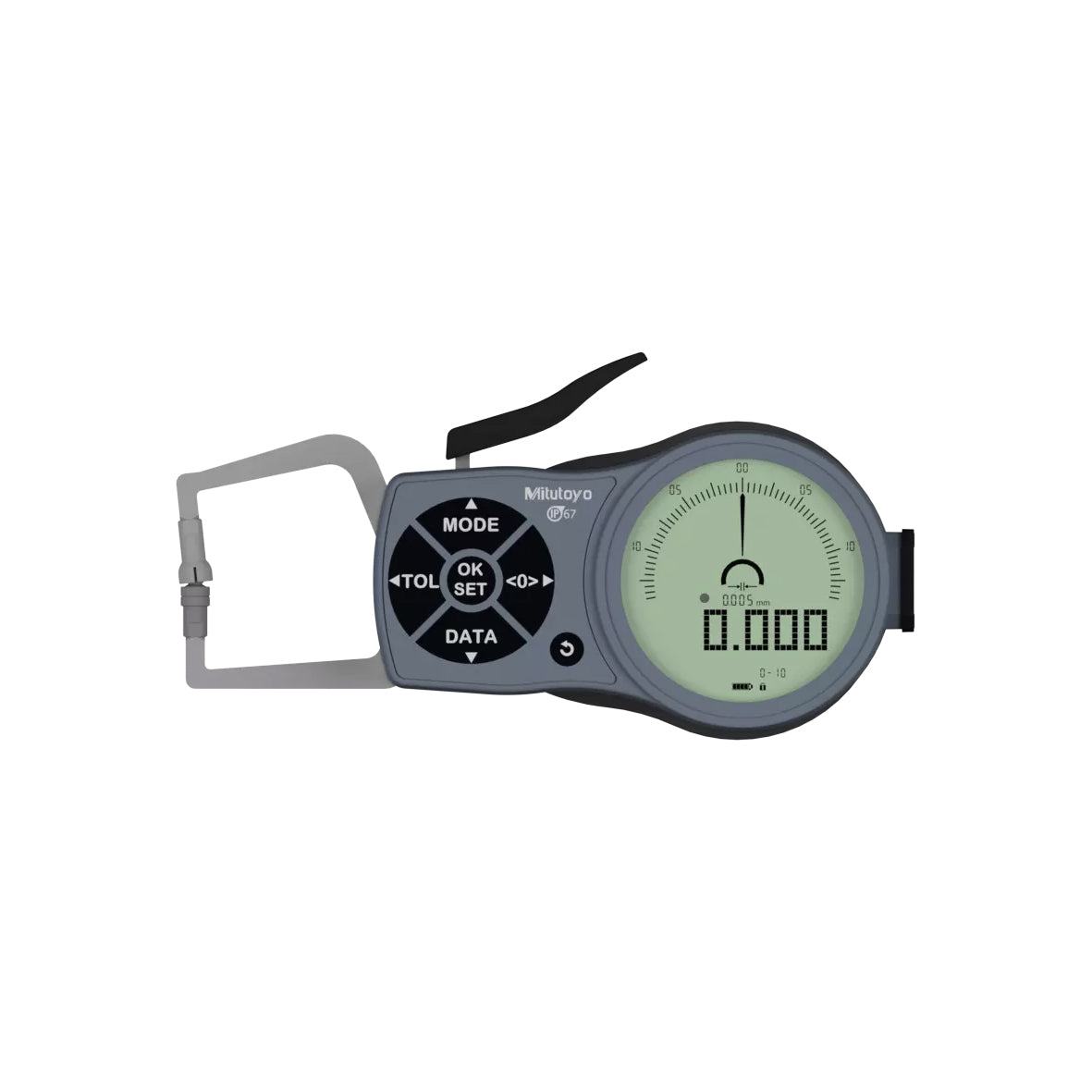

209-931 Digimatic Digital Outside Caliper Gauge, Range 0-10mm, Resolution 0.001mm, 0.002mm, 0.005mm,0.01mm, 0.02mm, 0.05mm
SKU:Code: 209-931
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type External
- range 0-10mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- accuracy 0.02mm
- ip rating IP67
- measuring force 0.8 - 1.2 N
- measuring units Metric
- measuring contact disc measuring face ø6 mm
- fig Fig. 3
Versatile gauge with a choice of arm configurations suitable for measuring grooves and other hard-tomeasure features in addition to rapid measurement of flat stock at some distance from an edge.IP67 rating provides maximum confidence for use in adverse environments where the gauge is subject to splashing by cutting fluid or coolant. Bargraph provides a quick analogue view of the result of measurement. GO/NO-GO judgement function: an in-tolerance judgement result is indicated by the green LED and an out-of-tolerance judgement by the red. Data output port that enables incorporation into measurement networking and statistical process control systems.
