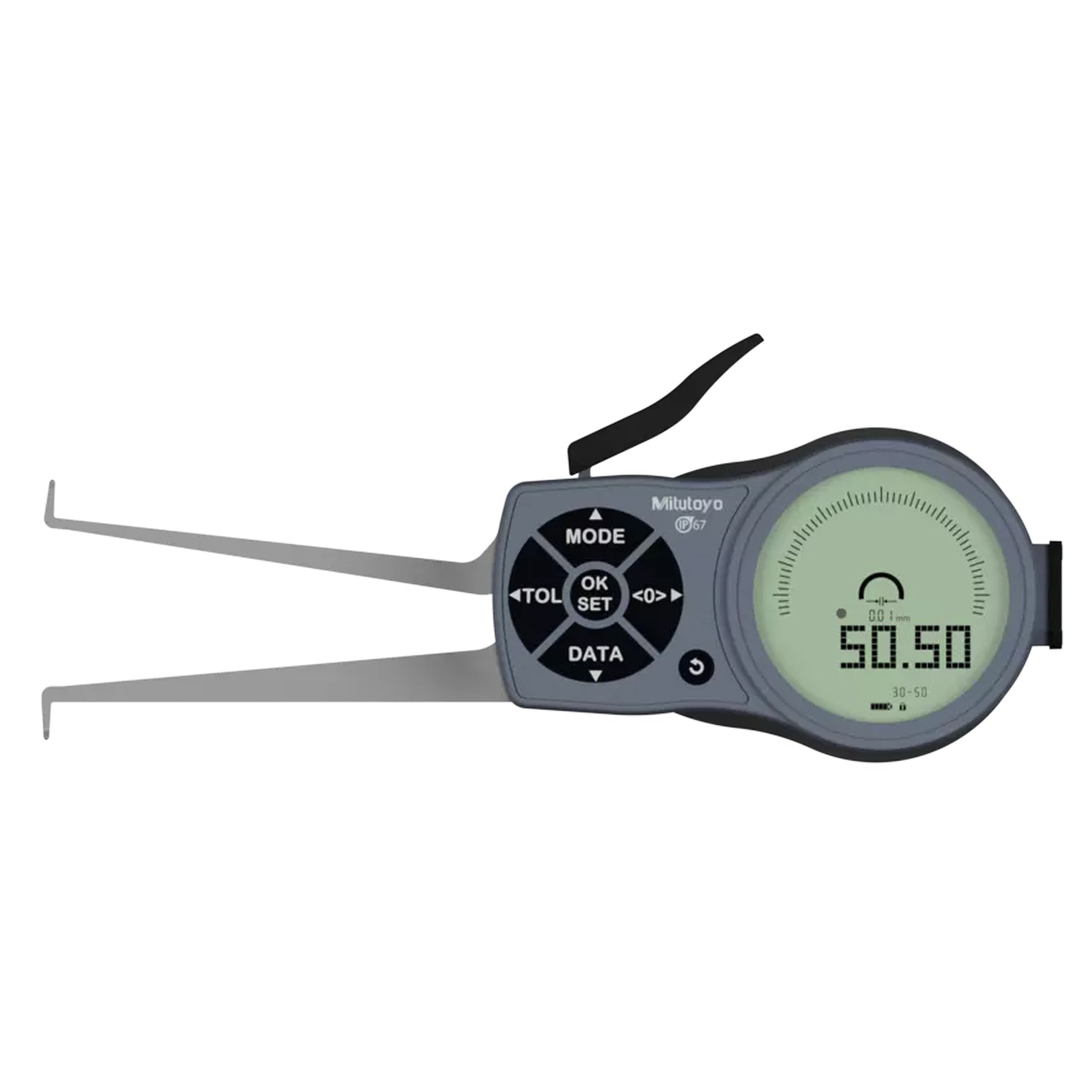

Mitutoyo 209-938 Digimatic Digital Inside Caliper Gauge, Range 30-50mm, Resolution 0.001mm, 0.002mm, 0.005mm,0.01mm, 0.02mm, 0.05mm
SKU:Code: 209-938
Sale
Sold out
Regular price
£480.00
Save: 25%
Sold out
Sale price
£480.00
Regular price
£640.00
Excl. VAT
Versatile gauge for measuring internal groove diameter.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Internal
- range 30-50mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- accuracy 0.030mm
- ip rating IP67
- measuring force 1.1 - 1.6 N
- measuring units Metric
- measuring contact carbide ball ø1 mm
- fig Fig. 2
- brand Mitutoyo
description
description
Versatile gauge for measuring internal groove diameter. IP67 rating provides maximum confidence for use in adverse environments where the gauge is subject to splashing by cutting fluid or coolant. Bargraph provides a quick analogue view of the result of measurement. GO/NO-GO judgement function: an in-tolerance judgement result is indicated by the green LED and an out-of-tolerance judgement by the red. Data output port that enables incorporation into measurement networking and statistical process
control systems.

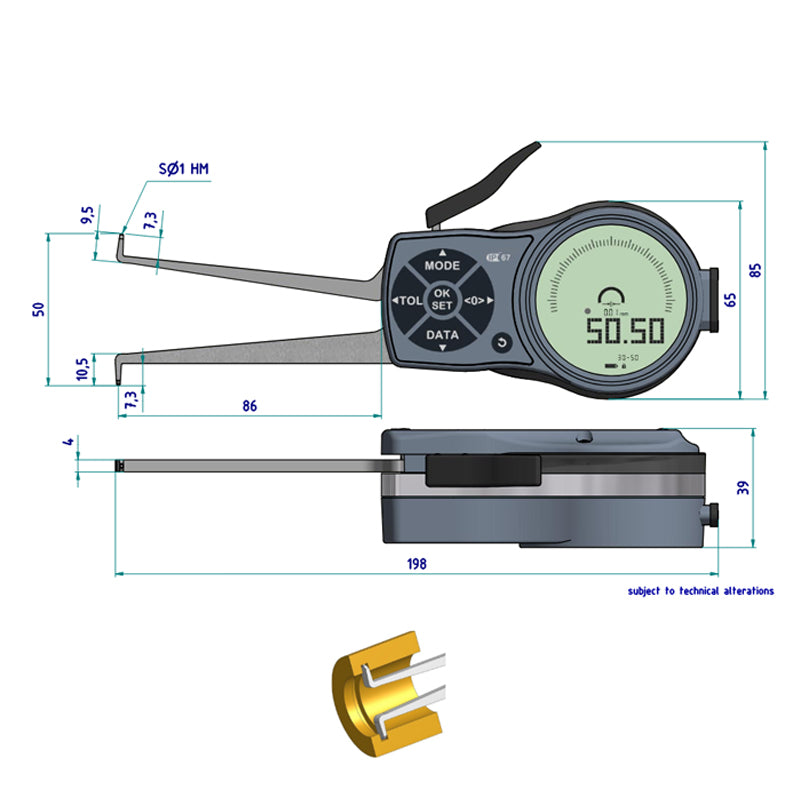

technical drawings
