Specification
Specification
- type Internal
- range 50-80mm
- display type Digital
- resolution 0.001 0.002 0.005 0.01 0.02 0.05mm
- accuracy 0.04mm
- ip rating IP67
- measuring force 1.2 - 1.7 N
- measuring units Metric
- measuring contact carbide ball ø2 mm
- fig Fig. 3
description
description

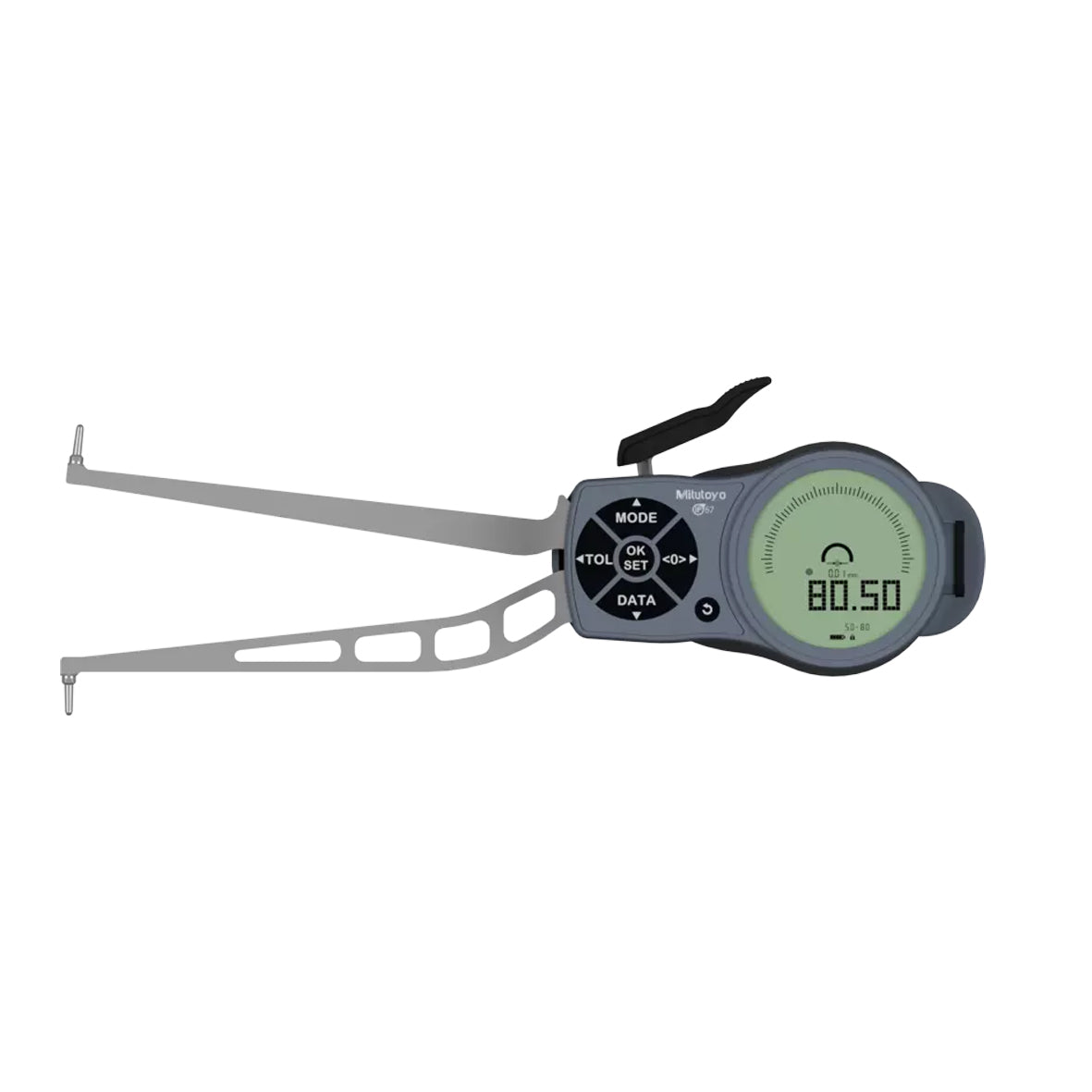

Versatile gauge for measuring internal groove diameter. IP67 rating provides maximum confidence for use in adverse environments where the gauge is subject to splashing by cutting fluid or coolant. Bargraph provides a quick analogue view of the result of measurement. GO/NO-GO judgement function: an in-tolerance judgement result is indicated by the green LED and an out-of-tolerance judgement by the red. Data output port that enables incorporation into measurement networking and statistical process
control systems.
