Mitutoyo

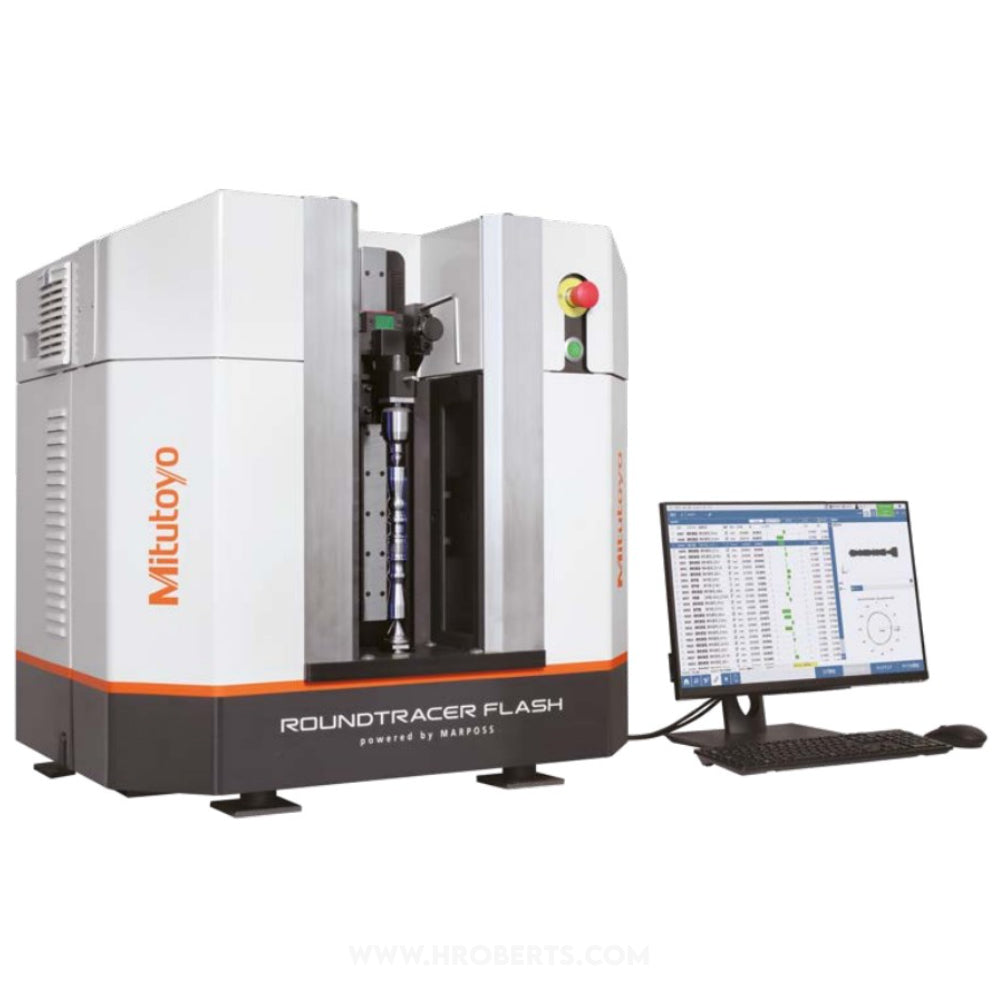

Roundtracer Flash S100
SKU:Code: 211-581-01MEU
Item priced on application.
Request a Price
The Roundtracer Flash is a flexible optical measuring system, fast and precise. The instrument is a good solution for accurate quality control in a laboratory as well as in the production environment.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range Z-axis= 100mm / Ø60mm
description
description
The Roundtracer Flash offers you following benefits:
- Dimensional, position, form analysis in static or dynamic mode.
- Image sensors integrated in a fixed position across the product structure to cover the entire measurement range.
- Less mechanical stress
- Side-by-side 2D image architecture
- Short cycle time
- One-click measuring cycle activation
- Graphical user interface via touchscreen monitor
- Easy part loading
- Thread and camshaft measurement functionality
