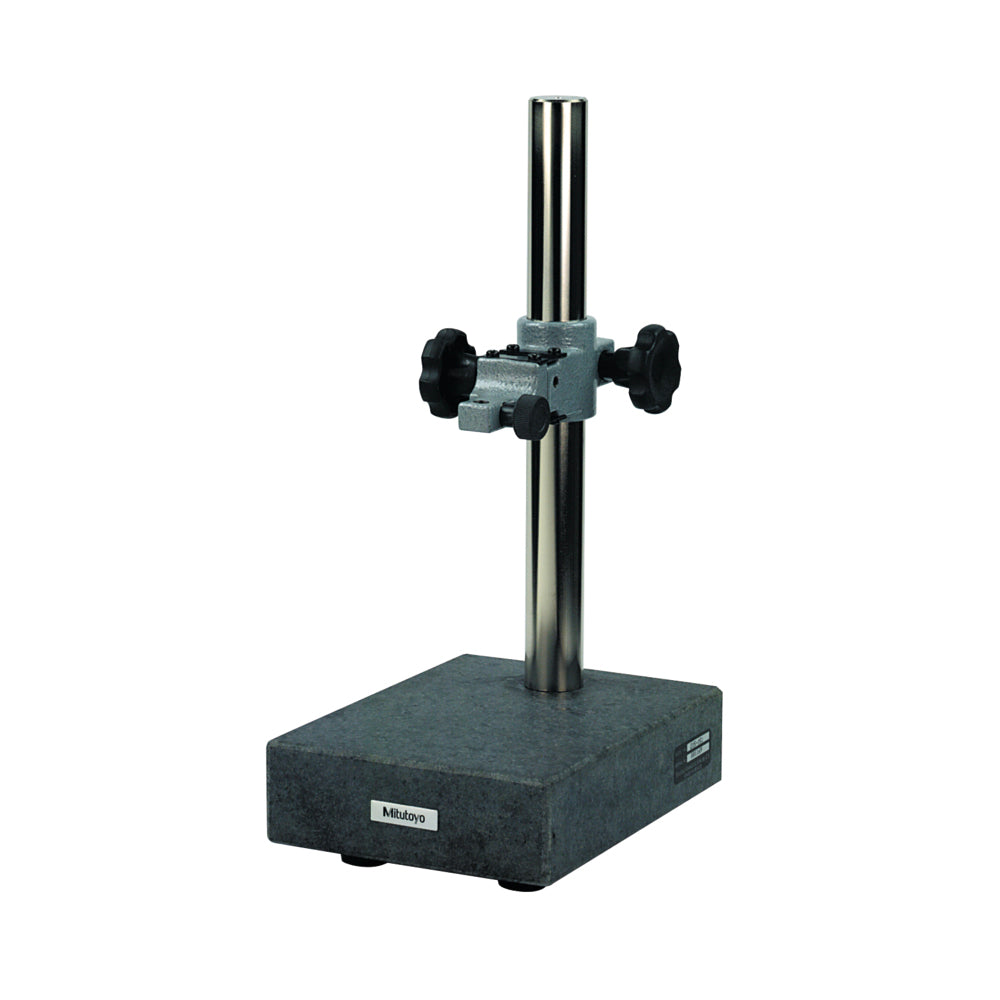

Mitutoyo 215-151-10 Granite Comparator Stand 150x200mm, Column Travel 0-250mm, With 1mm fine adustment
SKU:Code: 215-151-10
Sale
Sold out
Regular price
£454.50
Save: 25%
Sold out
Sale price
£454.50
Regular price
£606.00
Excl. VAT
The base is made of granite that stays free of burrs due to its fine grain composition and the base will stay free of corrosion
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Granite Comparator Stand
- remarks With Fine Adjustment of 1mm Range
- column travel 0-250mm
- base size 150 x 200 x 50mm
- acceptable stem sizes Diameter 8mm 9.53mm 3/8"
- column style Plain
- column dia 30mm
- column length 300mm
- base flatness 3μm
description
description
| Column Ø: |
30 mm
|
| Max. measurement height: |
260 mm
|
| Fine adjustment: |
1 mm
|
| Stem hole ø: |
ø 3/8" / 9.53 mm , 8 mm with bush (standard accessory)
|
| Table flatness: |
3 µm
|
| Perpendicularity table-stem hole: |
0.2/100 mm/mm
|
| Mass: |
7.5 kg
|
| Delivered: |
With stem bush 9,53 mm (3/8") to 8 mm
|

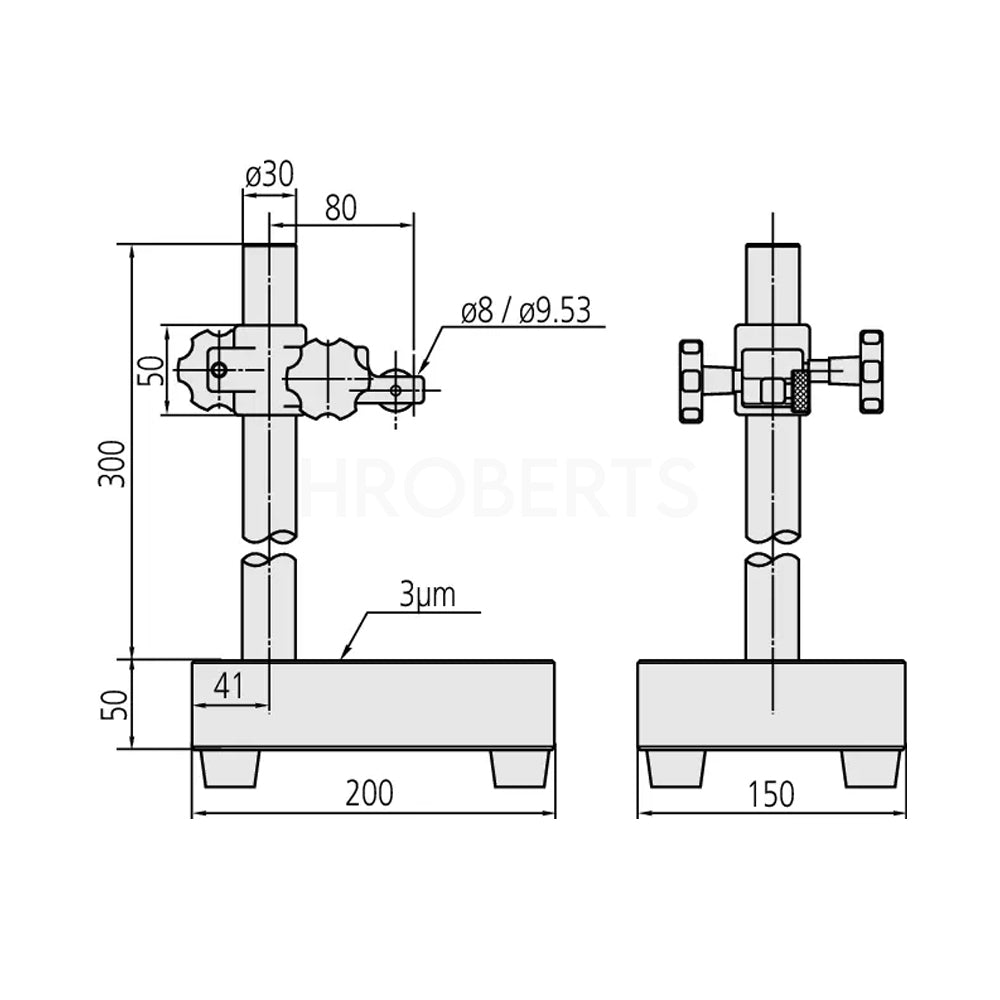

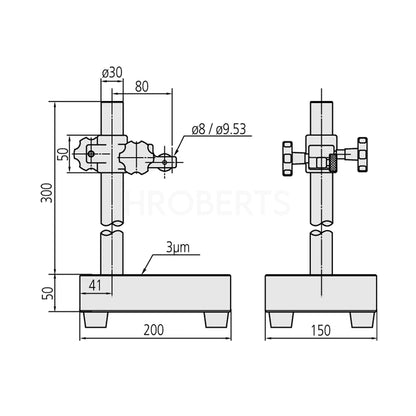

technical drawings
