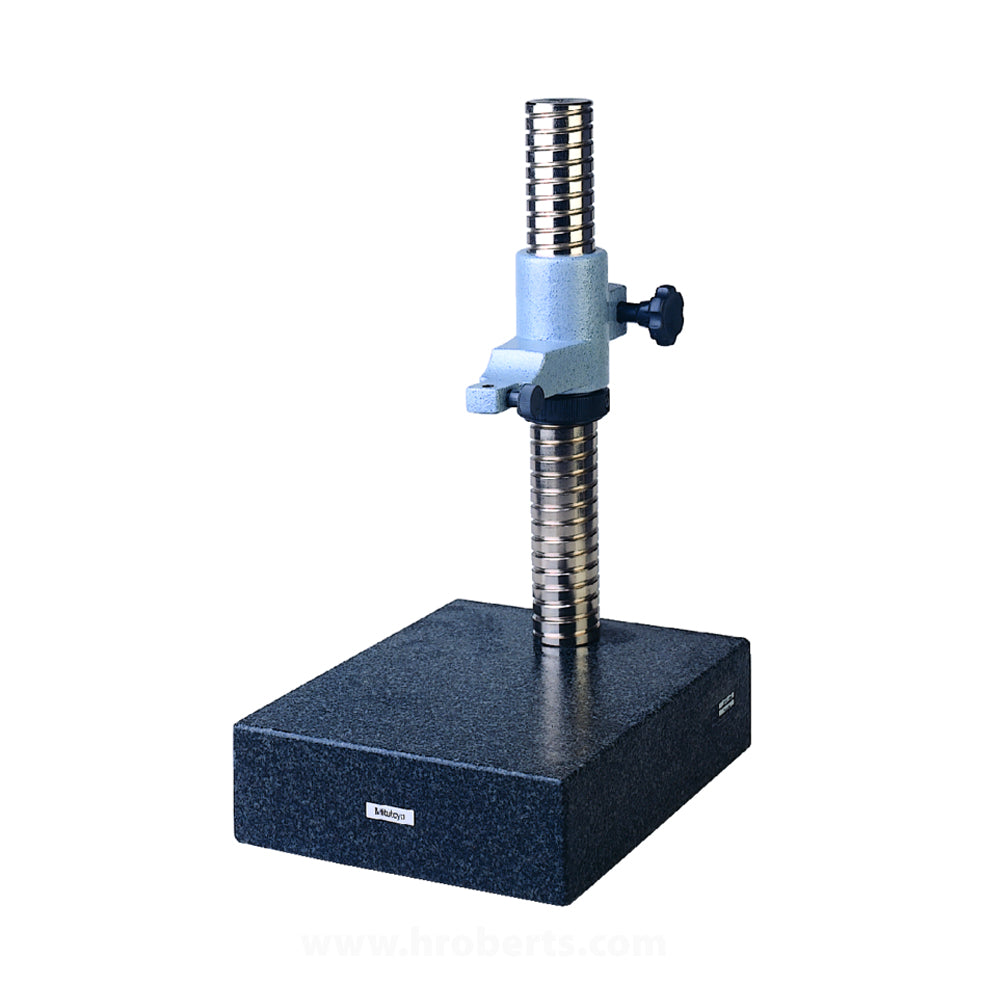

Mitutoyo 215-156-10 Granite Comparator Stand 250x300mm, Column Travel 0-275mm, With fine adustment over entire travel
SKU:Code: 215-156-10
Sale
Sold out
Regular price
£610.50
Save: 25%
Sold out
Sale price
£610.50
Regular price
£814.00
Excl. VAT
The base is made of granite that stays free of burrs due to its fine grain composition and the base will stay free of corrosion
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Granite Comparator Stand
- remarks With Fine Adjustment Over the Entire Travel
- column travel 0-275mm
- base size 300 x 250 x 80mm
- acceptable stem sizes Diameter 8mm 9.53mm 20mm 3/8"
- column style Threaded
- column dia 50mm
- column length 400mm
- base flatness 3.5μm
description
description
| Column Ø: |
50 mm
|
| Max. measurement height: |
300 mm
|
| Fine adjustment: |
1 mm
|
| Stem hole ø: |
ø 20 mm, ø 3/8" / 9.53 mm 8 mm with bush
(standard accessory) |
| Table flatness: |
3.5 µm
|
| Perpendicularity table-stem hole: |
0.2/100 mm/mm
|
| Mass: |
27.5 kg
|
| Delivered: |
With stem bush 20 mm to 8 mm and 20 mm to 9,53 mm (3/8")
|

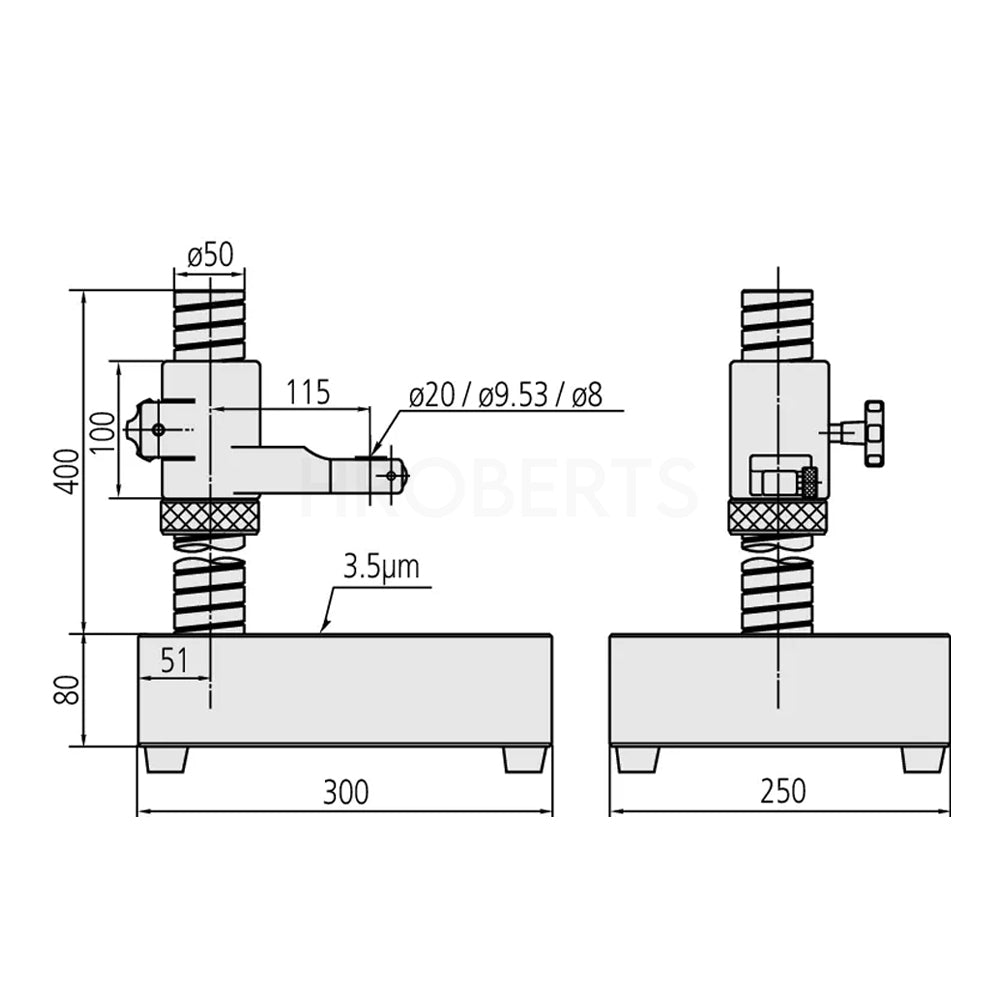

technical drawings
PDF downloads
accessories
