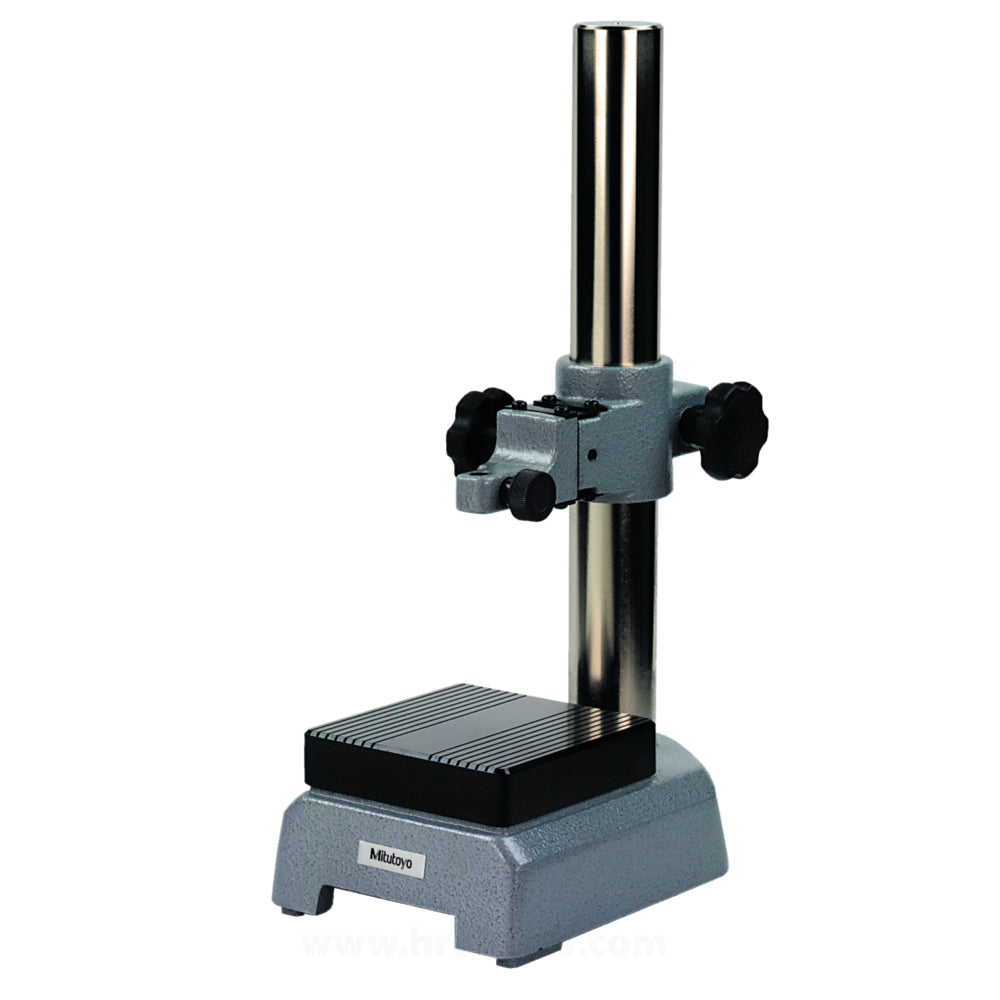

Mitutoyo 215-405-10 Comparator Stand, Column Travel 0-235mm, 110x110mm, Square Anvil
SKU:Code: 215-405-10
Sale
Sold out
Regular price
£549.75
Save: 25%
Sold out
Sale price
£549.75
Regular price
£733.00
Excl. VAT
Mitutoyo Comparator Stands consists of a very stable, cast-iron base and upright column with a mounting bracket that features fine adjustment. The grid type anvil prevents very flat workpieces from wringing to it
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Comparator Stand
- remarks With Fine Adjustment of 1mm Range
- column travel 0-235mm
- serrated anvil w x d 110 x 110mm
- acceptable stem sizes Diameter 8mm 9.53mm 3/8"
- column style Plain
- column dia 40mm
- column length 320mm
- base flatness 2.3μm
description
description
| Effective table dimensions: |
110 x 110 mm
|
| Column Ø: |
40 mm
|
| Max. measurement height: |
235 mm
|
| Fine adjustment: |
1 mm
|
| Stem hole ø: |
ø 3/8" / 9.53 mm , 8 mm with bush (standard accessory)
|
| Perpendicularity table-stem hole: |
0,4/100 mm
|
| Table flatness: |
2,3 µm
|
| Mass: |
10.9 kg
|
| Delivered: |
With stem bush 9,53 mm (3/8") to 8 mm
|

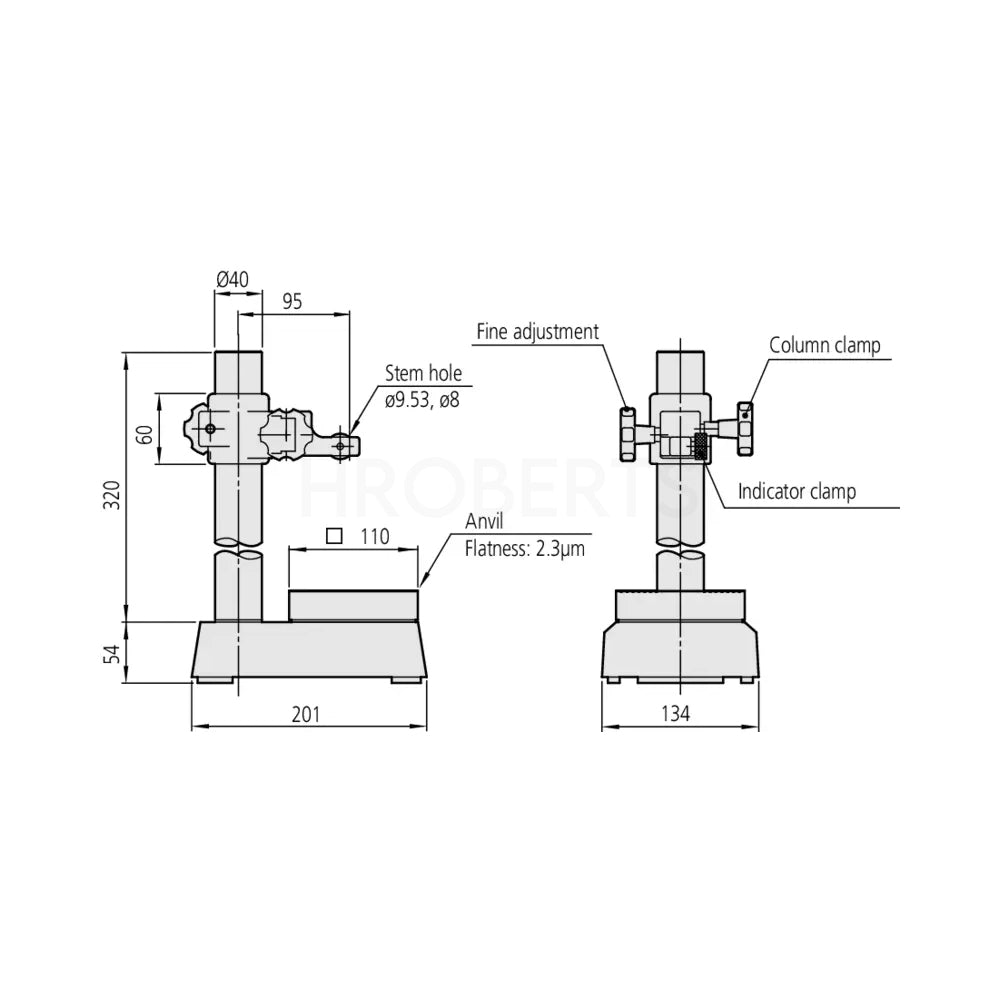

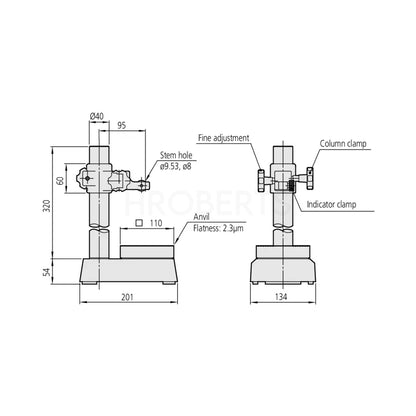

technical drawings
PDF downloads
