Mitutoyo 215-505-10 Comparator Stand, Column Travel 0-275mm, 150x150mm, Square Anvil
SKU:Code: 215-505-10
Sale
Sold out
Regular price
£720.00
Save: 25%
Sold out
Sale price
£720.00
Regular price
£960.00
Excl. VAT

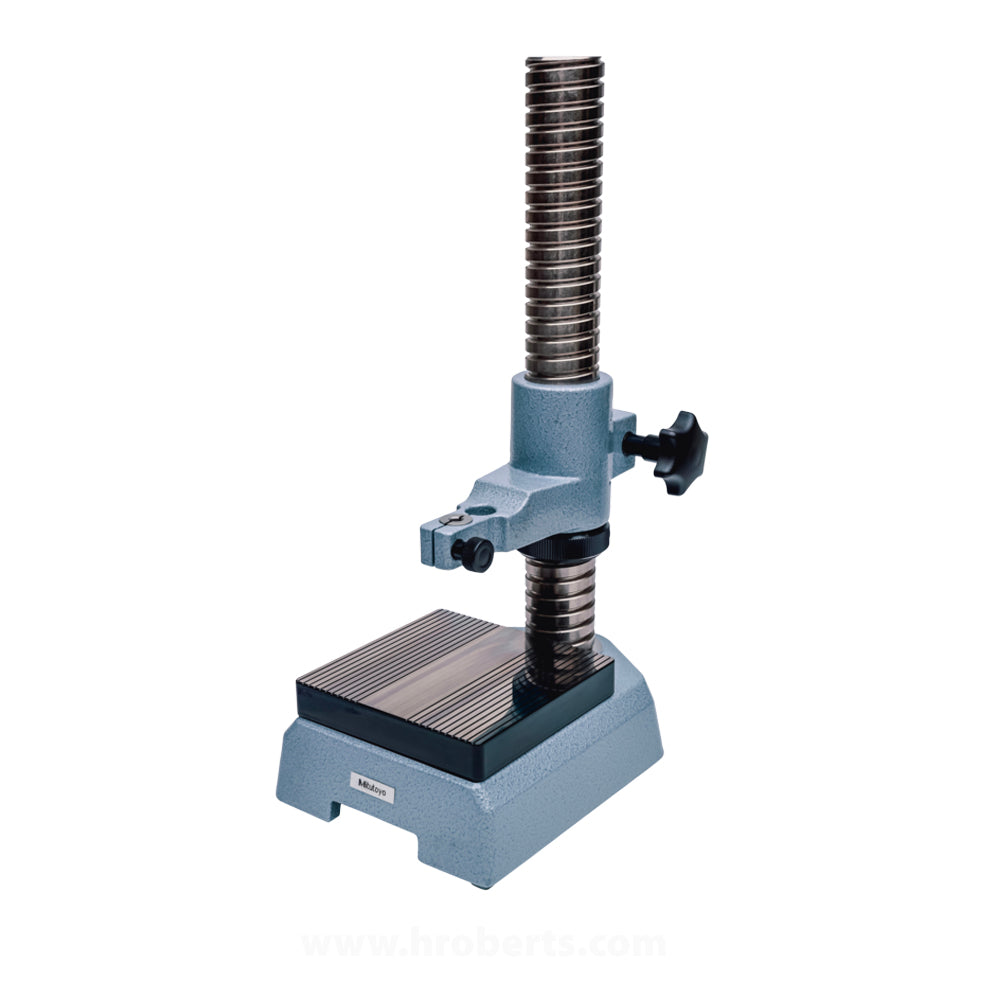

Mitutoyo Comparator Stands consists of a very stable, cast-iron base and upright column with a mounting bracket that features fine adjustment. The grid type anvil prevents very flat workpieces from wringing to it
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Comparator Stand
- remarks With Fine Adjustment Over the Entire Travel
- column travel 0-275mm
- serrated anvil w x d 150 x 150mm
- acceptable stem sizes Diameter 8mm 9.53mm 20mm 3/8"
- column style Threaded
- column dia 50mm
- column length 400mm
- base flatness 2.3μm
description
description
| Effective table dimensions: |
150 x 150 mm
|
| Column Ø: |
50 mm
|
| Max. measurement height: |
275 mm
|
| Fine adjustment: |
Screw on column
|
| Stem hole ø: |
ø 20 mm, ø 3/8" / 9.53 mm, 8 mm with bush
(standard accessory) |
| Perpendicularity table-stem hole: |
0,4/100 mm
|
| Table flatness: |
2,3 µm
|
| Mass: |
19.7 kg
|
| Delivered: |
With stem bush 20 mm to 8 mm and 20 mm to 9,53 mm (3/8")
|

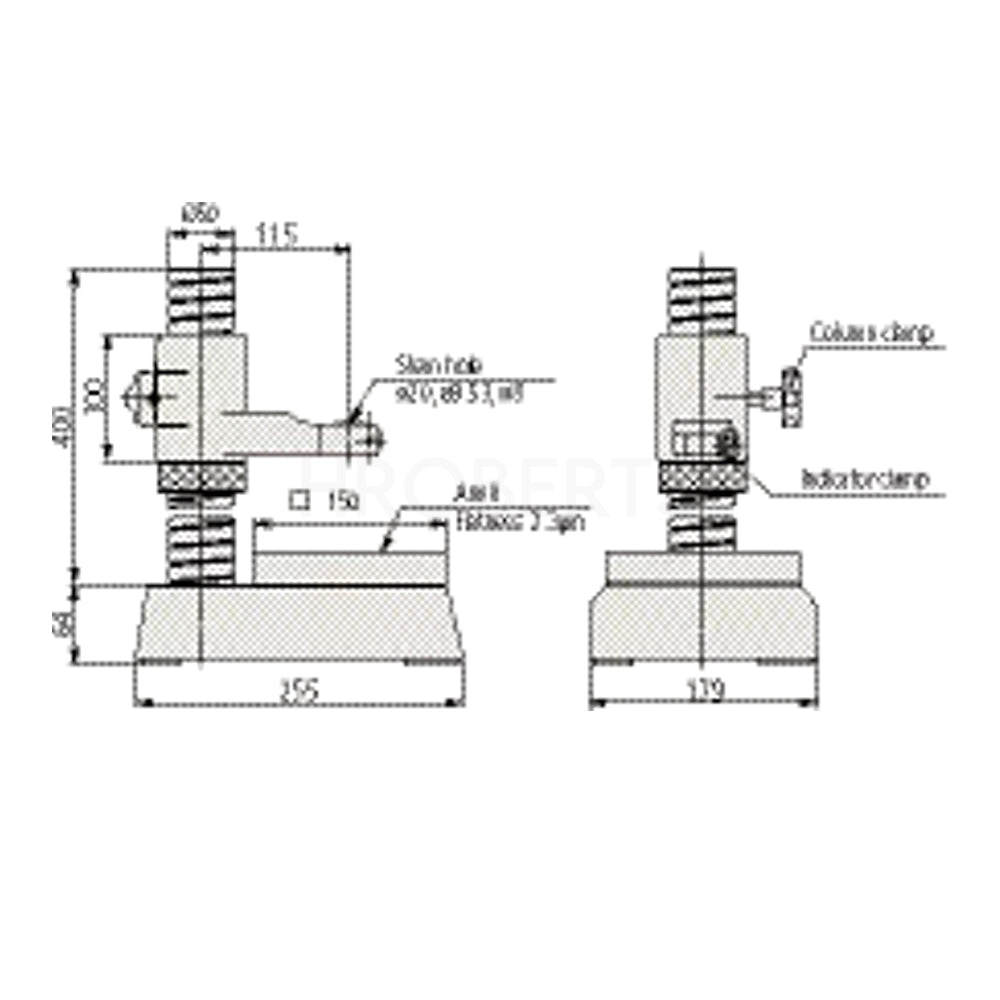

technical drawings
