Mitutoyo

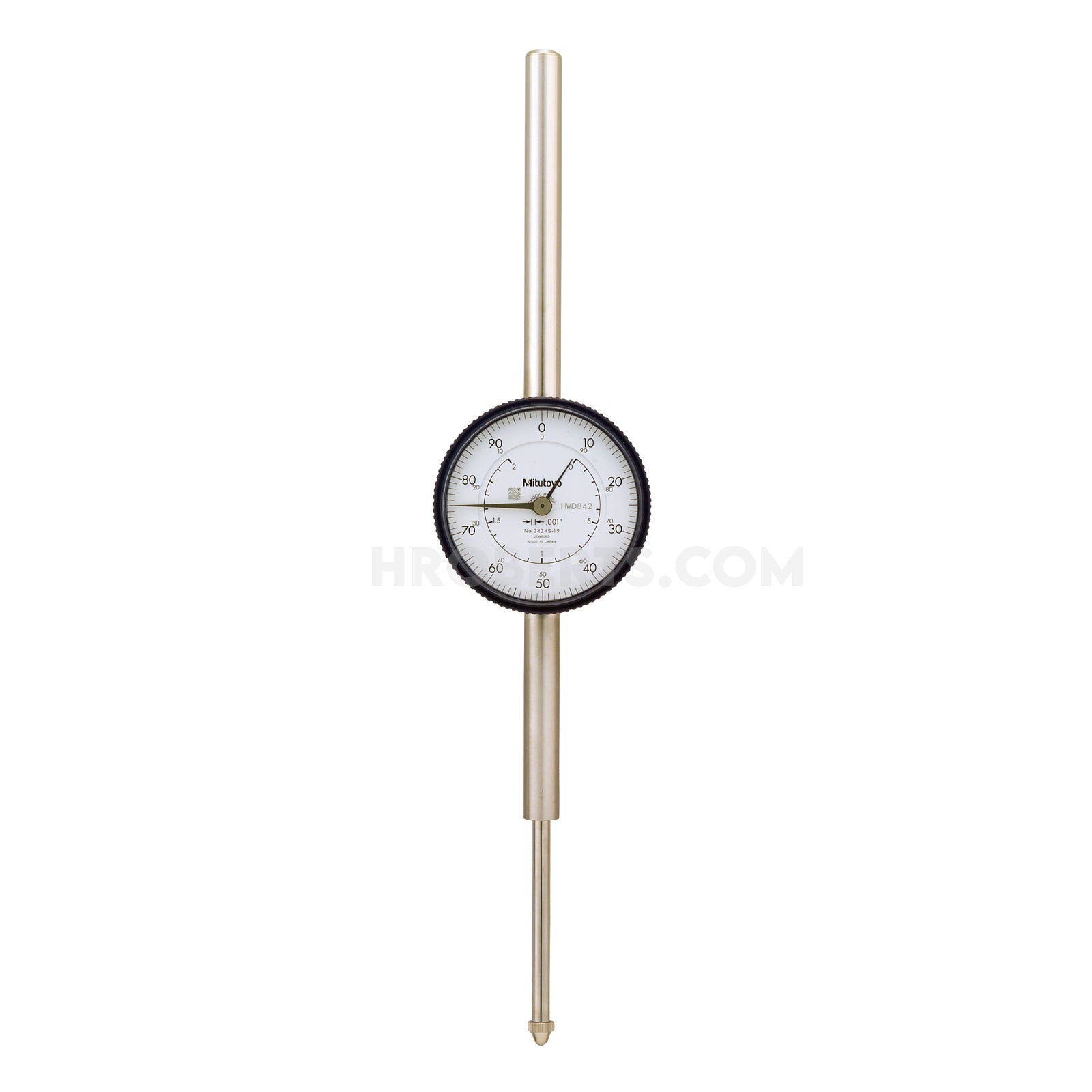

2424A-19 Dial Indicator, Graduation 0.001", Range 2.0", Scale 0-100, Bezel Diameter 2.24"
SKU:Code: 2424A-19
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Dial Indicator
- range 2.0"
- range rev 0.1"
- display type Non-Digital
- graduations 0.001"
- bezel dia 2.24"
- measuring force 2.5 N or Less
- measuring units Imperial
- stem dia 0.375"
- remarks Dial Gauge Series 2
- scale 0-100
- contact point thread 4-48UNF
- back Centre Lug
The bezel clamp 21RZA065, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools. Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration. The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The grand gear is made of stainless steel with
high resistance to wear and deformation. Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance. A carbide contact point is used.
