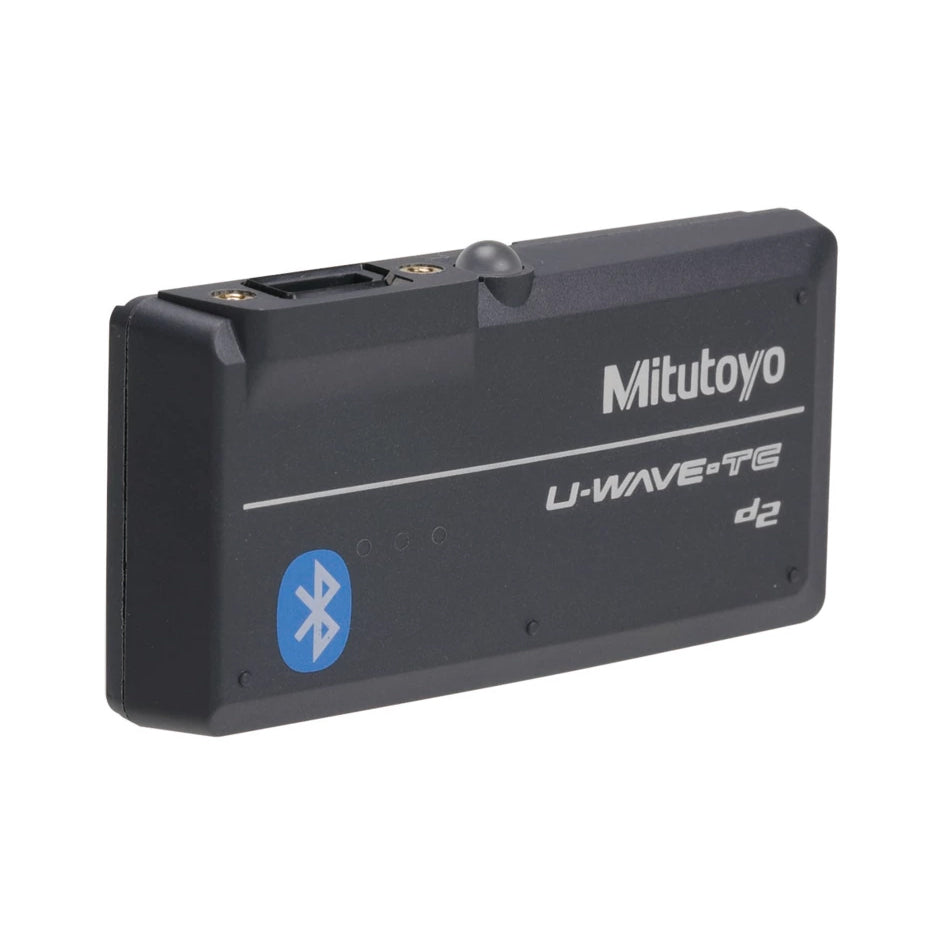

Mitutoyo 264-624 U-WAVE-TCB IP67 Transmitter - IP67 Calipers up to 300mm / 12"
SKU:Code: 264-624
Sale
Sold out
Regular price
£200.00
Save: 17%
Sold out
Sale price
£200.00
Regular price
£242.00
Excl. VAT
Bluetooth® communication allows for wireless transmission of measurement data from digimatic micrometers and calipers to PCs, smartphones, tablets, and other terminals alike.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- type U-WAVE-T Transmitters
description
description
- Bluetooth® communication allows for wireless transmission of measurement data from digimatic micrometers and calipers to PCs, smartphones, tablets, and other terminals alike.
- U-WAVE is now available with Bluetooth® wireless technology. With no receiver required, one PC can connect up to seven units with Mitutoyo U-WAVE Bluetooth ®. For tougher shop floor usage, dust / water-proof models are also available.
- Bluetooth® communication not only allows for cost reduction, as it does not require the conventional dedicated receiver unit, but it also improves operability.
- Communication distance of approx. 16 m in an open space and approx. 10 m in a factory environment.
- The application software for transferring measurement data to smartphones, tablets, or PCs
| Model: |
U-WAVE-TCB
|
| Power supply: |
Battery CR2032 x 1 pcs.
|
| Wireless communication protocol: |
Bluetooh 4.2 Low Energy
|
| Modulation method: |
FH-SS (Frequency Hopping Spread Spectrum Method))
|
| Type: |
U-WAVE-TCB
(U-WAVE fit Bluetooth) |
| Data reception indication: |
LED (green, red, orange)
|
| Communication distance: |
Approx.16 m (within visible range), 10 m (factory environment)
|
| Communication with measuring tool: |
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
|
| Communication frequency: |
2,4 GHz band
|
| Transmission output: |
3,2 mW (5 dBm) or below (class 2)
|
| OS compatibility: |
Windows 10, Android, iOS
|
| Battery life: |
WIN 10: approx. 3 month
|
| Dimensions (WxDxH): |
56 x 30.4 x 11.5 mm
|
| Remarks: |
IP67
|
| Delivered: |
Including screwdriver, CR 2032 battery, key for battery case
|
| Mass: |
20 g
|
